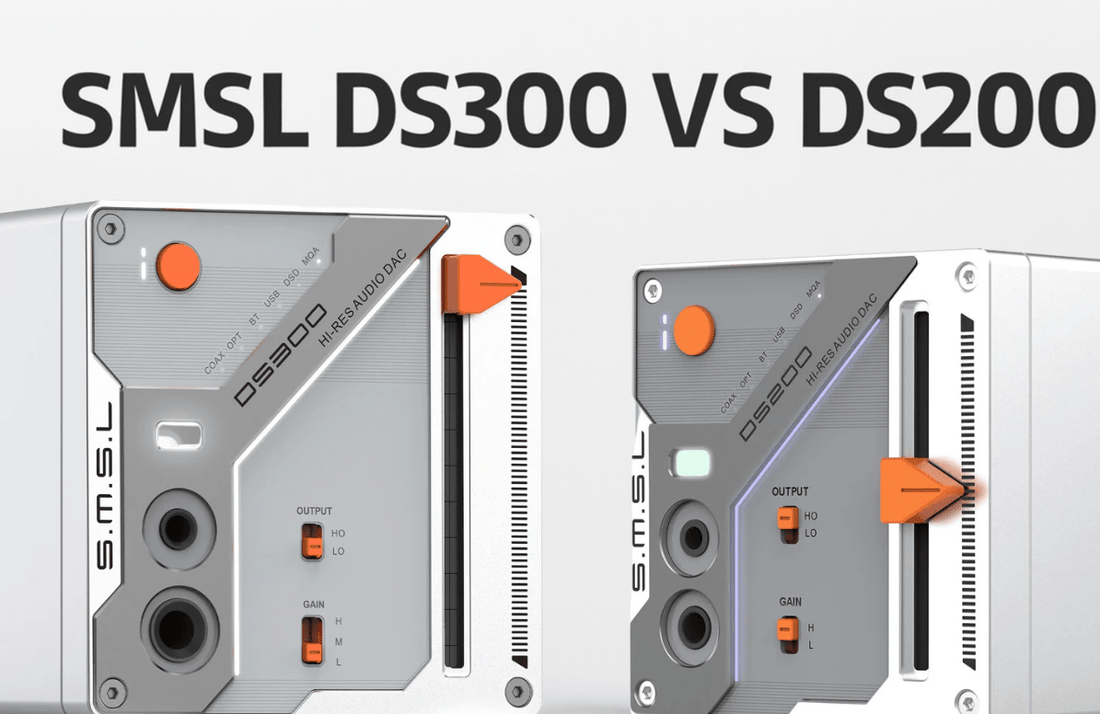

If you’re in the market for a high-resolution DAC and headphone amplifier, the SMSL DS300 and SMSL DS200 are both stellar choices. Both models deliver impressive sound quality, but there are key differences that cater to different audiophile needs and budgets. Below is a comparison of their features and specifications, helping you decide which one is the better fit for you.
Price:
- SMSL DS300 – $188
- SMSL DS200 – $129.99
The DS300 is a more premium product, offering advanced features like more output options, higher power output, and superior audio quality. Its higher price reflects its expanded capabilities. On the other hand, the DS200 is an excellent choice if you’re looking for a budget-friendly option that still delivers high-resolution audio.
Audio Performance:
-
DS300:
- THD+N (Total Harmonic Distortion plus Noise): 0.0000796% (-122.5dB)
- Dynamic Range/SNR: 129dB (XLR), 126dB (RCA), 125dB (Headphone Output)
- Output Level: 5Vrms (XLR), 2.5Vrms (RCA)
-
DS200:
- THD+N: 0.00019% (-114dB)
- Dynamic Range/SNR: 127dB
- Output Level: 2.0Vrms (Headphone Output)
The DS300 offers lower distortion and greater dynamic range, making it ideal for those looking for the highest-quality sound. The DS200 offers a great balance between price and performance, with excellent audio quality but not quite at the level of the DS300.
Connectivity:
-
DS300:
- Inputs: USB, Optical, Coaxial, Bluetooth 5.1
- Outputs: 6.35mm Headphone, 4.4mm Headphone, XLR, RCA
- USB Mode: Asynchronous
- Power Consumption: 25W
-
DS200:
- Inputs: USB, Optical, Coaxial, Bluetooth 5.1
- Outputs: 3.5mm Headphone, 4.4mm Headphone/Line Out
- USB Mode: Asynchronous
- Power Consumption: 3W
The DS300 is more versatile in terms of output options, with XLR and RCA outputs in addition to 6.35mm and 4.4mm headphone outputs. The DS200, while offering fewer output options, is still very capable and more compact in design, consuming much less power.
Headphone Amplifier and Gain Settings:
-
DS300:
- Headphone Amplifier Power: 600Ω (85mW), 160Ω (350mW), 32Ω (170mW)
- Gain Settings: High (+9.5dB), Medium (0dB), Low (-3.3dB)
-
DS200:
- Headphone Amplifier Power: 600Ω (85mW)
- Gain Settings: Not Adjustable
The DS300 offers adjustable gain settings, providing you with the flexibility to tailor the output for your headphones' sensitivity. The DS200 is less customizable but still delivers excellent amplification for most headphones.
USB Compatibility:
-
DS300:
- USB Compatibility: Windows 7/8/8.1/10/11, Mac OS, Android, iOS, Linux (driverless)
- Sampling Rate (USB): PCM: 44.1–768kHz, DSD: 2.8224–22.5792MHz
-
DS200:
- USB Compatibility: Windows 7/8/8.1/10/11, Mac OS, Android, iOS, Linux (driverless)
- Sampling Rate (USB): PCM: 44.1–768kHz, DSD: 2.8224–11.2895MHz
Both models support high sample rates and are compatible with a wide range of operating systems, making them versatile for different setups.
Design and Build:
-
DS300:
The DS300 has a larger build with breathing lights that respond to your music, adding a dynamic visual experience to your audio setup. It’s designed for those who want a more feature-rich device with a modern aesthetic. -
DS200:
The DS200 is more compact and simpler in design, but it still looks great on your desk. It offers fewer advanced features compared to the DS300 but is well-suited for audiophiles who prefer simplicity.
Which One Should You Choose?
- Choose the SMSL DS300 if you want higher output power, more flexibility with outputs, and adjustable headphone amplifier gain settings. It’s the perfect choice for those who want to invest in premium sound quality and modern aesthetics.
- Choose the SMSL DS200 if you’re looking for a budget-friendly solution that still delivers high-resolution audio. It’s an excellent option for those who don’t need the extra features of the DS300 but still want top-tier performance at a lower price.
Conclusion:
If you're ready to take your audio experience to the next level, both the SMSL DS300 and DS200 are excellent choices, depending on your needs and budget. The DS300 offers more features, power, and versatility, while the DS200 provides exceptional value for money with superb sound quality at a lower price.
- SMSL DS300 – $188
- SMSL DS200 – $129.99
Head over to The HiFi Cat to purchase your SMSL DS300 or SMSL DS200 today!
This comparison will help your customers make a more informed choice between the two products, depending on their audio needs and budget.
