Discrete R-2R architecture. Femtosecond clock. DSD512. Under $360.
The R-2R Price Problem — Until Now
R-2R ladder DACs have long been the holy grail of digital audio. The resistor-ladder conversion topology is beloved for its natural timbre, organic texture, and the way it renders micro-detail without the clinical edge that delta-sigma designs can sometimes exhibit.
The problem? Genuine discrete R-2R DACs have historically cost a fortune.
The Gustard / Audalytic DR70 changes that equation. At $359.99, it delivers the same proprietary discrete R-2R module, FPGA logic, and femtosecond-grade CK-01 clock as its more expensive sibling — the DR70n — at a price that makes R-2R accessible to a much wider audience.

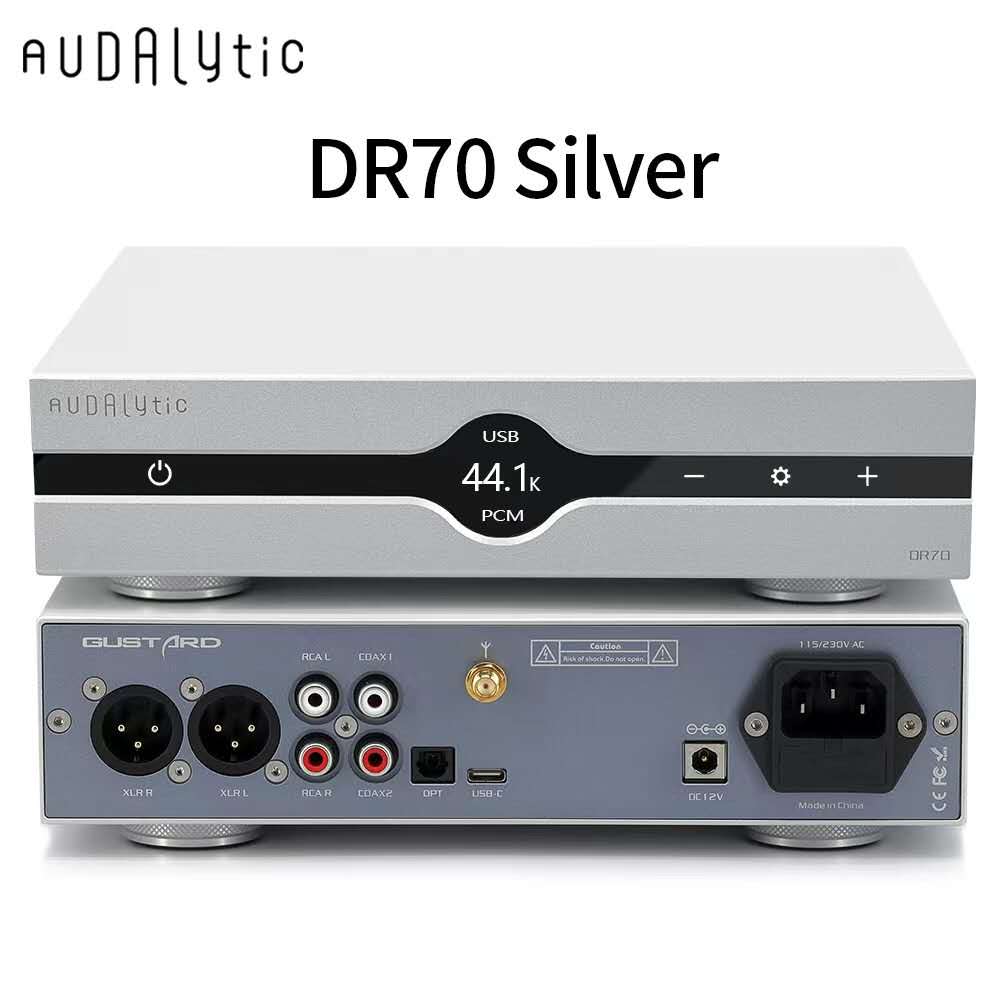

What Is the DR70, Exactly?
The DR70 is a streaming DAC built around a 25-bit complementary discrete R-2R ladder module. It's not a chip-based DAC with an R-2R marketing label — it's the real thing: individual precision resistors arranged in a ladder network, controlled by custom FPGA logic.
It supports:
- PCM up to 768 kHz / 32-bit via USB
- Native DSD512 via USB (true 1-bit path, no PCM conversion)
- Coaxial & Optical up to PCM 192 kHz / DSD DoP64
- Bluetooth 5.0 with LDAC (24-bit/96 kHz), aptX, AAC, SBC
The DR70 is the streamlined version of the DR70n — it omits the LAN network port and TF card slot to keep costs down. If you don't need Roon Bridge, AirPlay, or UPnP network streaming, you're not giving up anything that matters to you — and you're saving real money.
The Technology That Makes It Special
Proprietary Discrete R-2R Module
The 25-bit complementary R-2R ladder handles PCM conversion with a directness and naturalness that chip-based DACs struggle to replicate. The result is a presentation that feels less processed — more like analog.
True 1-bit DSD Converter
In DIRECT DSD mode, the bitstream feeds a dedicated 1-bit switching array without any PCM conversion step. DSD64 through DSD512 are all supported natively. This is the correct way to play DSD — not DoP-only, not PCM-converted.
Femtosecond-Grade CK-01 Clock
The CK-01 is an ultra-low phase-noise master clock module. Lower jitter means better imaging, tighter focus, and a more stable soundstage. This is the same clock used in the DR70n — no compromise here.
FPGA Core
Custom FPGA logic handles clock management, digital shaping, DoP demux, and seamless PCM/DSD switching without pops or glitches. Three digital filter modes plus NOS (Non-Oversampling) give you flexibility to tune the presentation to your taste.
Measured Performance
The DR70 isn't just a "warm and musical" DAC that hides behind subjective praise. The measurements back it up:
| Metric | Result |
|---|---|
| Dynamic Range | > 111 dB |
| SNR | > 113 dB |
| THD+N | < 0.004% @ 1kHz |
| Channel Crosstalk | −125 dB @ 1kHz |
| Frequency Response | 20Hz–20kHz ±0.2 dB |
These are competitive numbers at any price point — exceptional at $359.99.
Inputs & Outputs
Digital Inputs:
- USB (XMOS XU316) — PCM 768kHz / DSD512
- Coaxial — PCM 192kHz / DSD DoP64
- Optical — PCM 192kHz / DSD DoP64
- Bluetooth 5.0 — LDAC, aptX, AAC, SBC
Analog Outputs (simultaneous):
- RCA: 2 Vrms fixed
- XLR Balanced: 4 Vrms fixed
Both outputs are active simultaneously — connect your headphone amp and powered speakers at the same time without a splitter.
DR70 vs DR70n: Which One Do You Need?
| Feature | DR70 | DR70n |
|---|---|---|
| R-2R Module | ✅ Same | ✅ Same |
| FPGA & CK-01 Clock | ✅ Same | ✅ Same |
| USB / Coax / Optical / BT | ✅ | ✅ |
| LAN (Roon Bridge, AirPlay, UPnP, NAA) | ❌ | ✅ |
| TF Card Slot | ❌ | ✅ |
| Price | $359.99 | Higher |
Choose the DR70 if: You stream via USB from a PC/Mac, use Bluetooth from your phone, or connect via S/PDIF — and you don't need network streaming.
Choose the DR70n if: You want Roon Bridge, AirPlay, or UPnP without a dedicated streaming device.
Who Is the DR70 For?
- Desktop audiophiles running USB from a PC or Mac to a headphone amp or integrated
- Bluetooth listeners who want LDAC quality from a proper R-2R DAC
- Budget-conscious R-2R seekers who've been priced out of the Denafrips / Holo / Musician tier
- Existing streamer owners (Raspberry Pi, WiiM, Bluesound Node) who want to upgrade the DAC stage without paying for a second streaming module
- DSD enthusiasts who want native DSD512 without PCM conversion
System Pairing Suggestions
The DR70's simultaneous RCA + XLR outputs make it extremely flexible:
- Headphone amp pairing: Topping A90D, Gustard H26 Pro, Burson Soloist 3X GT — the balanced 4 Vrms output gives you plenty of drive
- Integrated amp pairing: Connect via RCA to any integrated with a line-level input
- Powered speakers: Direct to active monitors via RCA for a clean two-box desktop system
Final Verdict
Storage prices have gone up. Streaming module costs have gone up. The DR70 is Gustard and Audalytic's answer: strip the network streaming hardware, keep everything that defines the sound, and pass the savings to you.
At $359.99, the DR70 offers genuine discrete R-2R architecture, native DSD512, a femtosecond clock, and balanced outputs — a combination that would have cost twice as much just a few years ago.
If you want R-2R sound without R-2R prices, this is the one.
