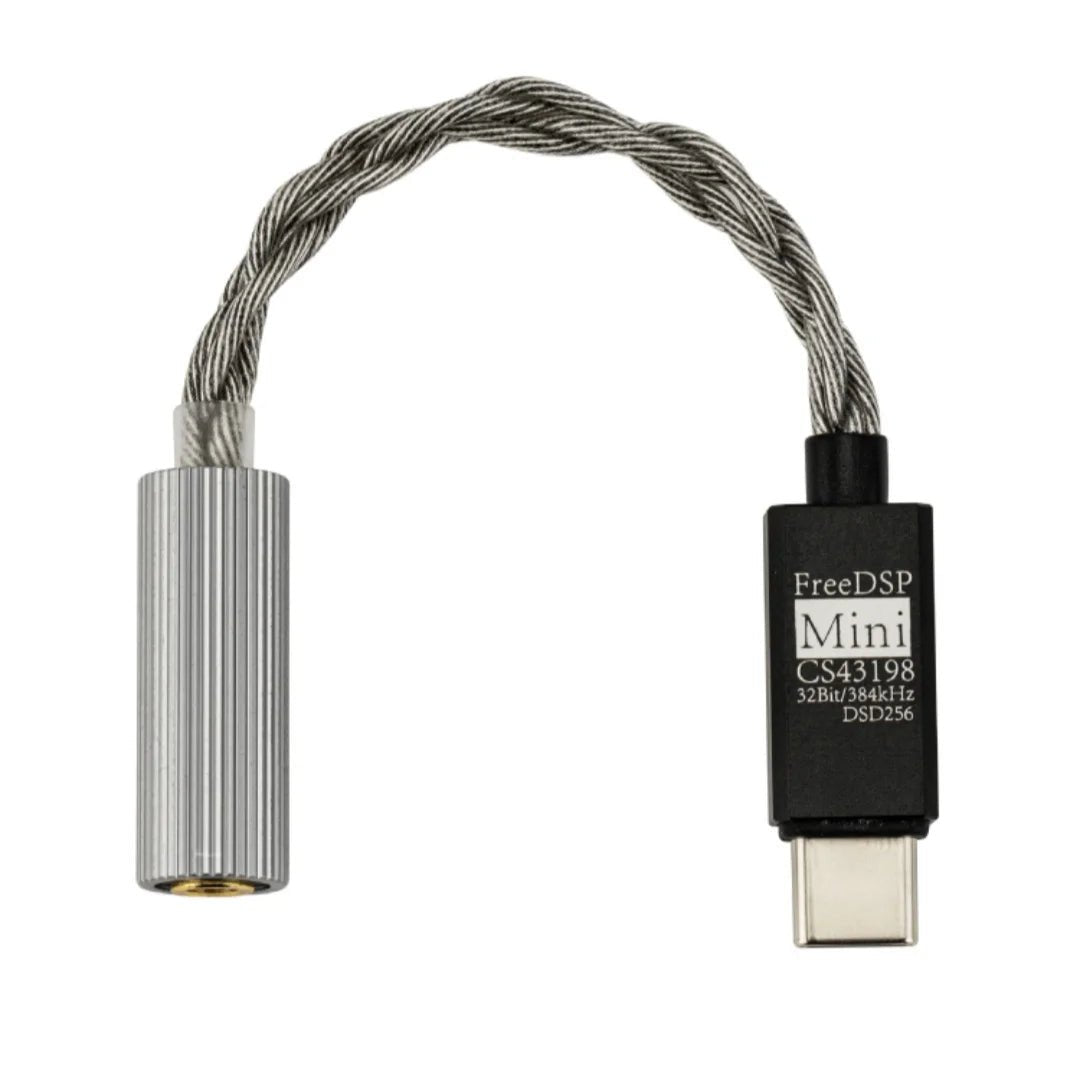

MOONDROP FreeDSP Mini Portable HiFi USB-C DAC & Amplifier – CS43198 Flagship Chip | DSP Tuning | Community Sharing

Key Features:

Flagship Cirrus Logic CS43198 DAC: Supports PCM up to 32-bit/384kHz and DSD256 decoding for reference-level HiFi audio.
127dB Dynamic Range & Ultra-Low Distortion: Achieves 0.00017% THD+N with high-output performance of 80mW+80mW @16Ω.
Second-Generation Online Interactive DSP: Professional web-based and Android app tuning with adjustable filter type, frequency point, gain, and Q value.
One-Button EQ Setting: Instantly apply preset or custom frequency curves without manual adjustments.
Built-in Tuning Community: Share and download EQ settings optimized for various headphones from other users.
Continuously Updated Frequency Response Library: Access original and target curves for precise sound customization.
CTIA Microphone Support: Compatible with inline mics for calls, streaming, gaming, and karaoke.
USB-C Wired Transmission: Driver-free connection to phones, tablets, and computers for lossless signal quality.

Advanced DSP & Tuning Experience:

The FreeDSP Mini’s second-gen DSP platform delivers precision tuning through both the MOONDROP Android app and a professional-grade web interface. Adjust advanced parameters, reference the vast headphone frequency database, or simply apply one-click EQ settings. The integrated tuning community lets you upload and download EQ profiles, enabling collaborative sound optimization for any listening style.

Technical Specifications:

Product Model	MOONDROP FreeDSP Mini
Product Type	Portable HiFi DAC & Amplifier
DAC Chip	Cirrus Logic CS43198
Dynamic Range (A-wt)	127dB @ 1kHz
THD+N (A-wt)	0.00017% @ 1kHz
Output Amplitude	2Vrms @ 0dBFS
Output Power	80 mW + 80 mW @ 16Ω (THD+N < 1%)
Earphone Jack	3.5mm 4-pin (SE + MIC / CTIA)
Connection	USB-C, Driver-Free
Dimensions (with Packaging)	13 × 13 × 1.7 cm
Weight (with Packaging)	106 g

What’s in the Box:

MOONDROP FreeDSP Mini × 1
Guidance Card × 1
Certificate × 1
