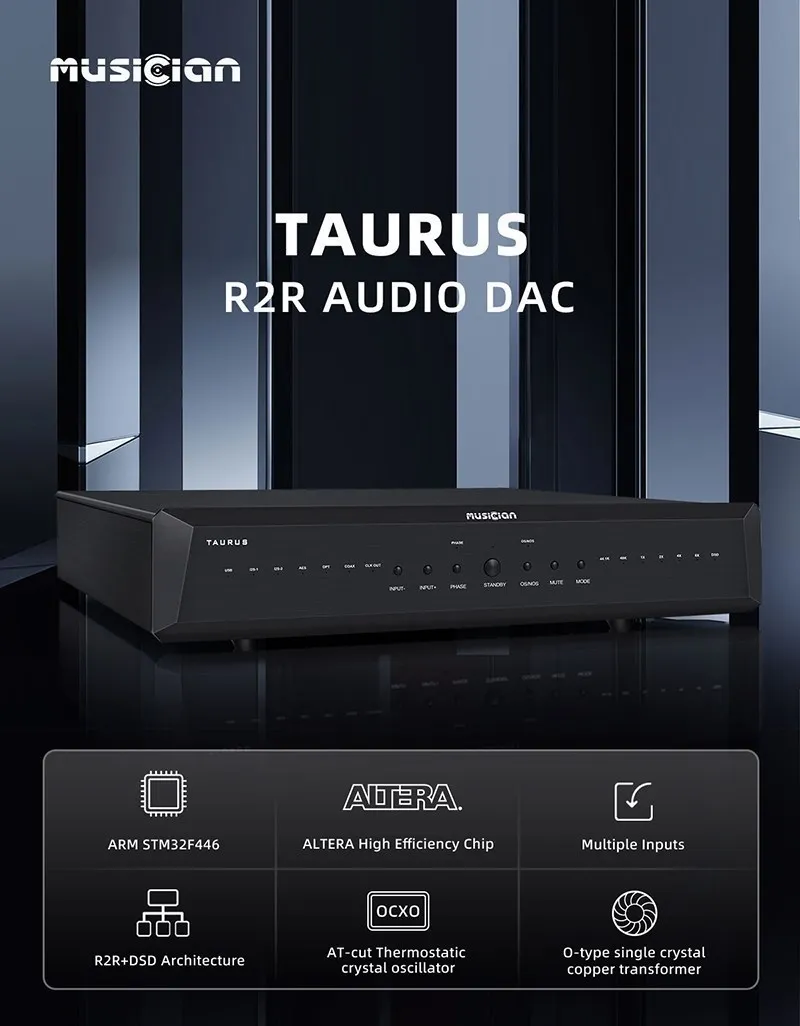

Musician TAURUS USB ARM STM32F446 ALTERA High Efficiency Chip R2R DAC

Musician TAURUS USB ARM STM32F446 ALTERA High Efficiency Chip R2R DAC

Regular price $3,800.00 USD
Regular price $3,800.00 USD Sale price $3,800.00 USD
Save 0% Sold out
Shipping calculated at checkout.

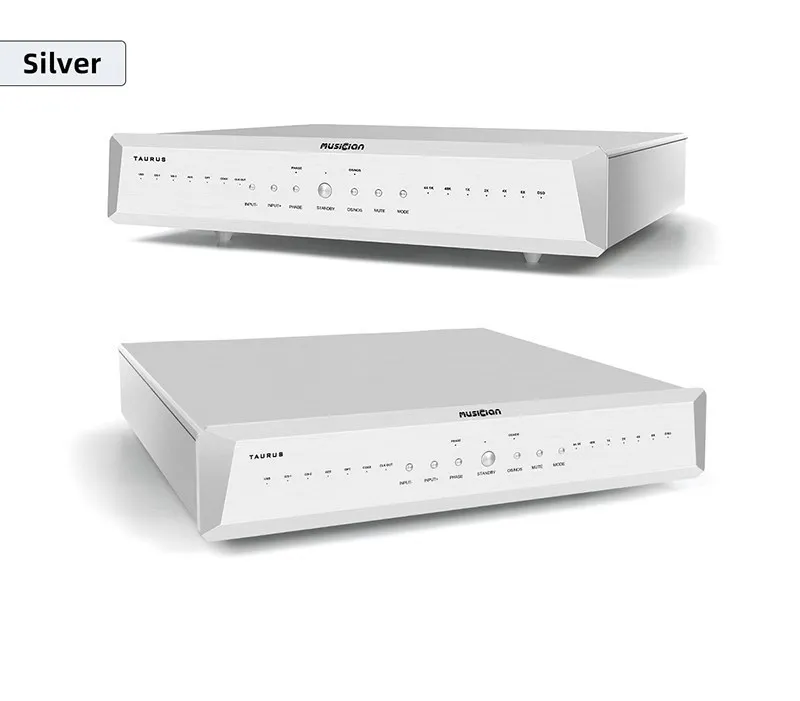

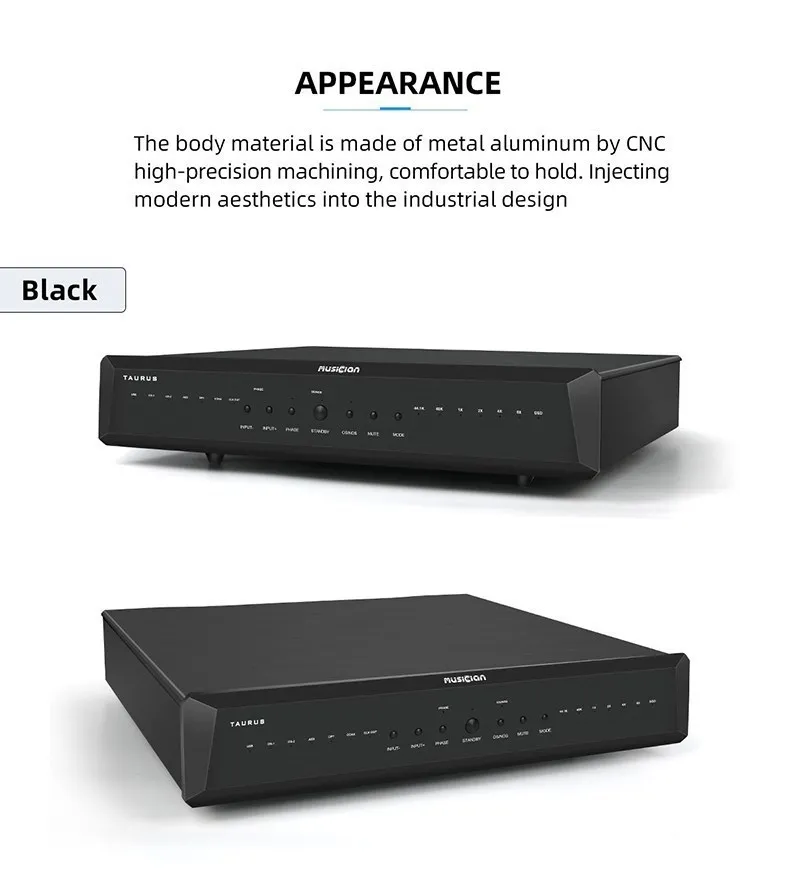

Color

Free Shipping to

Estimated delivery on

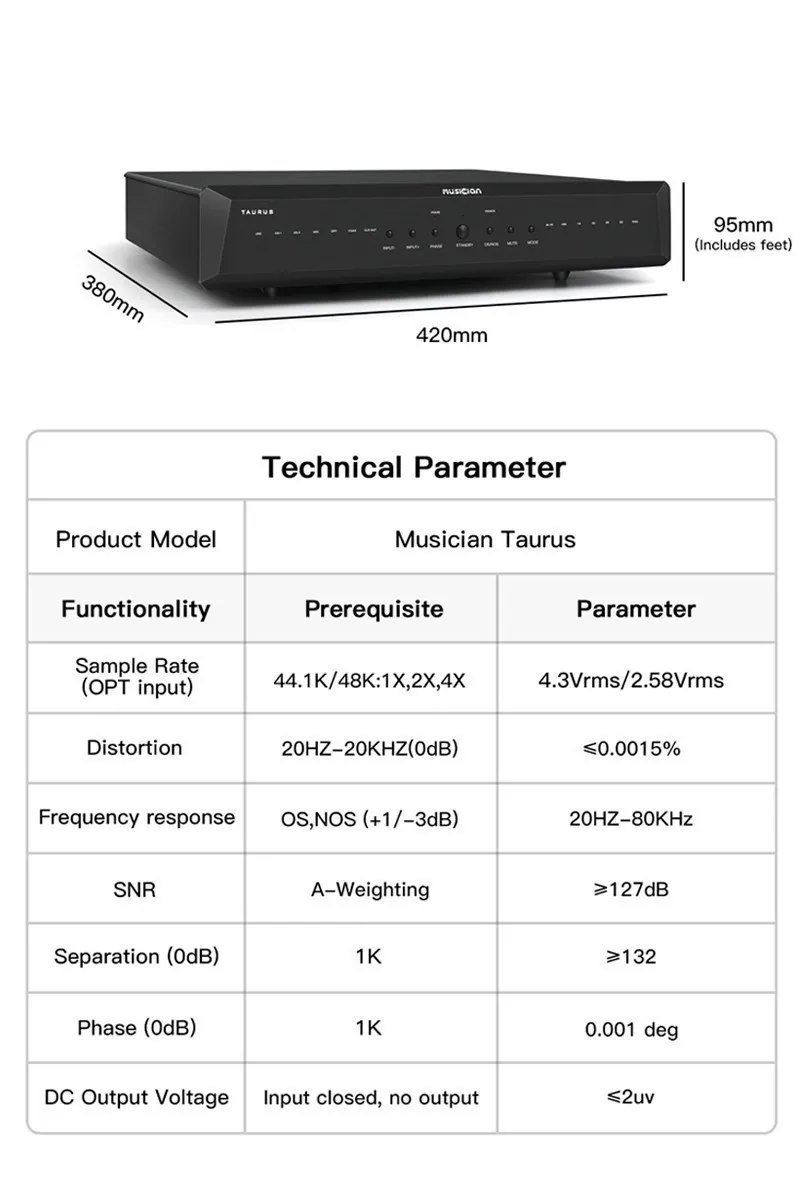

Specification

Product Model: Musician Taurus

Functionality:

Prerequisite:
Sample Rate (OPT input): 44.1K/48K - 1X, 2X, 4X
Distortion: 0dB 20Hz-20kHz
Frequency Response : OS, NOS(+1/-3dB)
SNR :A-Weighting
Separation (0dB):1K
Phase (0dB): 1K
DC Output Voltage :Input closed, no output

Parameter:
Sample Rate (OPT input): 4.3Vrms/2.58Vrms
Distortion: ≤0.0015%
Frequency Response: 20Hz-80kHz
SNR: ≥127dB
Separation (0dB): ≥132
Phase (0dB): 0.001 deg
DC Output Voltage: ≤2uv



Musician TAURUS R2R DAC

Experience exceptional audio quality with the Musician TAURUS R2R DAC, featuring a proprietary R2R+DSD architecture for true balanced 24Bit R2R and 6Bit DSD. The DAC incorporates advanced components, including an ALTERA high-efficiency chip, 0.005% precision resistors, low distortion, low noise power supply, and a FIFO buffer for optimal performance.

Technical Highlights

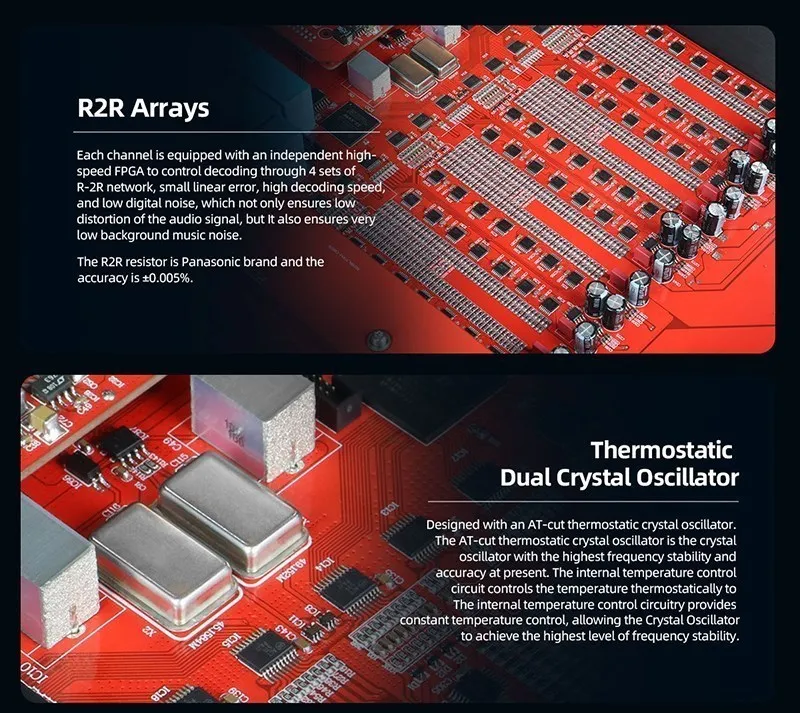

  • Independent high-speed FPGA for each channel controlling decoding through four sets of 0.005% R-2R networks.
  • Self-developed digital filter working in 16 X Over Sampling mode, enhancing dynamic contrast and analyzing power.
  • Dual crystal design for accurate reproduction of audio signals with reduced jitter and improved stability.
  • Chopper rectification power supply with customized MUSICIAN brand capacitors and O-type 250W iron core transformer.
  • Supports DSD1024 and PCM 1536KHz through USB and I2S inputs.

USB Audio Solution

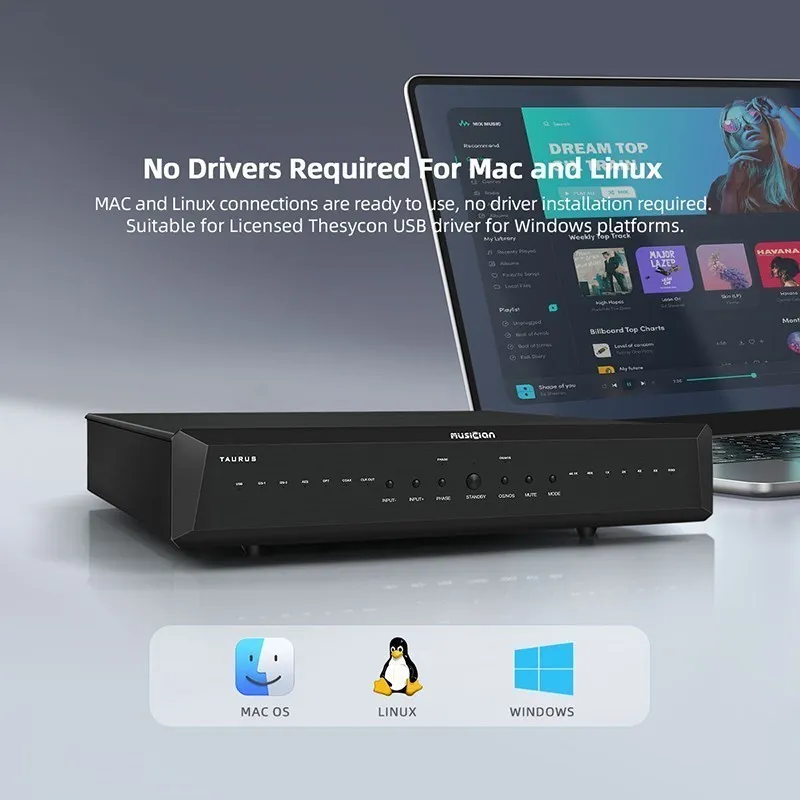

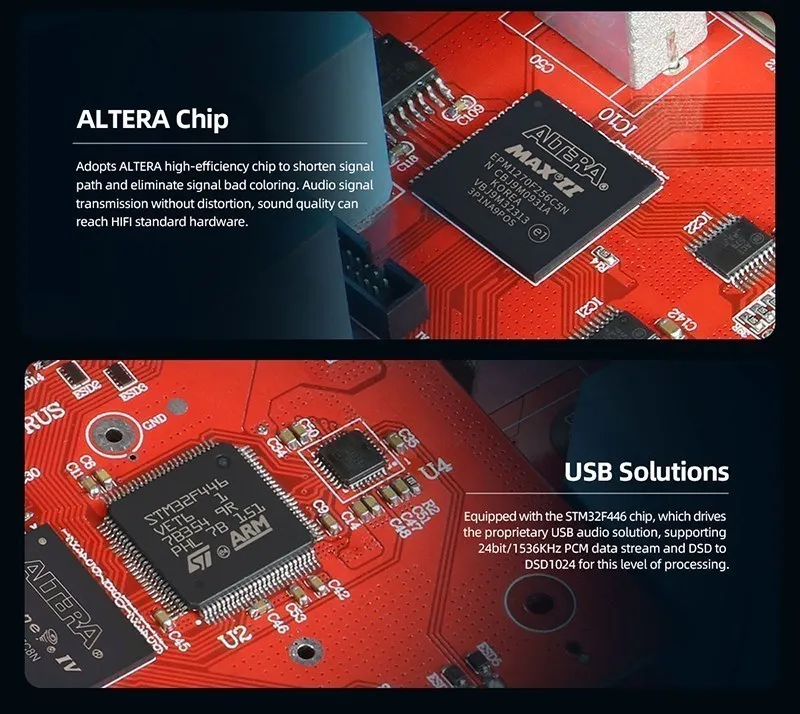

The TAURUS R2R DAC utilizes a proprietary USB audio solution based on the STM32 F46 Advanced ARM microcontroller. It is licensed with Sycon USB driver for Windows platforms, ensuring a seamless audio experience without the need for additional drivers on Mac and Linux.

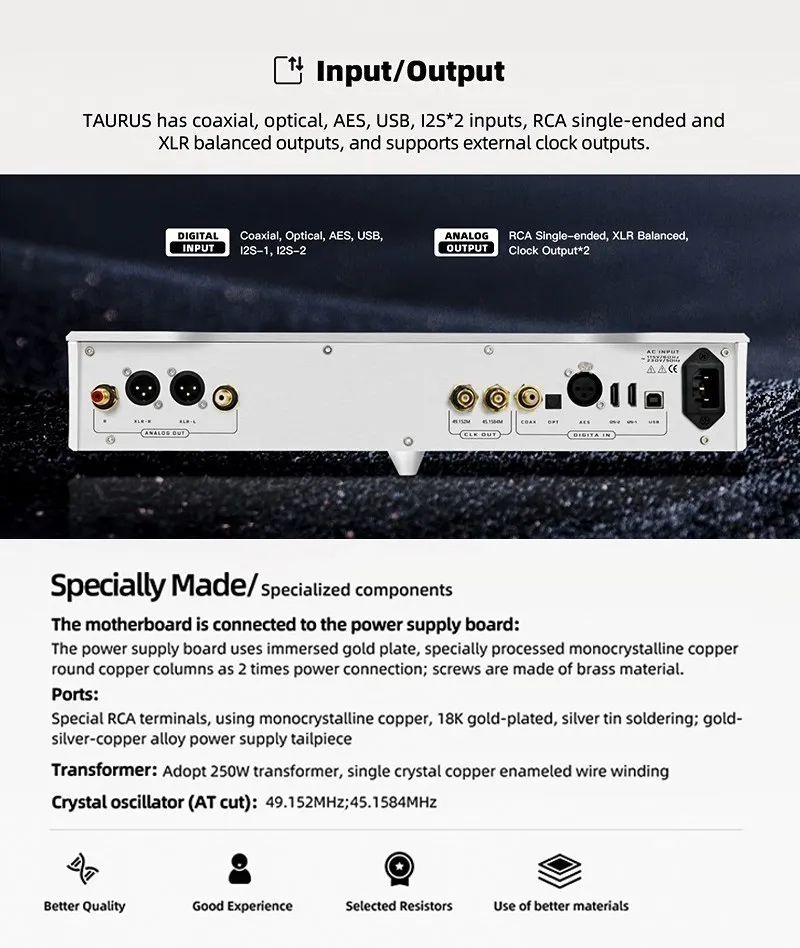

Input and Output

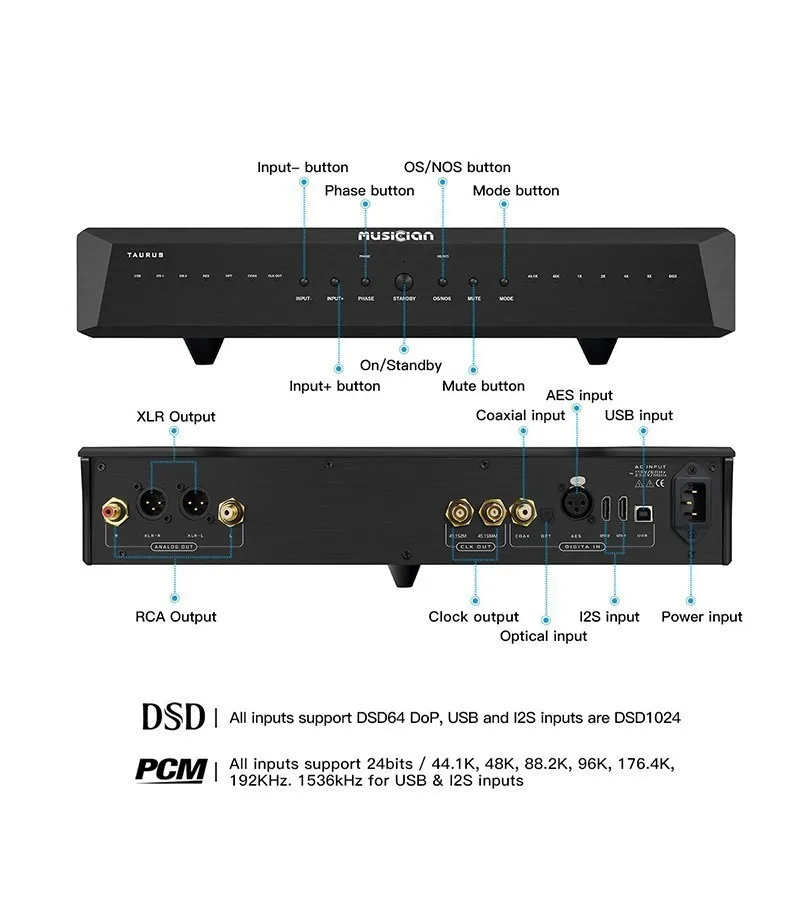

  • Digital Inputs: Coaxial, Optical, AES, USB, I2S-1, I2S-2.

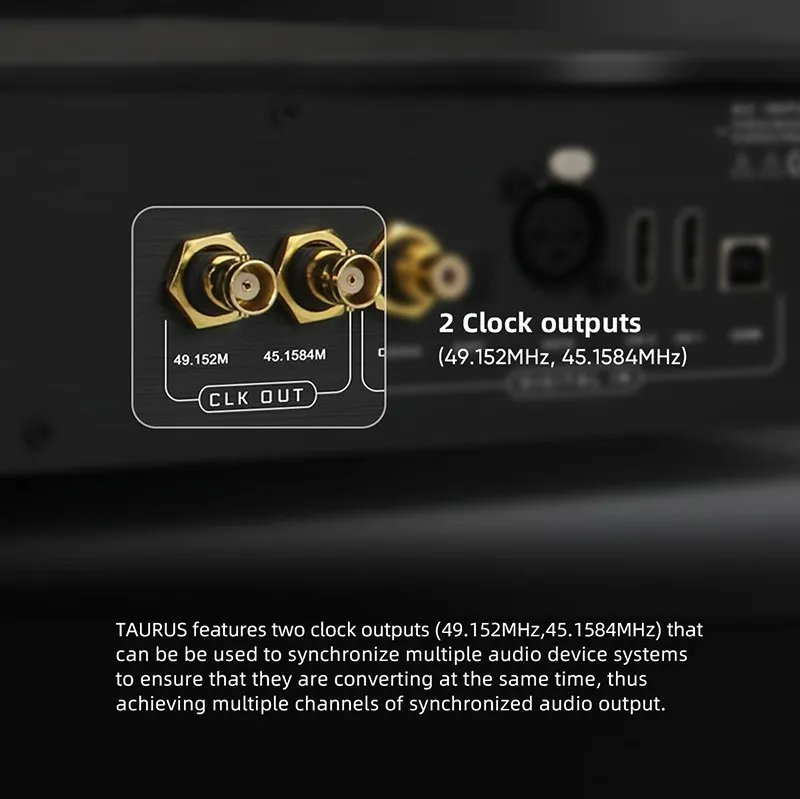

  • Clock Output: 45.1584MHz, 49.152MHz.
  • Analog Output: XLR balanced, RCA single-ended.

Note

Ensure proper use of the TAURUS RJ45/HDMI ports, which are purpose-built I²S ports and should not be connected to typical multimedia HDMI ports or Ethernet networks. The I2S wiring sequence can be selected and matched using the panel buttons.
