SHANLING H0 Protable Mini Desktop DAC AMP Headphone Amplifier CS43198

Name: SHANLING H0 Protable Mini Desktop DAC AMP Headphone Amplifier CS43198
Brand: SHANLING
SKU: 1005007960884601-black
Price: 17800.0 JPY
Availability: InStock

¥17,800 JPY

~~¥17,800 JPY~~ ¥17,800 JPY

Save 0% 売り切れ

配送料はチェックアウト時に計算されます。

Color black

商品バリエーション

数量

Free Shipping to

Estimated delivery on

Specification

SHANLING H0 Portable Mini Desktop DAC AMP Headphone Amplifier

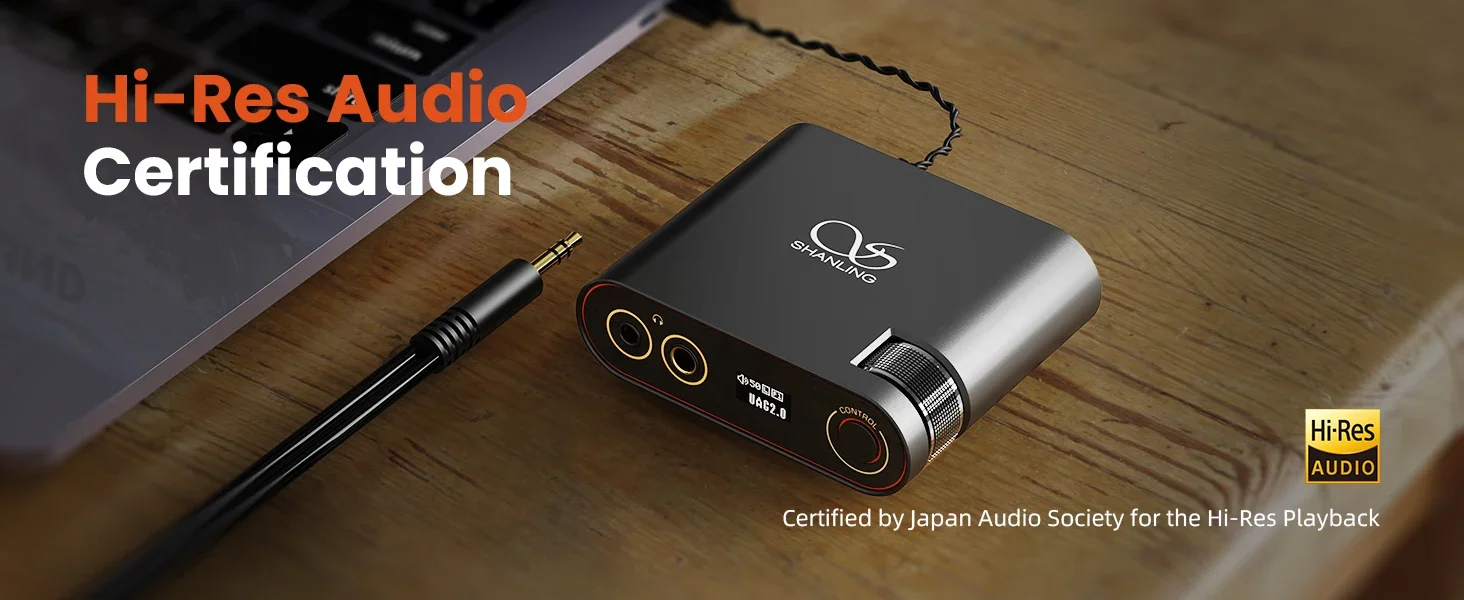

Hi-Res Audio DAC/AMP with Dual SGM8262 Op-Amps and CS43198 DAC

Description

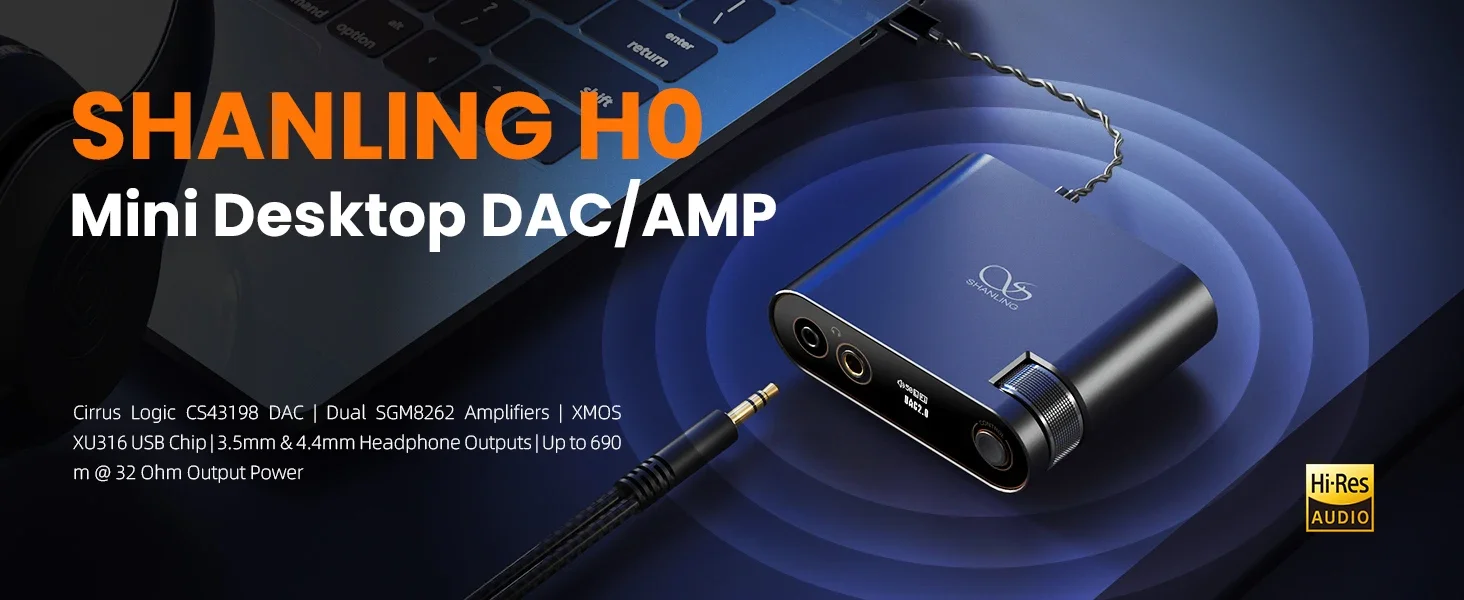

The SHANLING H0 is a compact and powerful desktop DAC and headphone amplifier, featuring the renowned Cirrus Logic CS43198 DAC and advanced dual SGM8262 op-amp configuration. With high-resolution audio support up to PCM768 and DSD256, it provides clear, immersive sound with exceptional detail and dynamic range. The H0’s versatile connectivity, balanced and unbalanced outputs, and compatibility with both mobile and desktop devices make it an ideal choice for audiophiles seeking a portable yet powerful audio solution.

Features

High-Performance DAC: Equipped with the Cirrus Logic CS43198 DAC for a dynamic range of up to 130dB and THD+N as low as 115dB, delivering exceptional sound quality with clarity and precision.

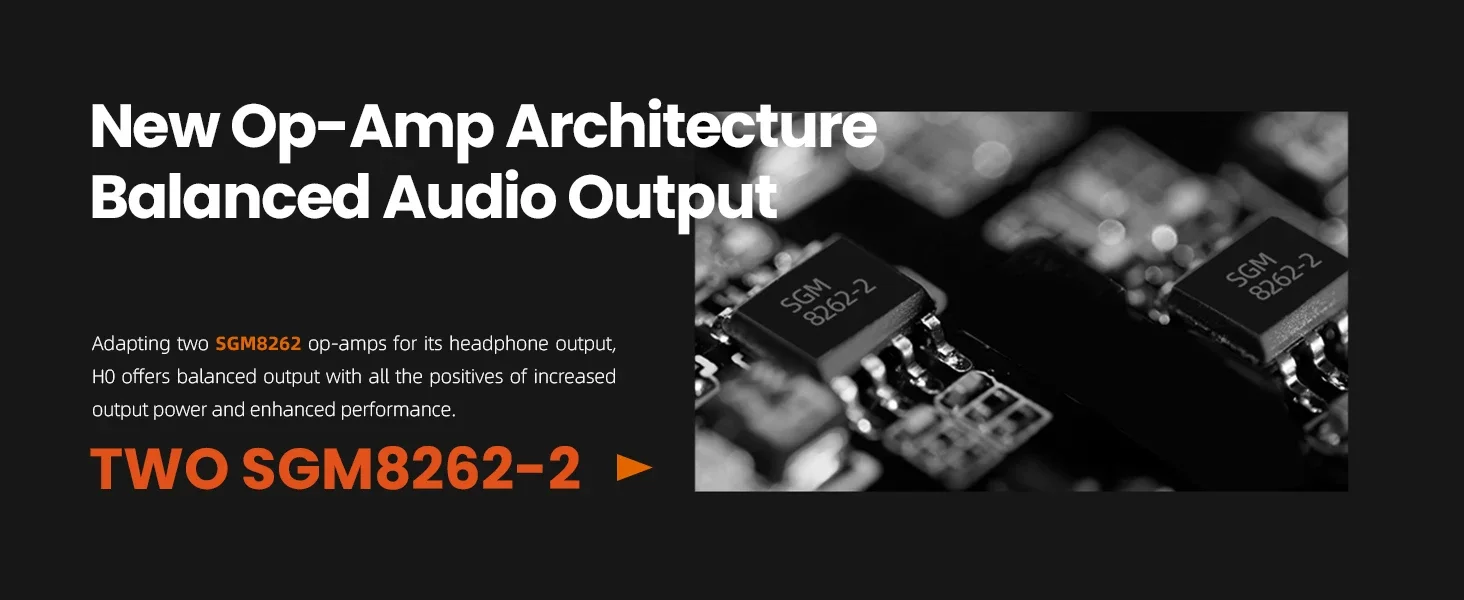

Advanced Dual Op-Amp Configuration: Features dual SGM8262-2 op-amps and Silmic II silk film capacitors for warm, rich audio with powerful bass, creating an immersive listening experience.

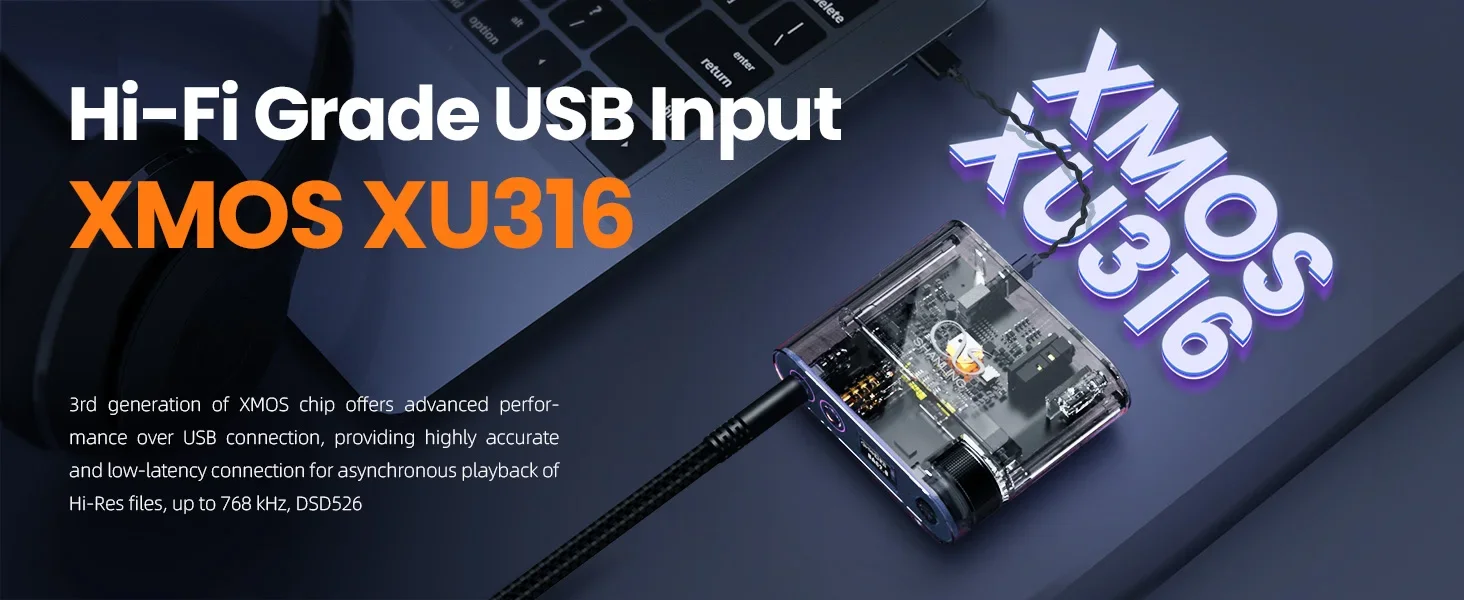

Hi-Fi Grade USB Input: Utilizes the advanced XMOS XU316 USB chip, supporting asynchronous audio playback up to PCM768kHz/32bit and DSD256 for high-fidelity audio streaming.

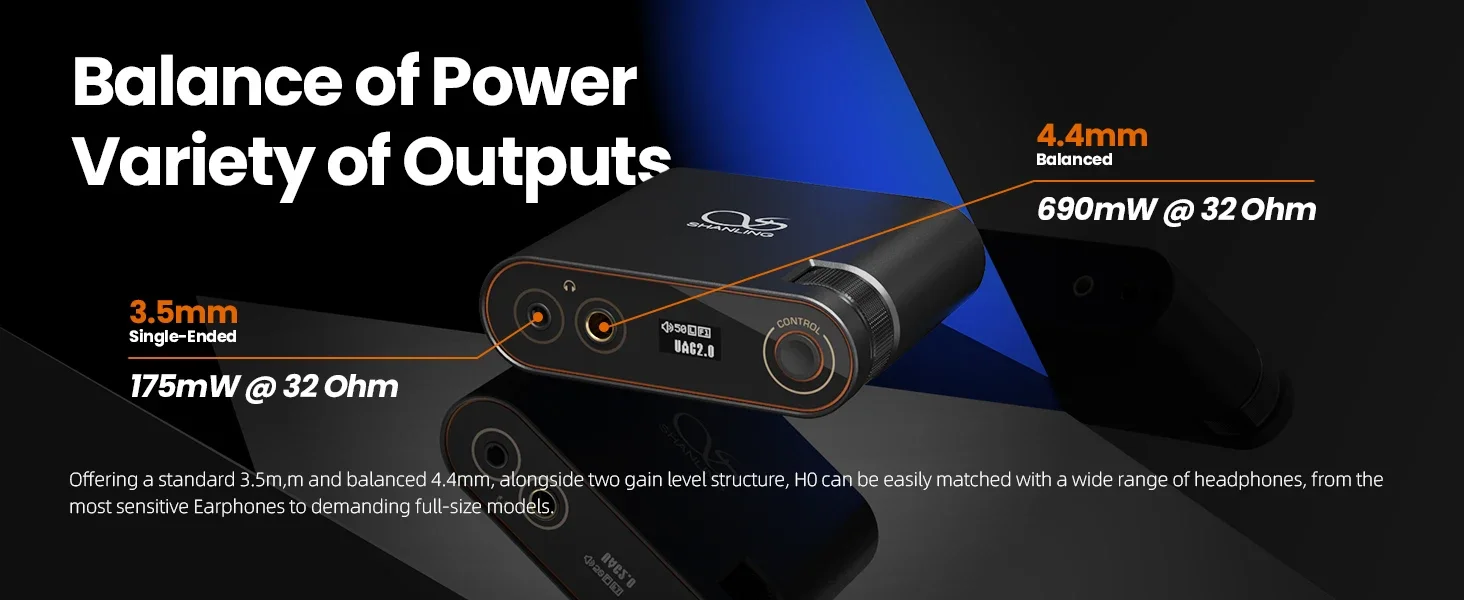

Balanced and Unbalanced Headphone Outputs: Offers 3.5mm single-ended and 4.4mm balanced outputs, with output power up to 690mW@32Ω, compatible with a range of headphones, including moving coil and balanced armature types.
Smartphone Integration and App Control: Connects directly to smartphones and is compatible with the Eddict Player app for customized audio settings, including filter selection, channel balance, and gain adjustment.

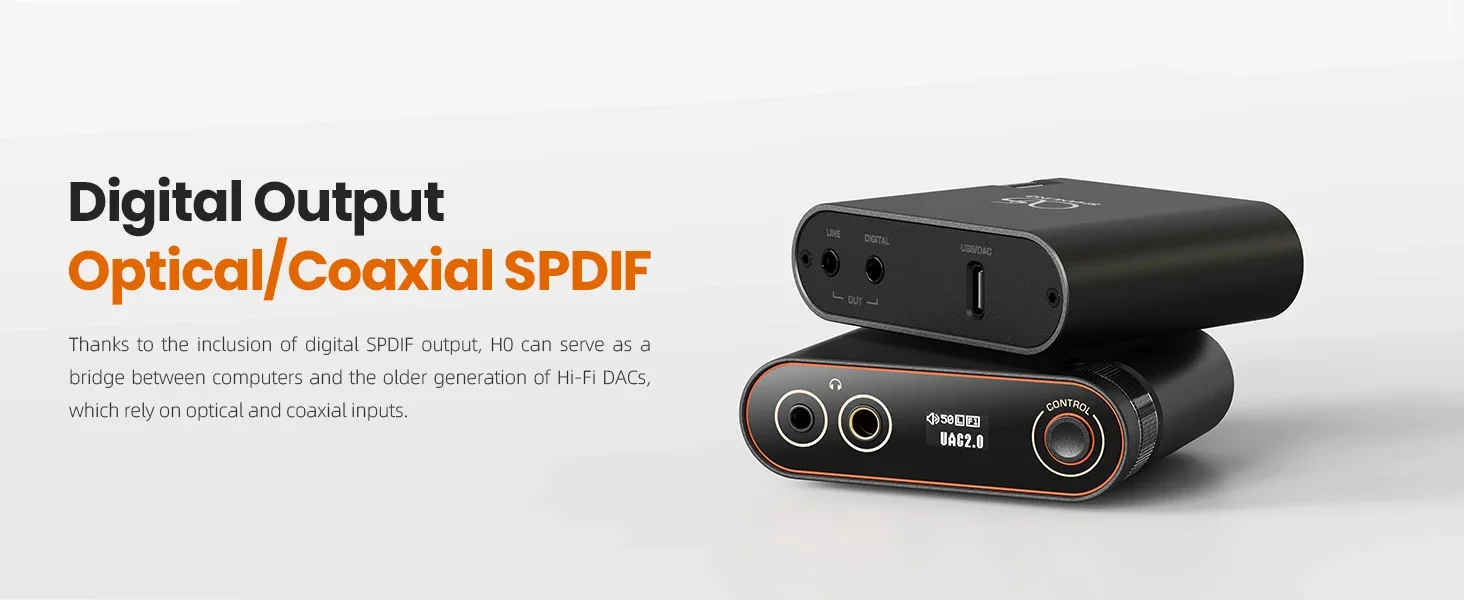

Comprehensive Output Options: Includes 3.5mm and 4.4mm headphone outputs, plus SPDIF (optical and coaxial) outputs for seamless connection with Hi-Fi equipment.

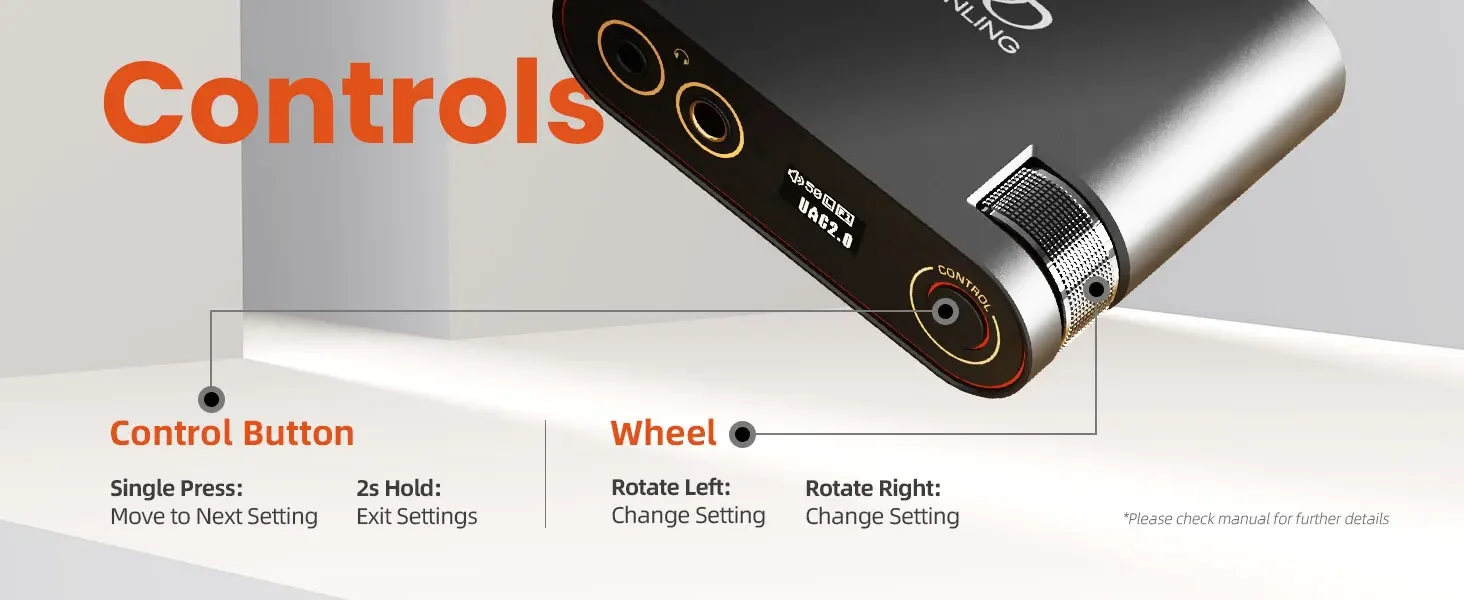

OLED Display and Scroll Wheel Control: A 0.49-inch OLED display and intuitive scroll wheel make navigation simple, offering quick access to settings and controls.
Gaming Console Compatibility: Supports UAC1.0 for easy integration with gaming consoles like Nintendo Switch and PS5, enhancing audio quality for a more immersive experience.

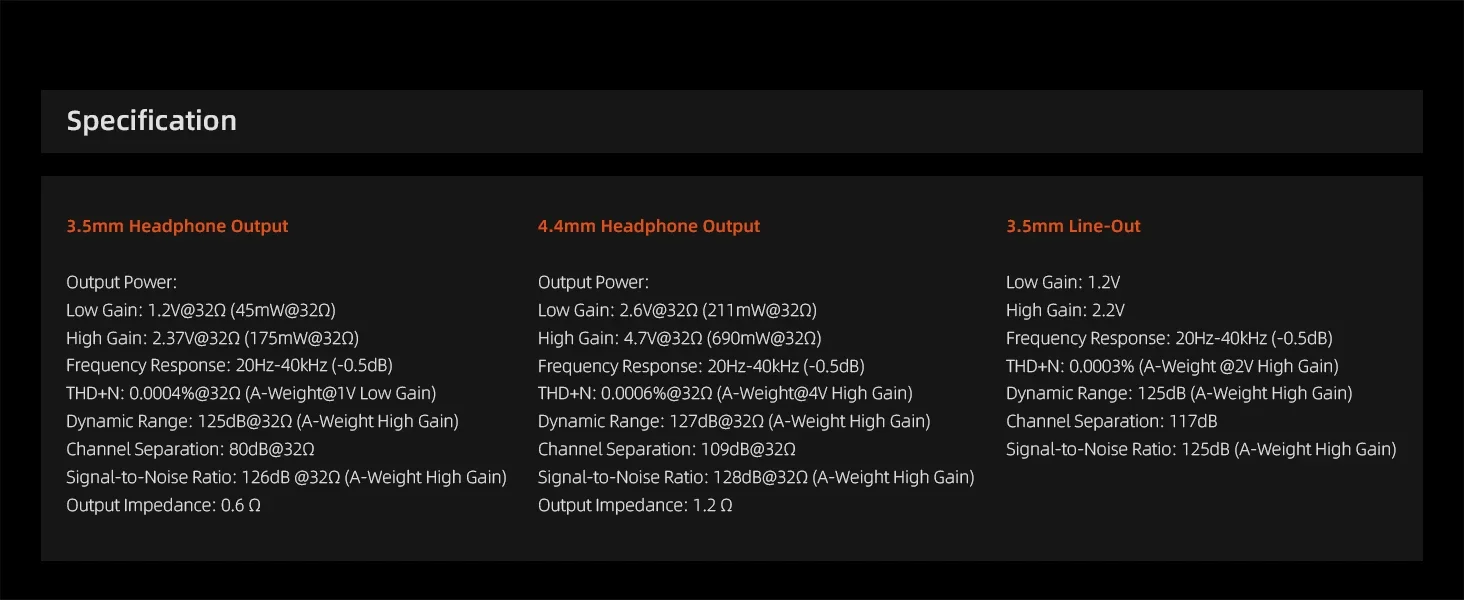

Specifications

DAC Chip: Cirrus Logic CS43198
USB Chip: XMOS XU316
Supported Formats: PCM768kHz/32bit, DSD256
Headphone Output Power (3.5mm): Low Gain: 1.2Vrms (45mW@32Ω), High Gain: 2.37Vrms (175mW@32Ω)
Headphone Output Power (4.4mm): Low Gain: 2.6Vrms (211mW@32Ω), High Gain: 4.7Vrms (690mW@32Ω)
Frequency Response: 20Hz-40kHz (±0.5dB)
THD+N: 0.0004% (32Ω, A-weighted, Low Gain)
Dynamic Range: 127dB (A-weighted, High Gain, 4.4mm)
Signal-to-Noise Ratio: 128dB (A-weighted, High Gain, 4.4mm)
Output Impedance: 12Ω

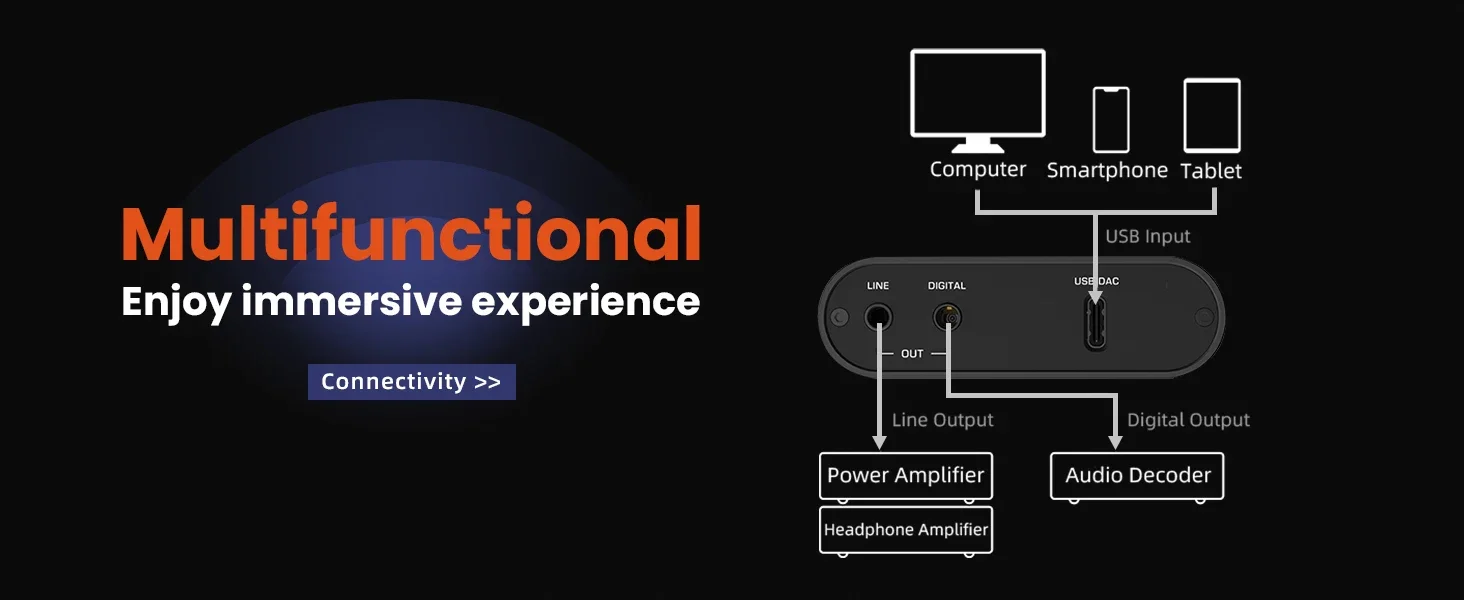

Connection Ports: USB-C (digital input), SPDIF (optical and coaxial), 3.5mm single-ended, 4.4mm balanced

About SHANLING H0

The SHANLING H0 is designed for versatility and high-quality audio performance. With its portable design, high-res audio capability, and compatibility with both desktop and mobile devices, it’s perfect for music, movies, and gaming. Tuned by Shanling’s expert team, the H0 delivers rich, detailed audio, making it an excellent addition to any setup for audiophiles and casual listeners alike.

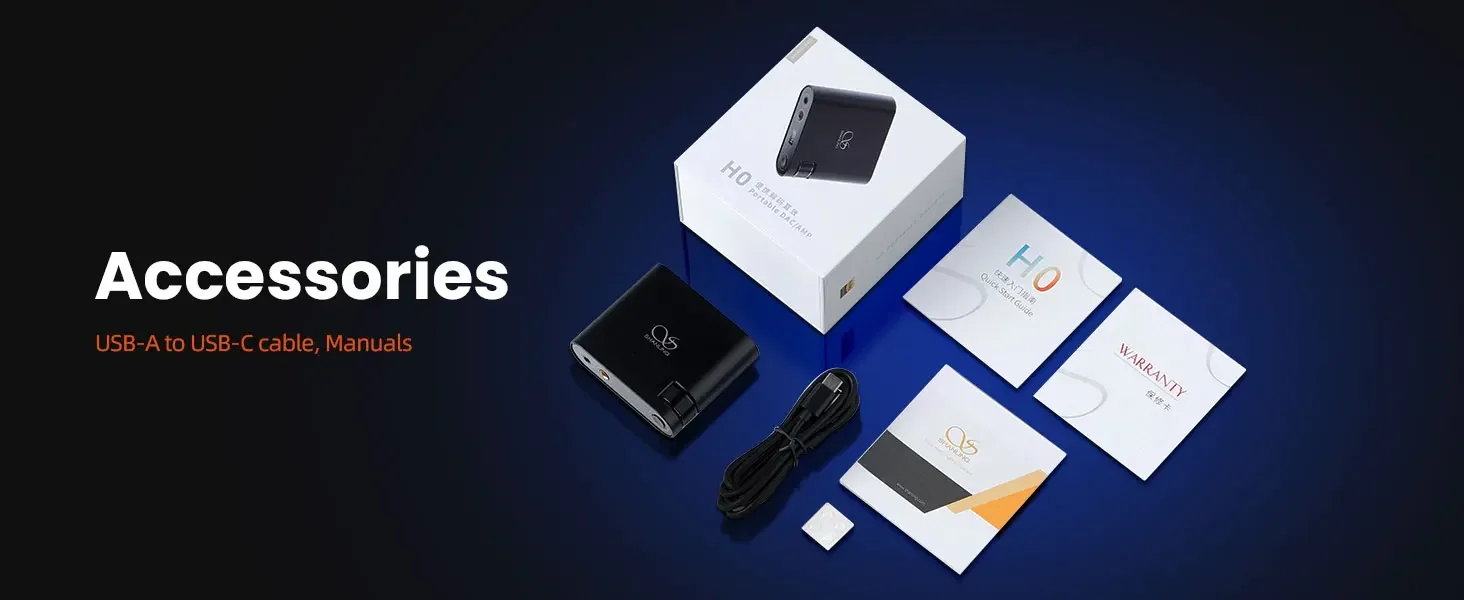

What's in the Box?
