Gustard/Audalytic DR70 R2R Streaming DAC

Gustard/Audalytic DR70 R2R Streaming DAC

Regular price $359.99 USD
Regular price $359.99 USD Sale price $359.99 USD
Save 0% Sold out
Shipping calculated at checkout.
Color

Shipping to

Estimated delivery on

Canada, Mexico, Romania, United States: import duty of 10 USD

Gustard / Audalytic DR70 — R2R Streaming DAC

Discrete R-2R purity, native 1-bit DSD, and core streaming inputs — focused on what matters most, at exceptional value.

The DR70 is the streamlined sibling of the DR70n, sharing the same proprietary discrete R-2R ladder DAC architecture, FPGA logic, and femtosecond-grade CK-01 clock. It delivers high-resolution playback up to PCM 768 kHz/32-bit and DSD512 via USB, with Coaxial, Optical, and Bluetooth 5.0 inputs. The DR70 simplifies the streaming module to focus on core DAC performance — the ideal choice for users who want R-2R quality without paying for features they don’t need.

Discrete R-2R PCM Native 1-bit DSD FPGA Clock & Logic CK-01 Femtosecond Clock XMOS XU316 USB PCM 768 • DSD512 Bluetooth 5.0 (LDAC/aptX) Simultaneous RCA & XLR LCD & Remote Control Included Low-Noise PSU + 9–18V DC In Full Aluminum Chassis High Value Pick

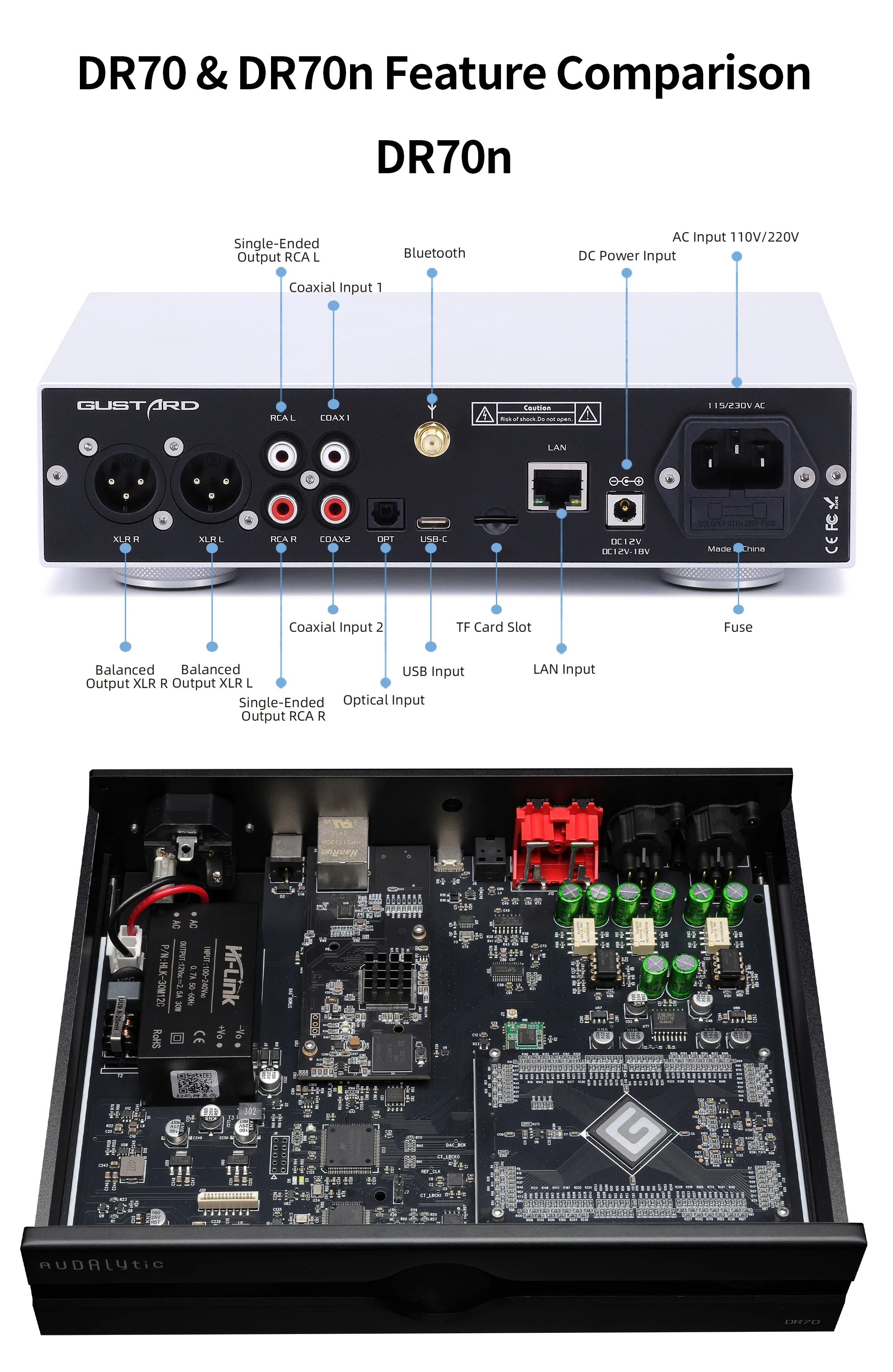

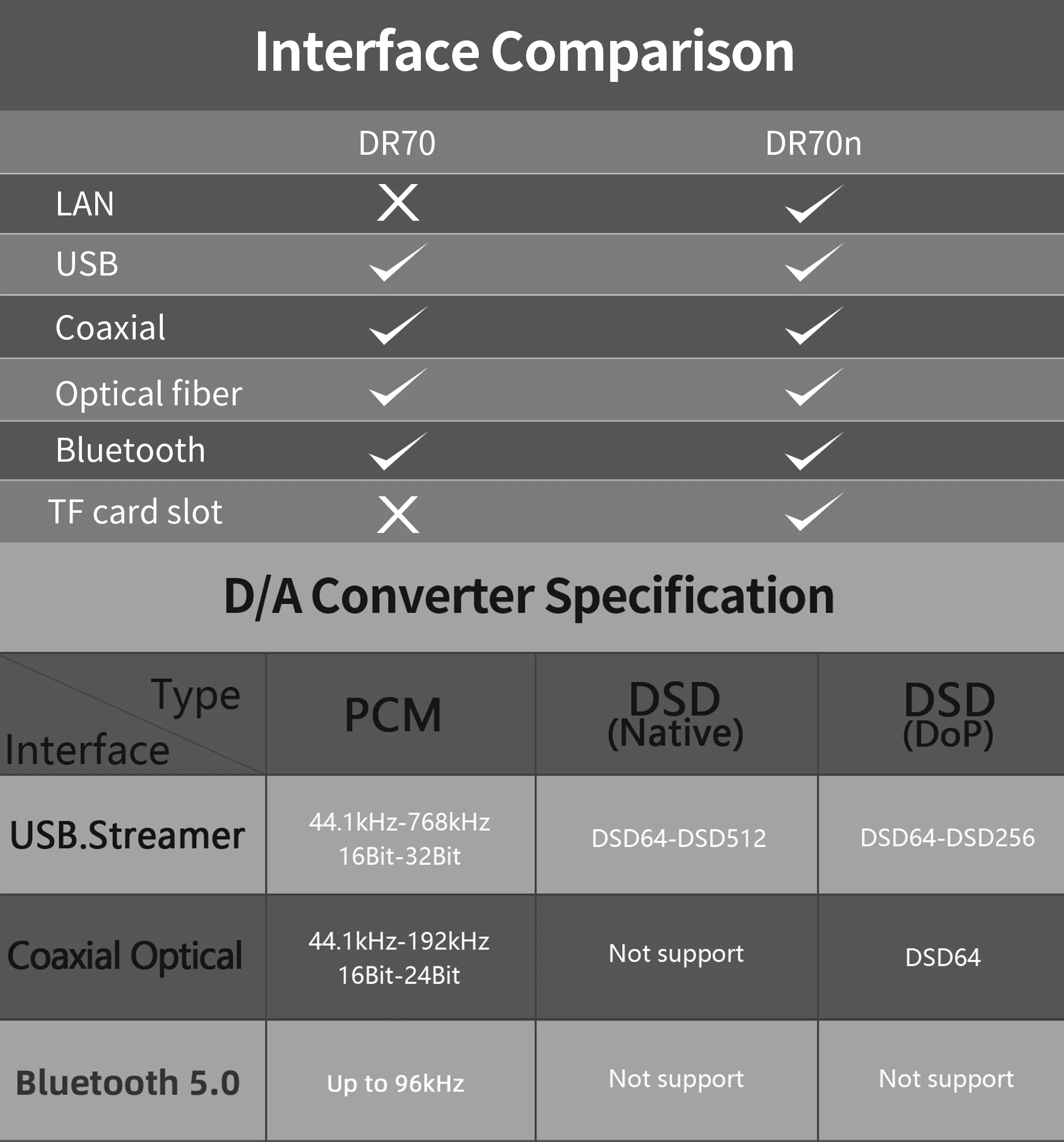

DR70 vs DR70n — Interface Comparison

Not sure which model is right for you? Here’s a quick breakdown:

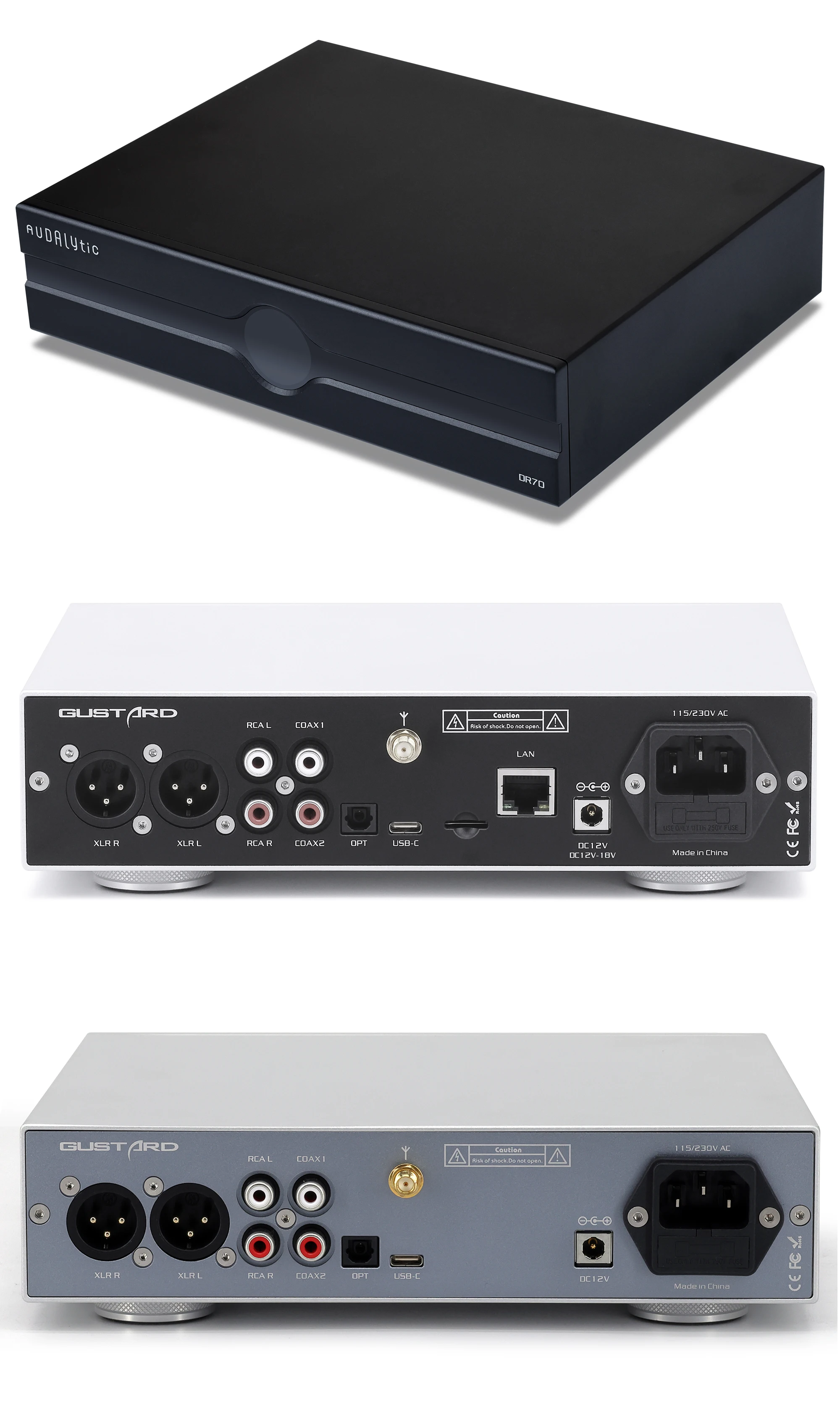

DR70 vs DR70n Interface Comparison

The DR70 omits the LAN network port and TF card slot found on the DR70n, making it a leaner, more focused DAC. If you stream via USB, Bluetooth, or S/PDIF and don’t need Roon Bridge / UPnP / NAA network streaming, the DR70 delivers the same R-2R sound quality at a lower price.

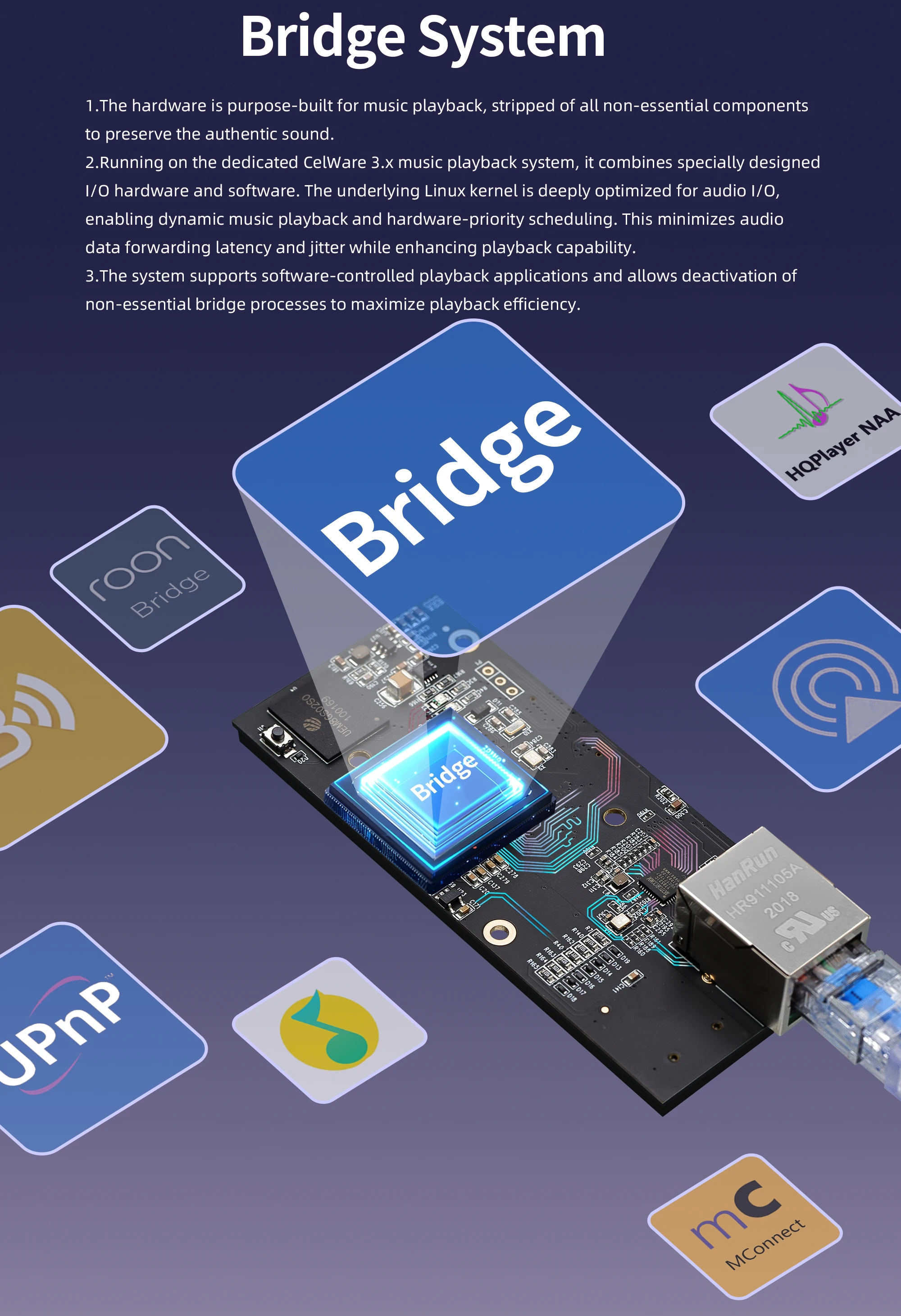

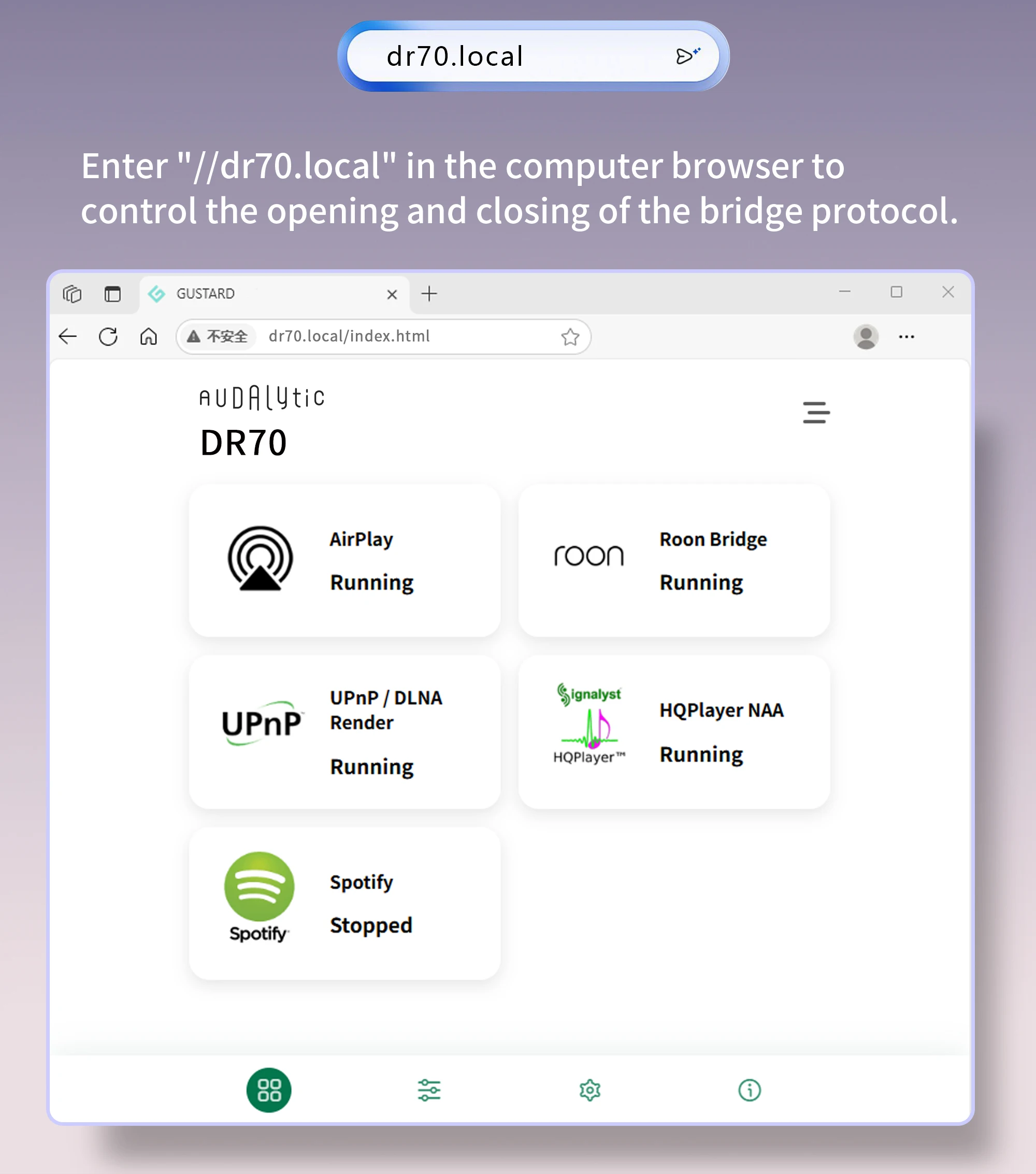

🔊 Want LAN streaming (Roon Bridge, AirPlay, UPnP, NAA) and TF card support? Check out the DR70n — the full-featured version.

Key Features

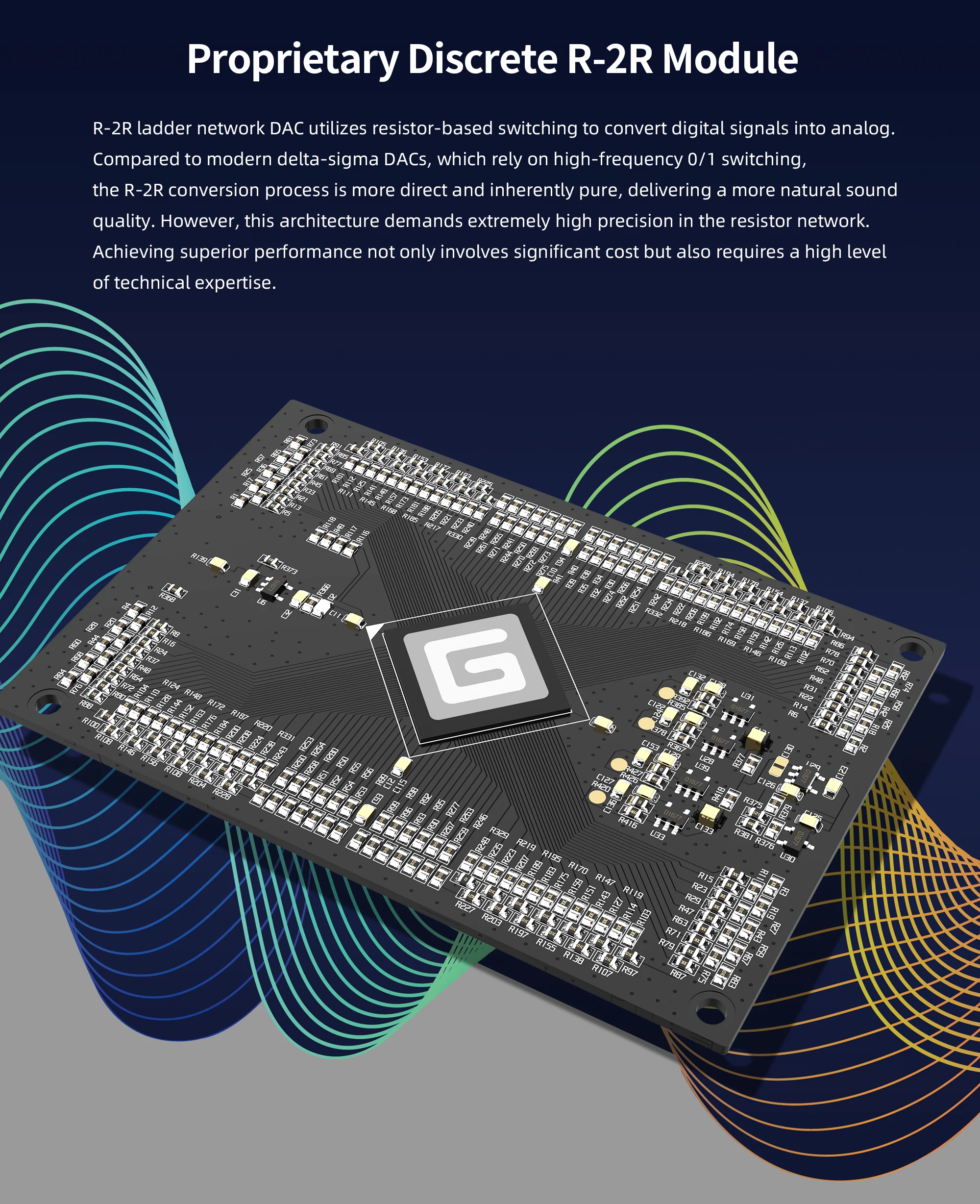

  • Proprietary Discrete R-2R Module (25-bit complementary): Resistor-based ladder conversion for PCM with direct, natural timbre and micro-detail.

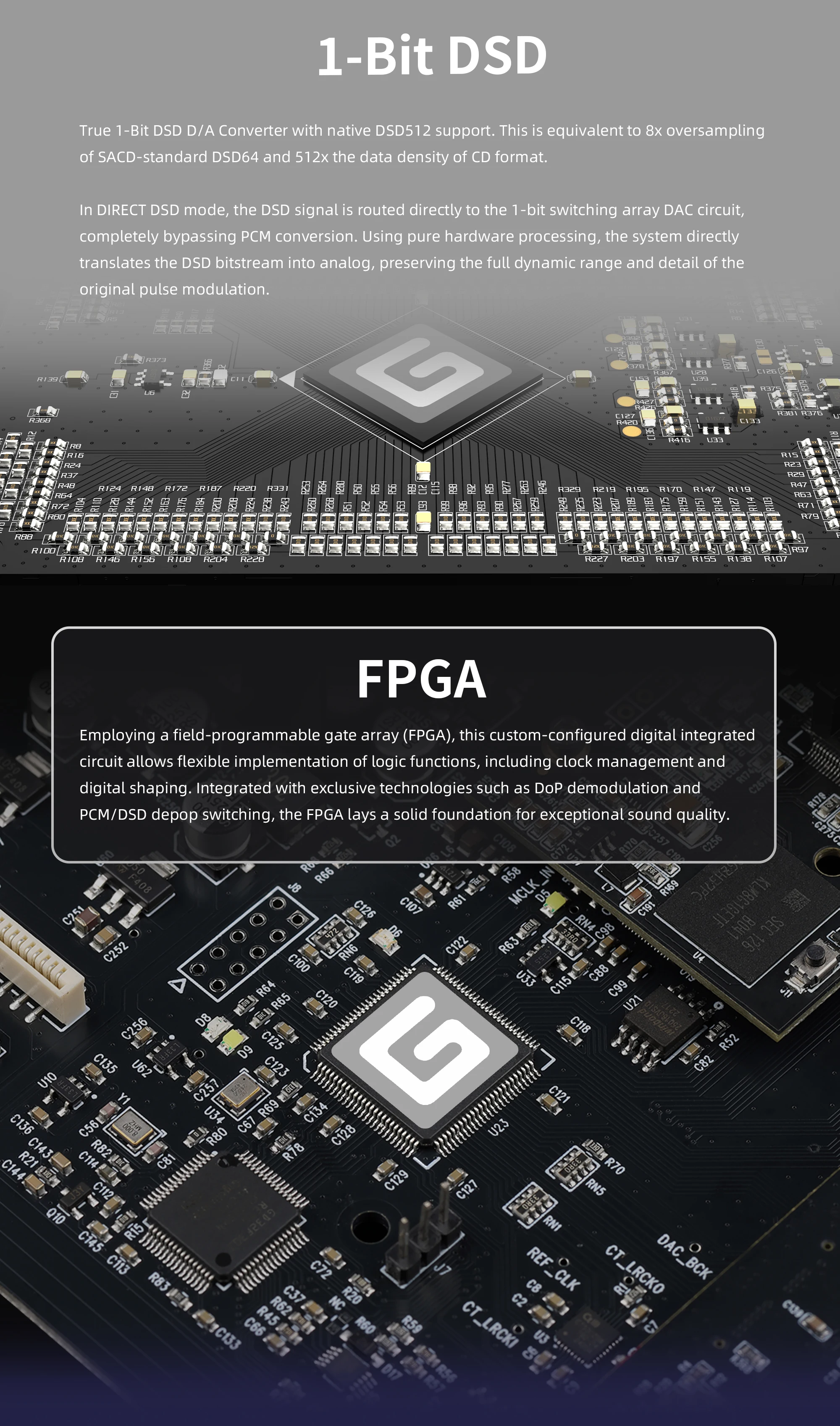

  • True 1-bit DSD Converter: Native DSD64–DSD512 path; in DIRECT DSD mode the bitstream feeds the 1-bit switching array without PCM conversion.
  • FPGA Core: Custom logic for clock management, digital shaping, DoP demux, and seamless PCM/DSD depop switching.

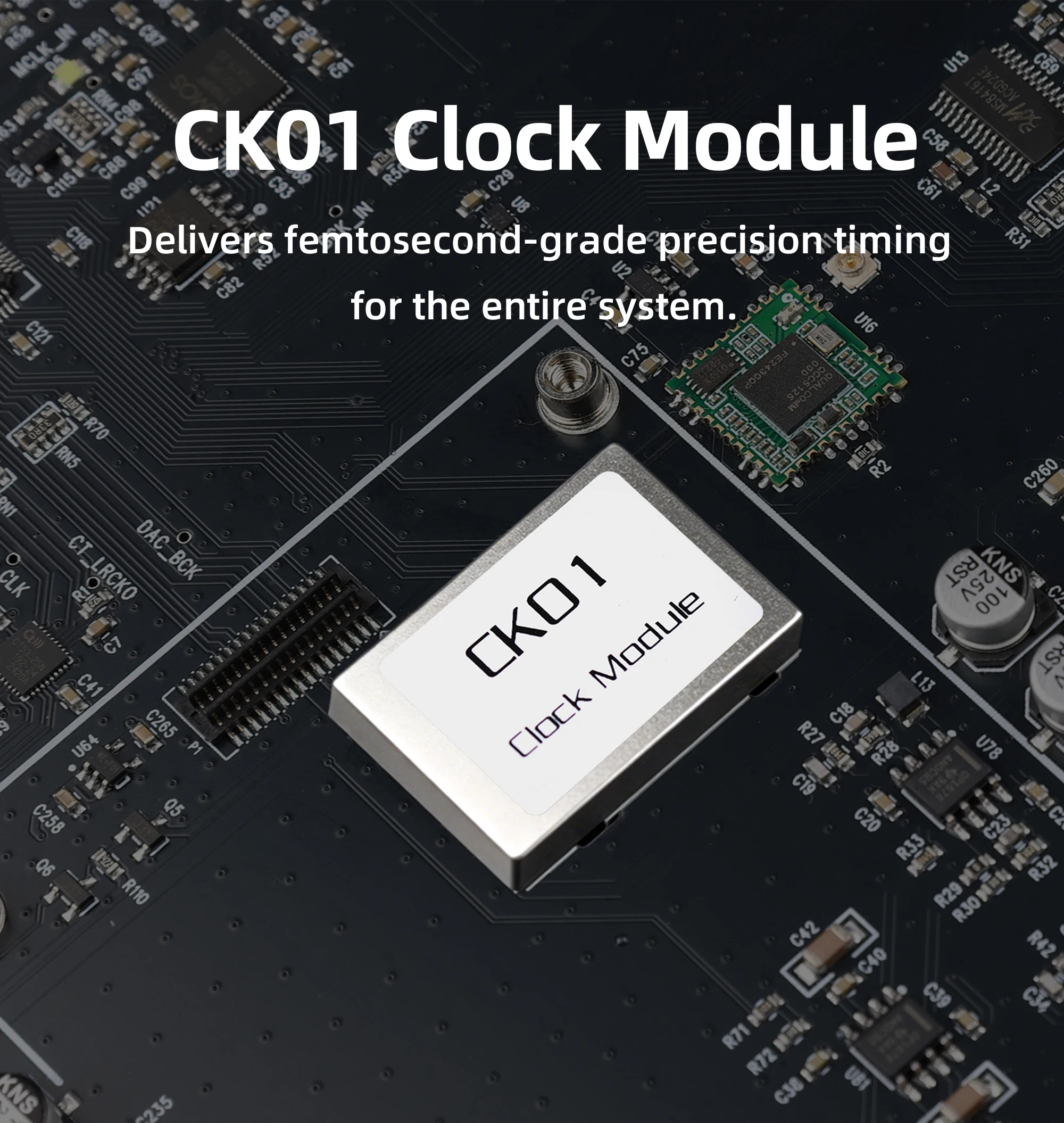

  • Femtosecond-grade CK-01 Clock: Ultra-low phase-noise master clock reduces jitter for improved imaging and focus.
  • Three Digital Filters + NOS: Choose classic OS filters or NOS for minimal preprocessing; supports DSD passthrough.

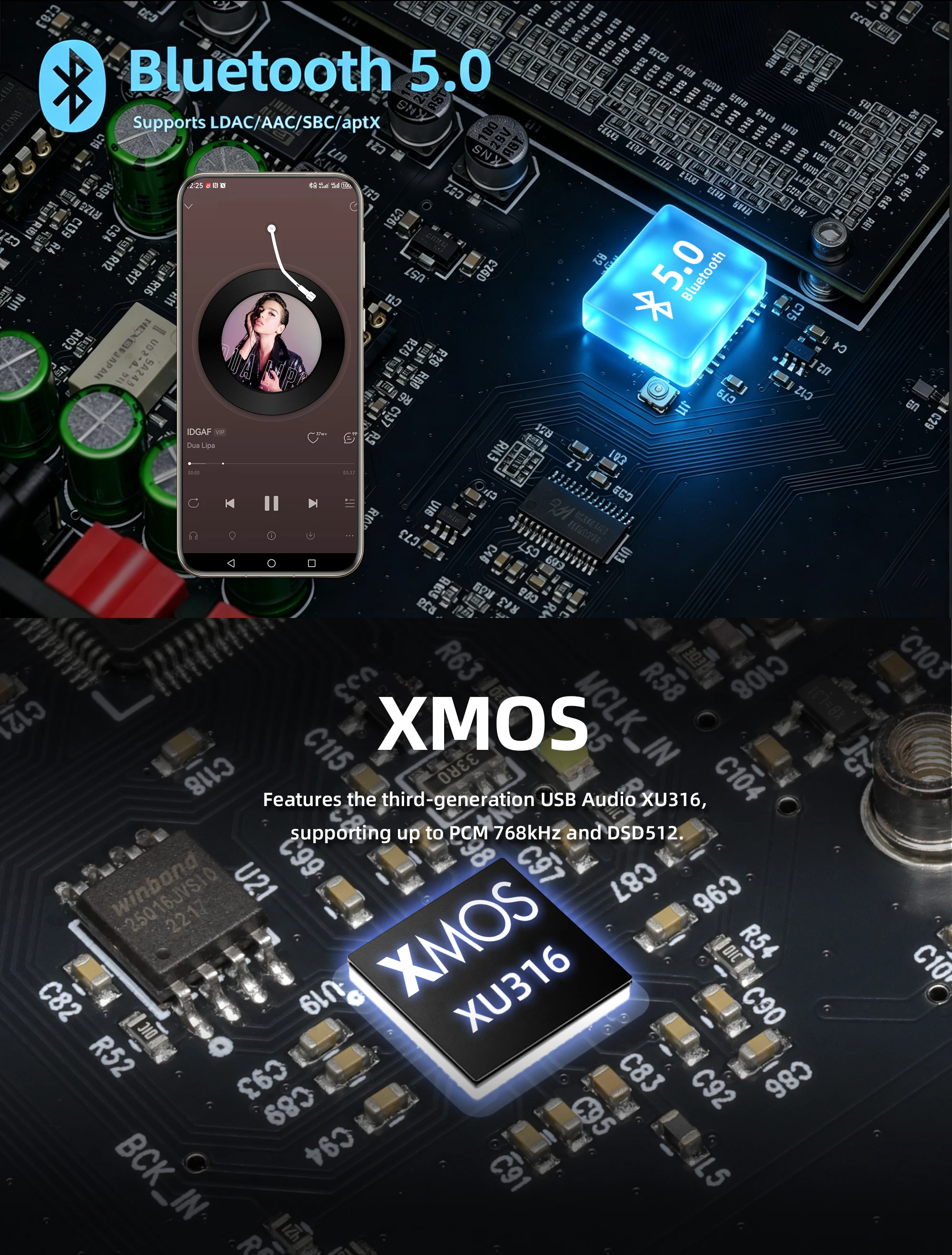

  • Streamlined Inputs: USB (XMOS XU316), Coaxial, Optical, and Bluetooth 5.0 — all the essentials without the network streaming overhead.
  • Analog Convenience: Simultaneous RCA 2 Vrms and XLR 4 Vrms fixed-level outputs for easy integration with preamps and powered speakers.

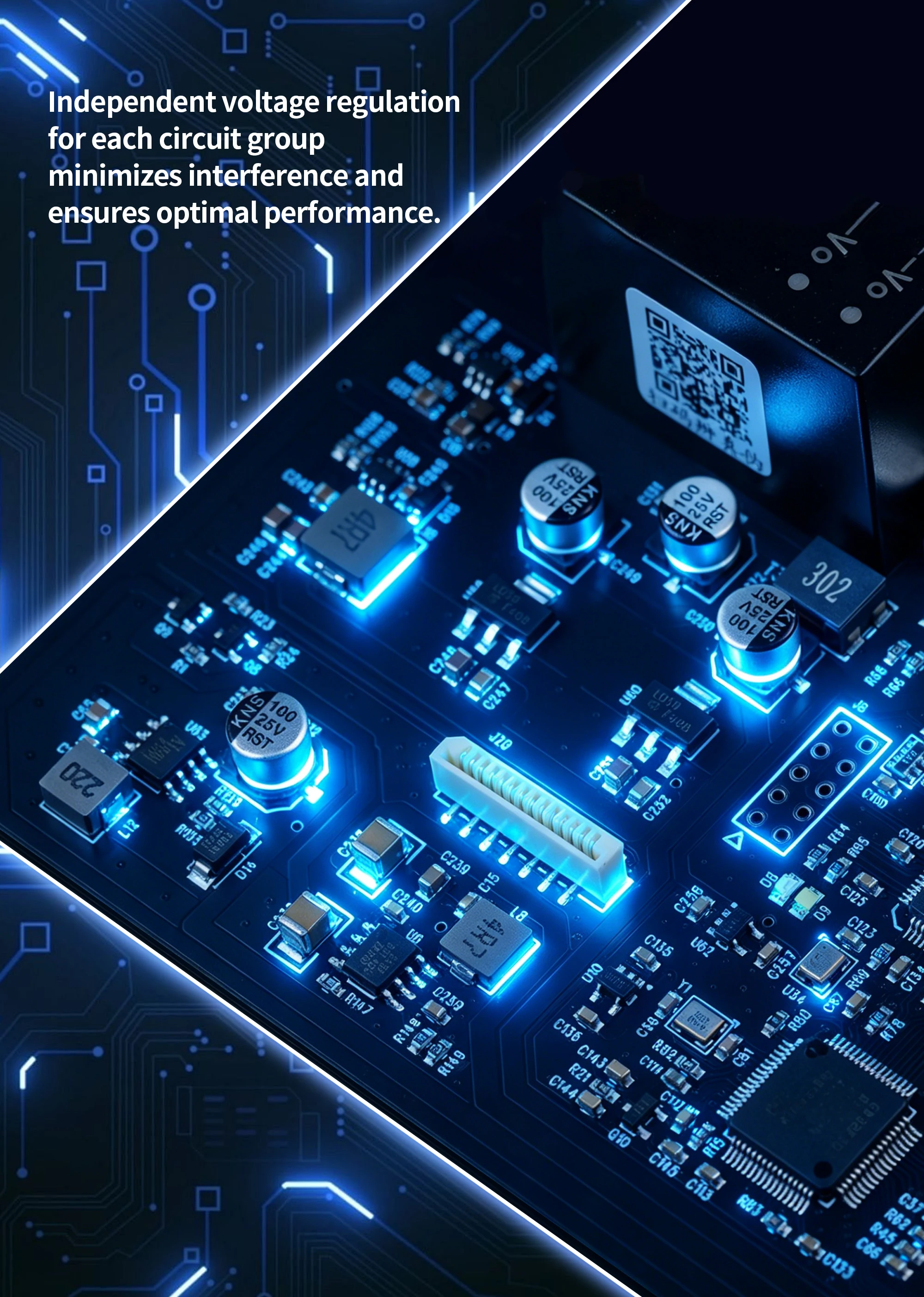

  • Power Architecture: Dedicated, independently regulated supply groups in a built-in low-noise PSU; also supports external 9–18 V DC input (optional).

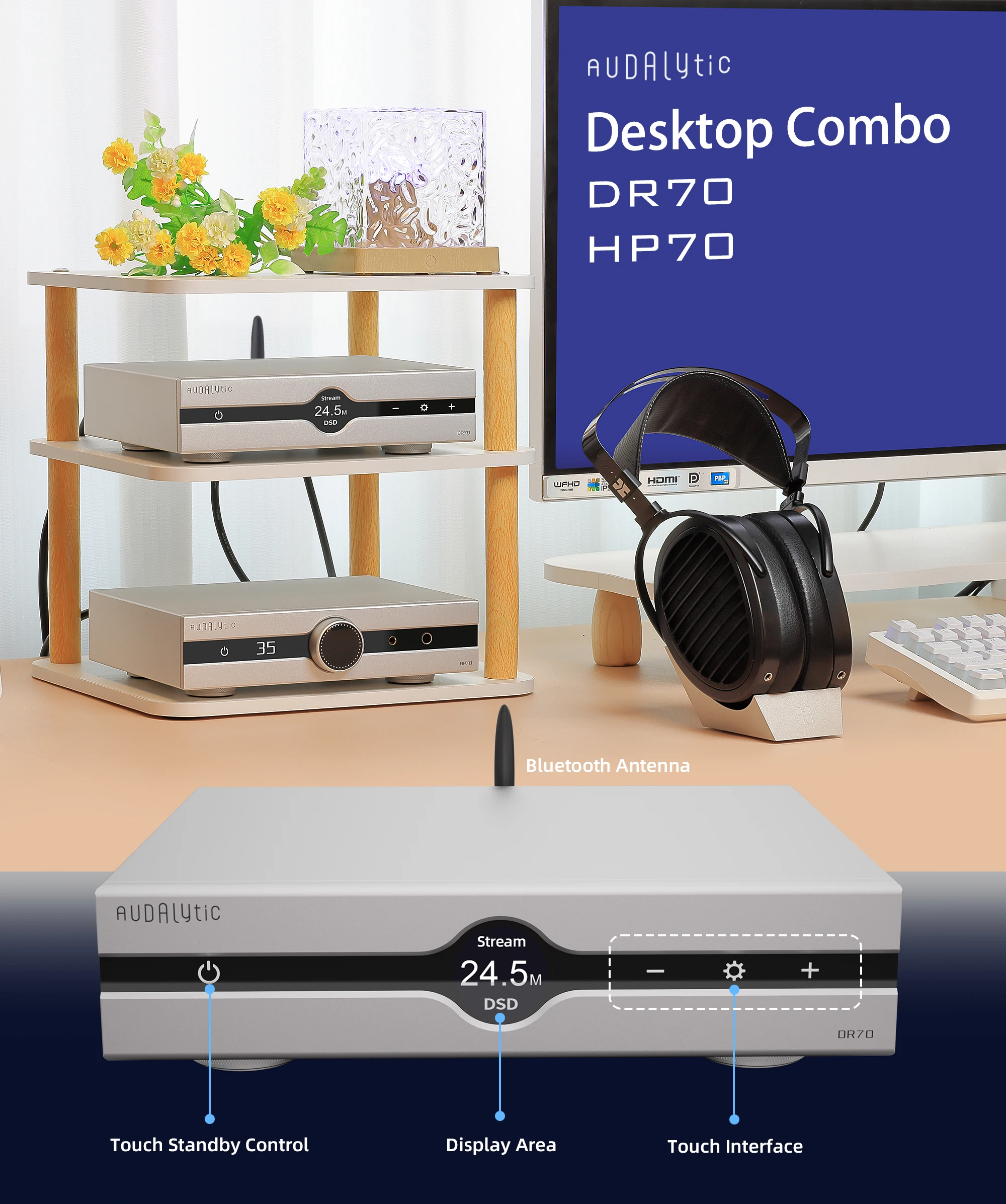

  • Ergonomics: Aluminum chassis (black or silver), LCD with adjustable brightness/sleep, and included remote control.

What’s in the Box

  • DR70 DAC unit
  • Remote control
  • Bluetooth antenna
  • Power cable
  • USB Type-C cable
  • Warranty card

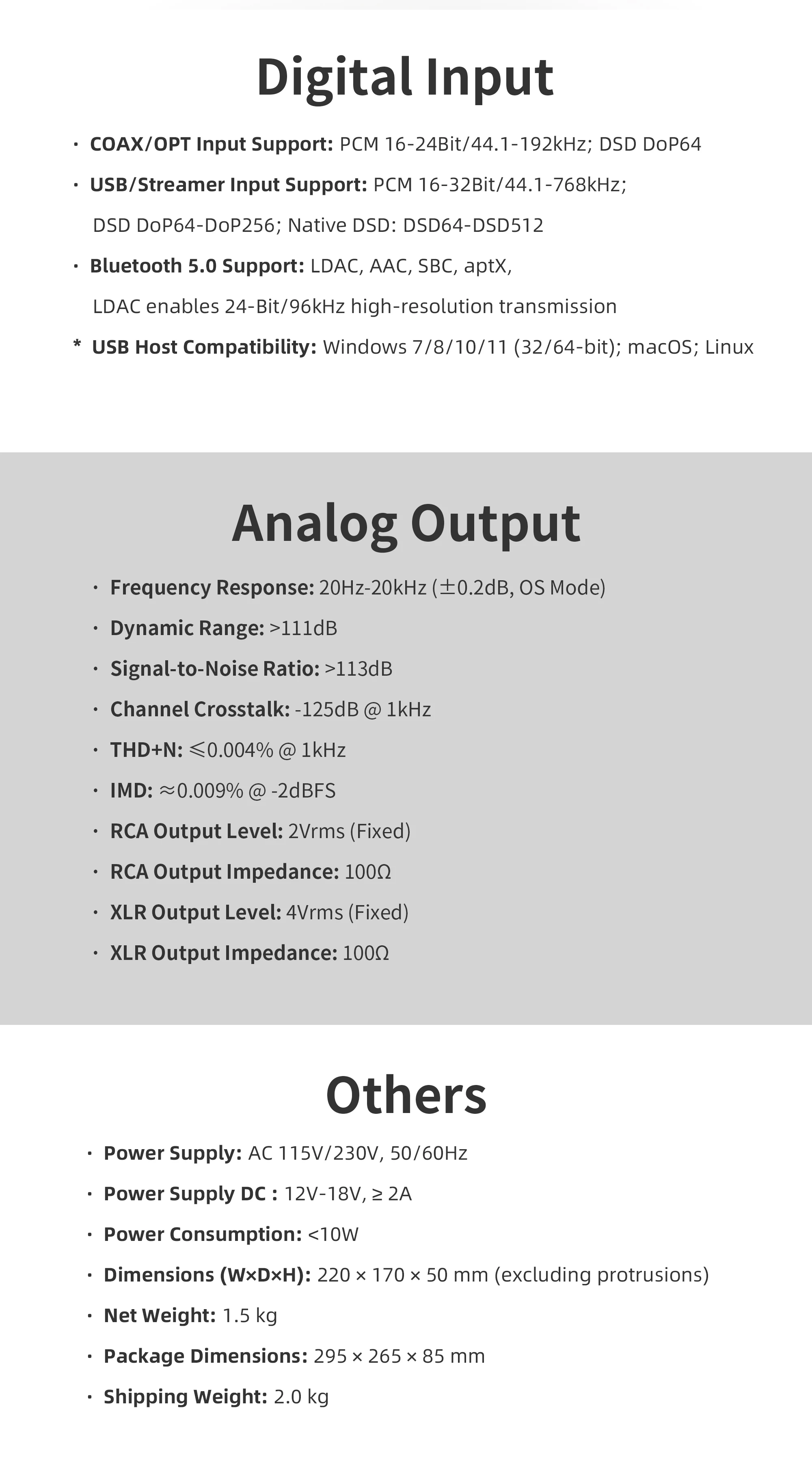

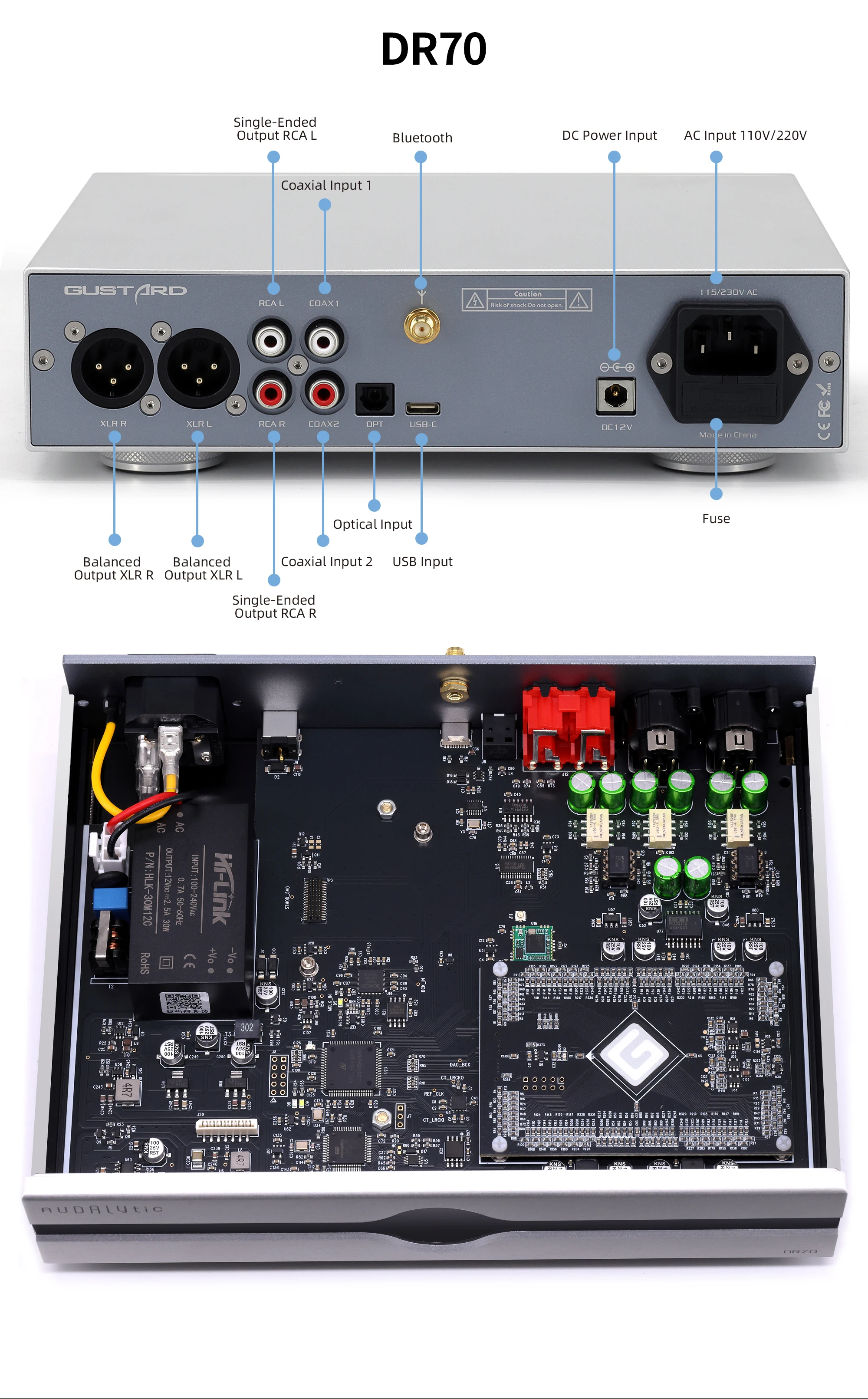

Digital & Wireless Inputs

  • USB / Streamer (XMOS XU316): PCM 16–32-bit / 44.1–768 kHz; DSD DoP64–DoP256; Native DSD64–DSD512
  • Coaxial / Optical: PCM 16–24-bit / 44.1–192 kHz; DSD DoP64
  • Bluetooth 5.0: LDAC (24-bit/96 kHz), aptX, AAC, SBC

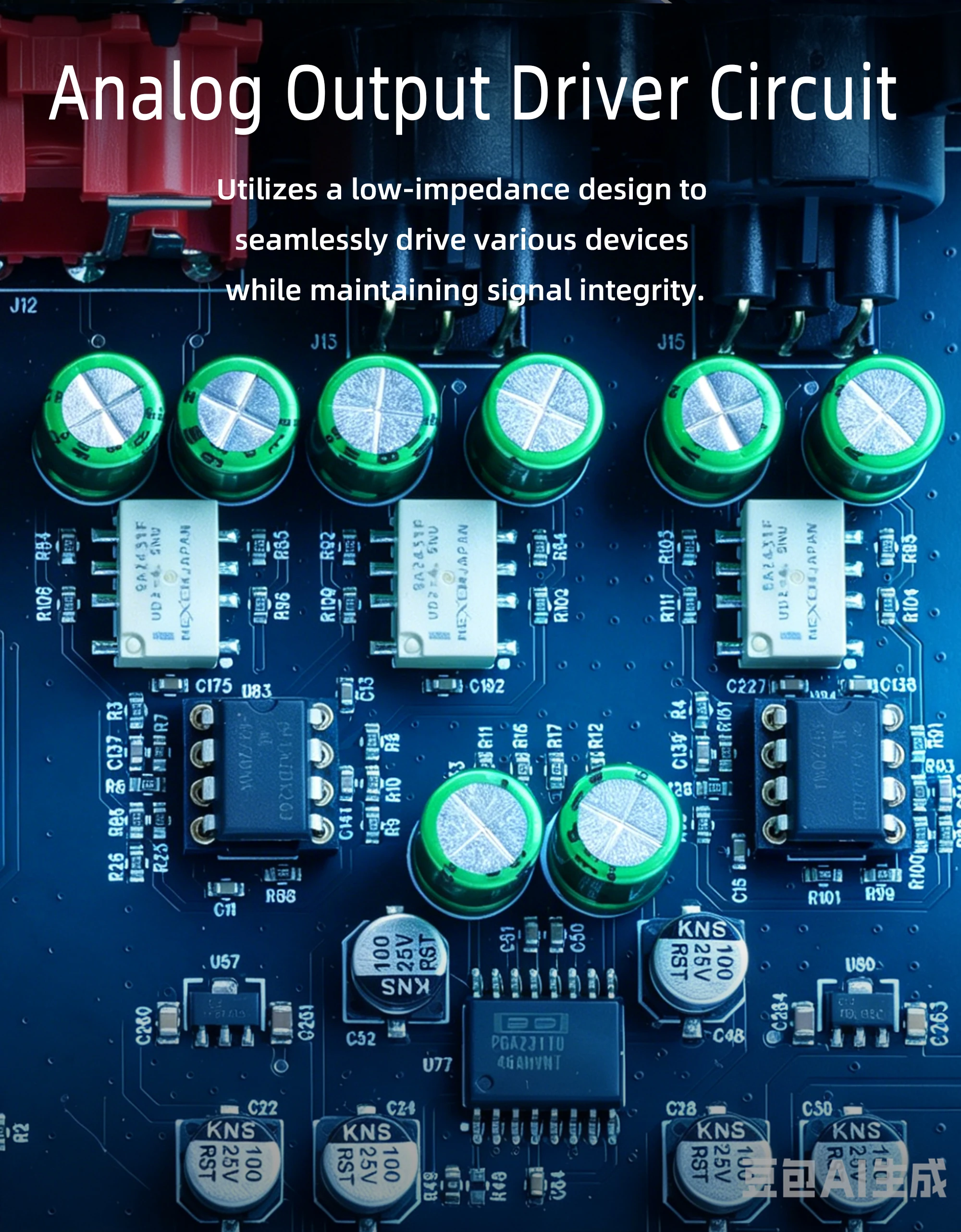

Analog Outputs

  • RCA: 2 Vrms (fixed), output impedance ~100 Ω
  • XLR (balanced): 4 Vrms (fixed), output impedance ~100 Ω
  • Simultaneous RCA + XLR: both outputs active for flexible system hookup

Measured Performance

  • Frequency Response: 20 Hz–20 kHz (±0.2 dB, OS mode)
  • Dynamic Range: > 111 dB
  • SNR: > 113 dB
  • Channel Crosstalk: −125 dB @ 1 kHz
  • THD+N: < 0.004% @ 1 kHz
  • IMD:0.009% @ −2 dBFS

Specifications

Model Audalytic DR70 (R2R Streaming DAC)
Clock CK-01 femtosecond-grade module
Filters 3 modes incl. NOS; DSD passthrough supported

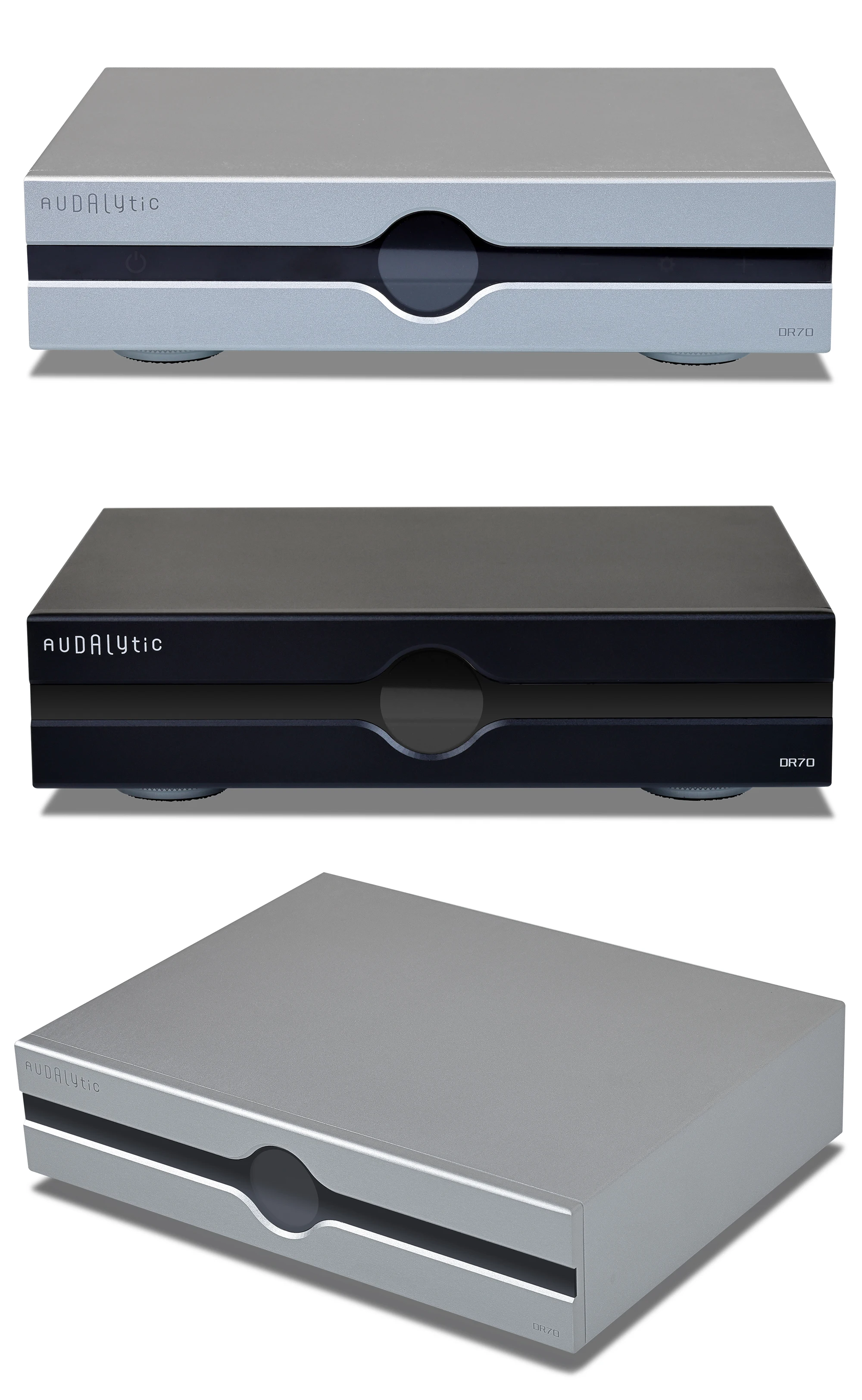

Chassis Full aluminum, anodized (Black / Silver)
Display & Control LCD (brightness & sleep), IR remote control included
Streaming Inputs USB, Coaxial, Optical, Bluetooth 5.0 (no LAN / TF card)
Power Internal low-noise PSU • AC 115/230 V, 50/60 Hz • <10 W
Aux input: external 9–18 V DC supported

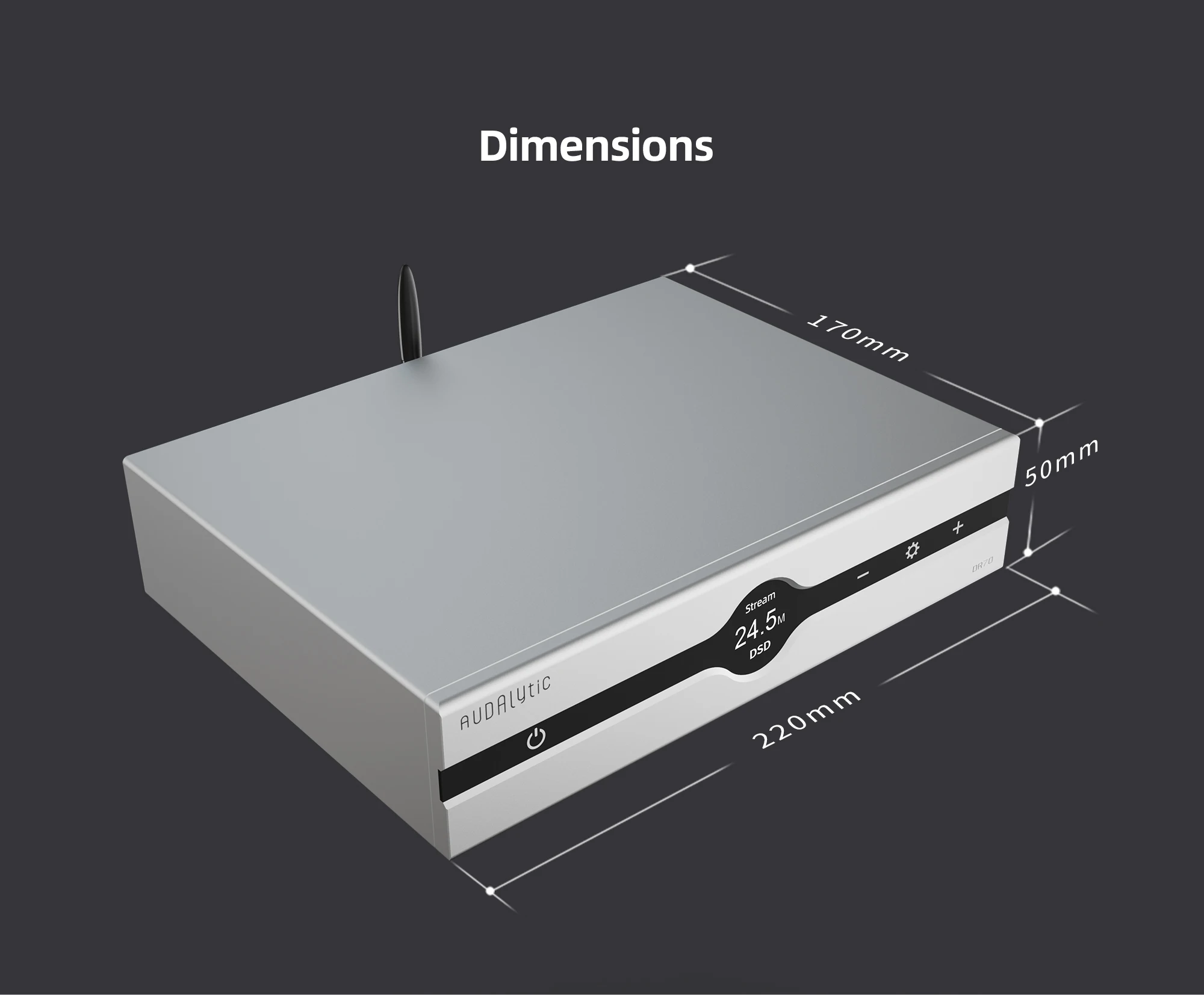

Dimensions / Weight 220 × 170 × 50 mm (W×D×H, excl. protrusions) • Net 1.5 kg
Package Box size 295 × 265 × 85 mm • Shipping weight ~2.0 kg
In the Box DR70 unit, Remote control, Bluetooth antenna, Power cable, USB-C cable, Warranty card
USB Host Compatibility Windows 7/8/10/11 (32/64-bit), macOS, Linux
Notes: Bluetooth codec availability depends on the source device. The DR70 does not include LAN network streaming (Roon Bridge, AirPlay, UPnP, NAA) or TF card slot — these are exclusive to the DR70n. External DC input is optional; use a clean, regulated 9–18 V supply.
