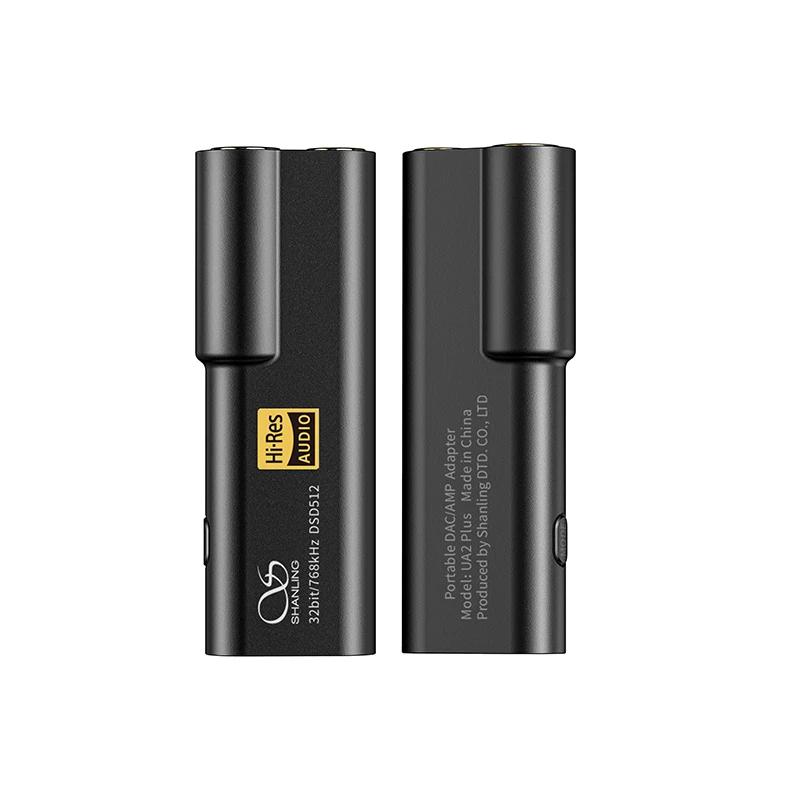

Shanling UA2 Plus ES9038Q2M Portable DAC Headphone Amplifier PCM768kHz/32Bit DSD512 3.5mm 4.4mm Ports DAC Amplifier

Shanling UA2 Plus with ES9038Q2M chip, a Portable DAC Headphone Amplifier support PCM768kHz/32Bit DSD512 music. is the newest headphone amp of Shanling. Can be used with electric guitar headphone.

Specification:

Size: 50x 18 x 10mm

Weight: about 10.6g

3.5mm PO output:

Output power: 2V@32Ω (125MW@32Ω)

Frequency response: 20Hz-40kHz (-0.5DB)

THD+N: 0.0008%@32Ω (A-weight@0.5V)

Dynamic Range:121db@32Ω(A-Weight)

Channel separation: 71db@32Ω

Signal ratio: 121db@32Ω (A-Weight)

Output impedance: <0.5Ω

4.4mm Bal output:

Output power: 2.5V@32Ω (1 95MW@32Ω)

Frequency response: 20Hz-50KHz (-0.5dB)

THD+N: 0.0008% @ 32Ω (A-weight @ 1V)

Dynamic range: 120db@32Ω (A-Weight)

Channel separation: 109db@32Ω

Signal ratio: 117db@32Ω (A-Weight)

Output impedance: <1Ω
