Topping

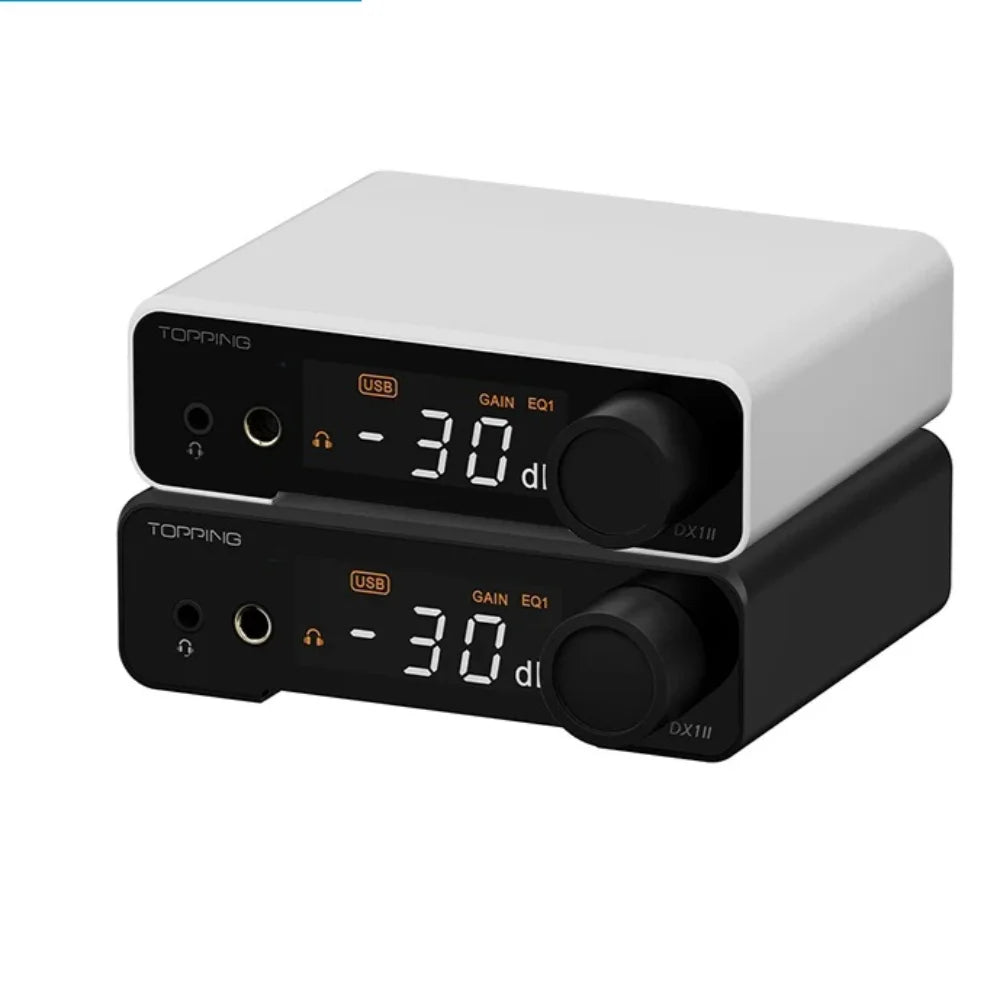

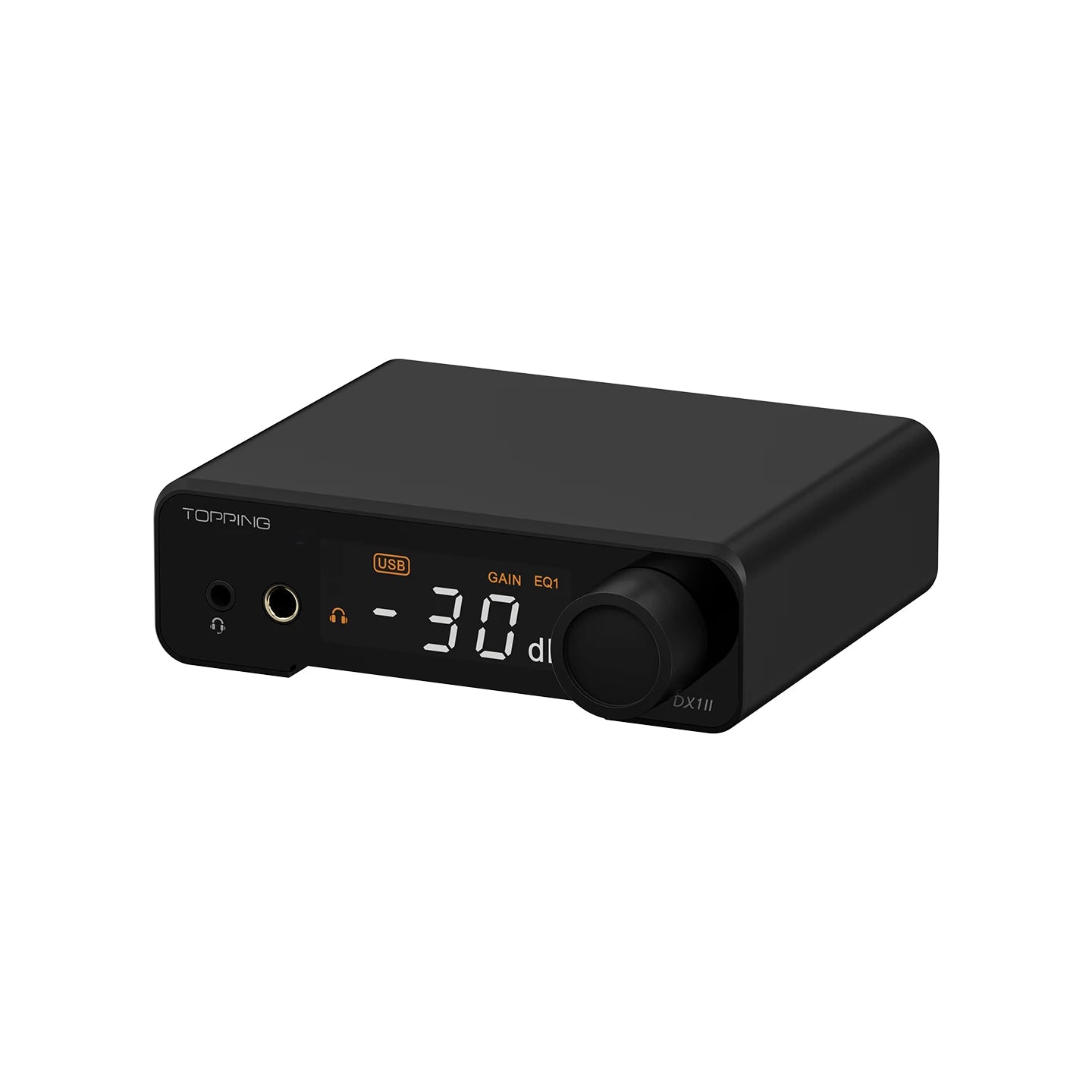

TOPPING DX1 II DAC & Headphone Amplifier | ES9039Q2M | Gaming Ready

TOPPING DX1 II DAC & Headphone Amplifier | ES9039Q2M | Gaming Ready

Regular price $145.69 USD
Regular price $0.00 USD Sale price $145.69 USD
Save Liquid error (snippets/price line 129): divided by 0% Sold out
Shipping calculated at checkout.
Color

Shipping to

Estimated delivery on

Canada, Mexico, Romania, United States: import duty of 10 USD

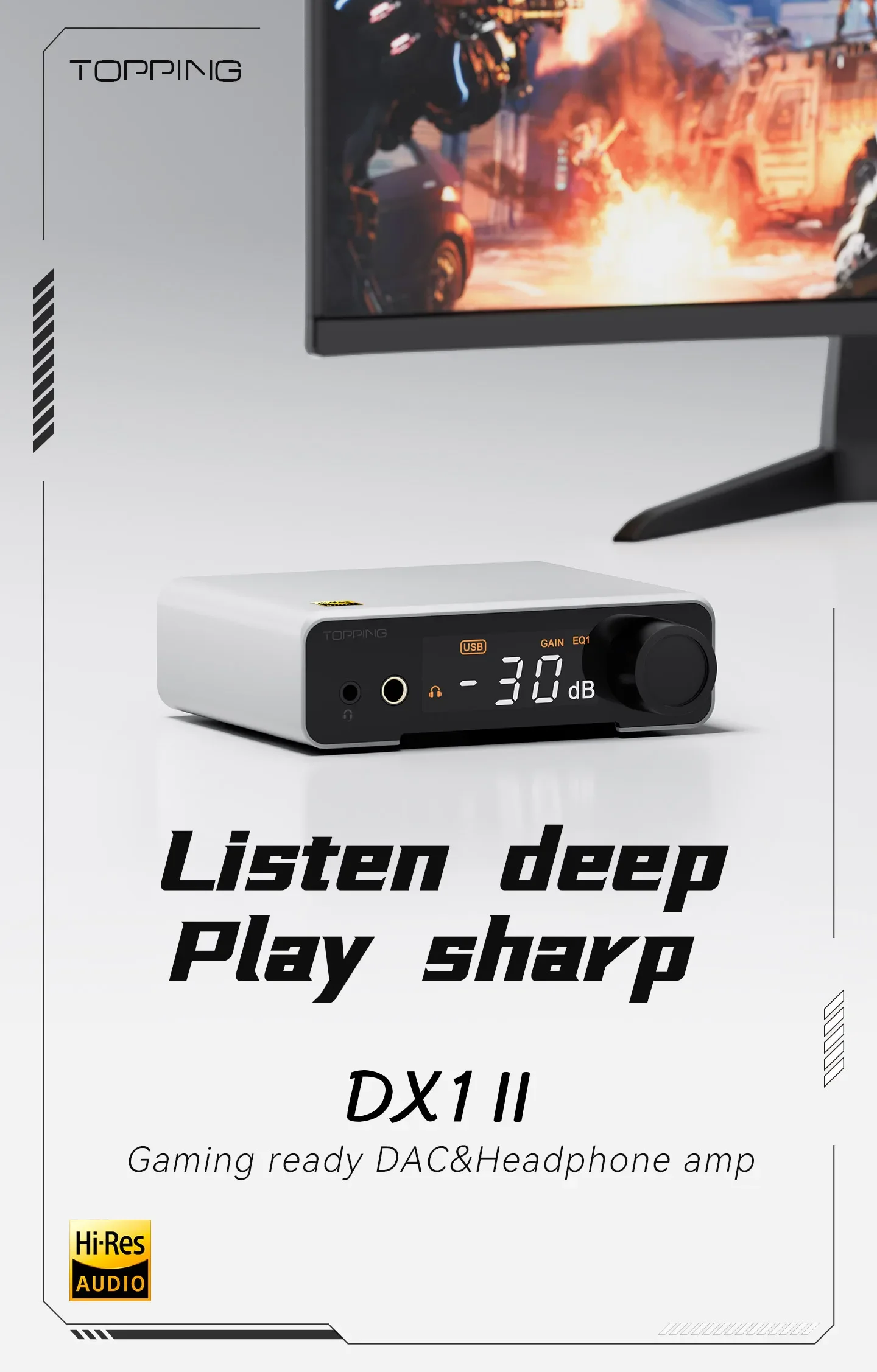

TOPPING DX1 II — Gaming-Ready DAC & Headphone Amplifier

ES9039Q2M precision, 10-band PEQ DSP, 1000mW balanced output, and plug-and-play gaming console support — all in one compact desktop unit.

The DX1 II is more than a DAC and headphone amplifier. Built around ESS’s new-generation ES9039Q2M chip, it delivers a genuinely quiet noise floor (<0.9 µVrms), four-channel fully balanced amplification, and up to 1000mW × 2 @ 32Ω — enough to drive demanding headphones from a single USB connection. Its independent optical input and output and 10-band high-precision PEQ make it a compact DSP hub for music, gaming, and home audio alike.

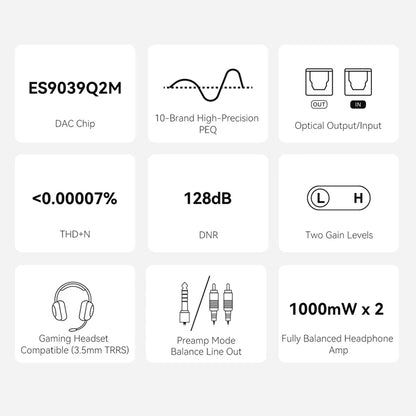

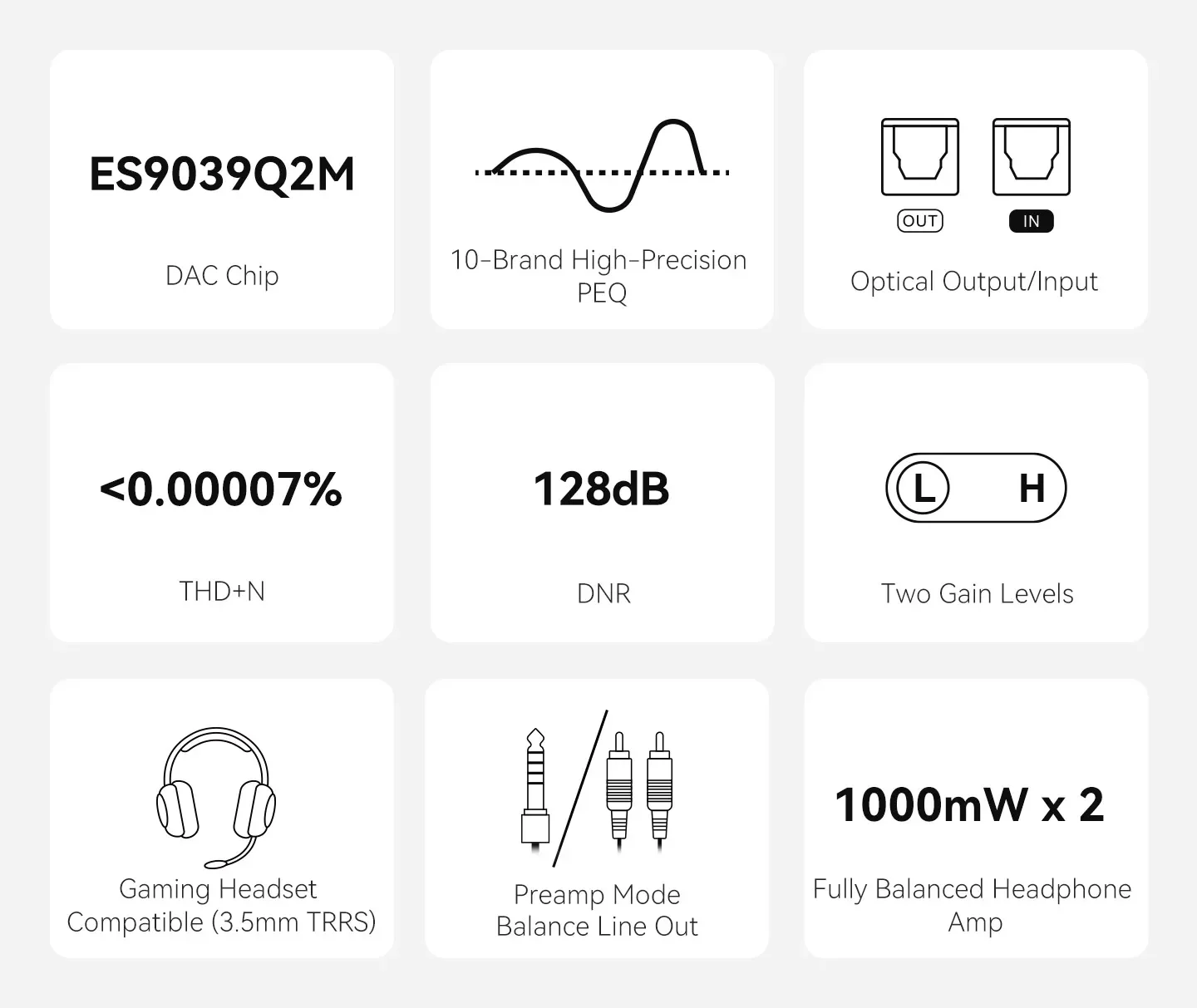

ES9039Q2M DAC 4-Channel Fully Balanced Amp 1000mW × 2 @ 32Ω 10-Band PEQ DSP Optical In & Out PCM 384kHz / DSD256 TRRS Mic Input Switch & PS5 Compatible Noise Floor <0.9 µVrms Remote Control Included

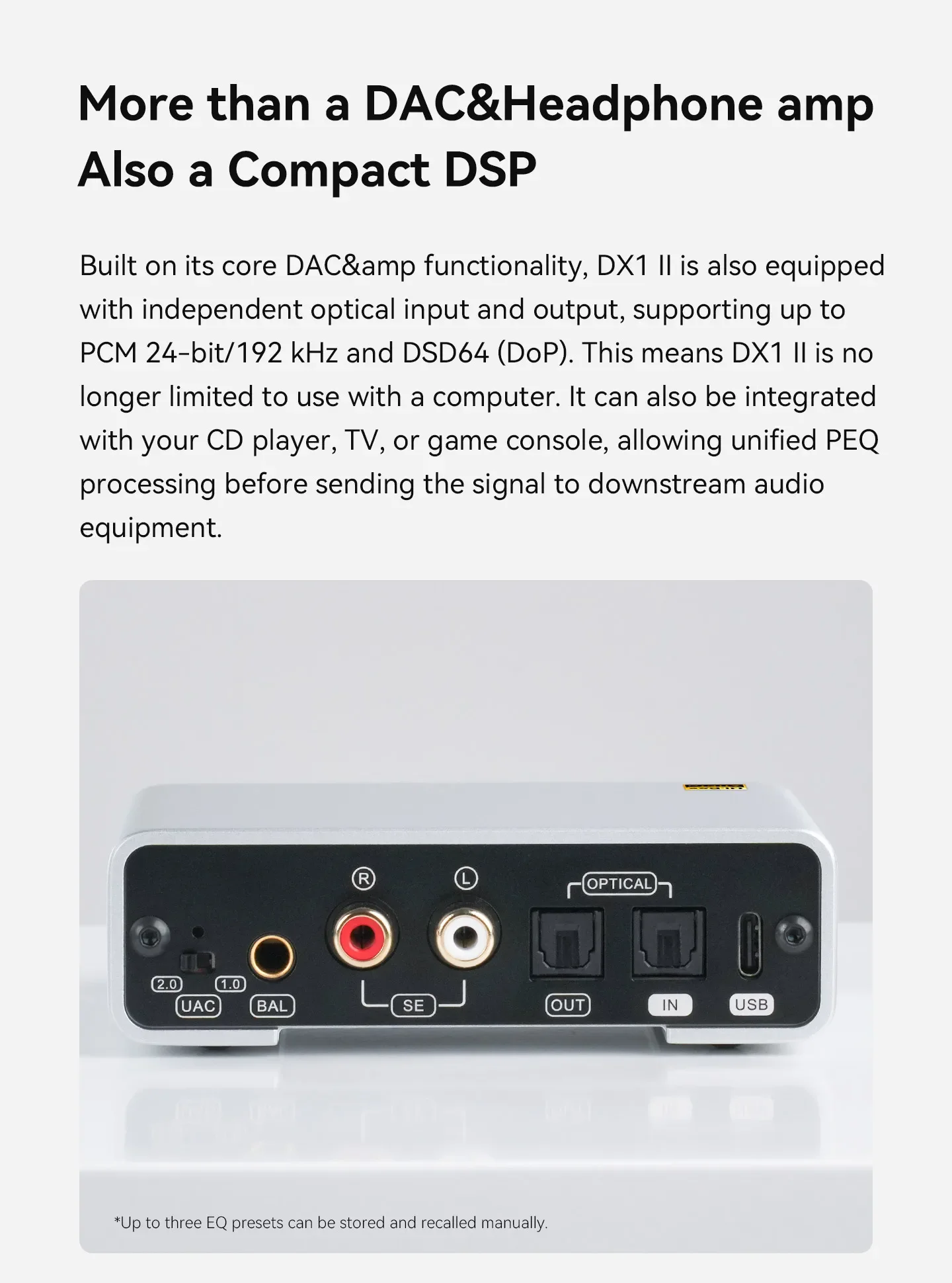

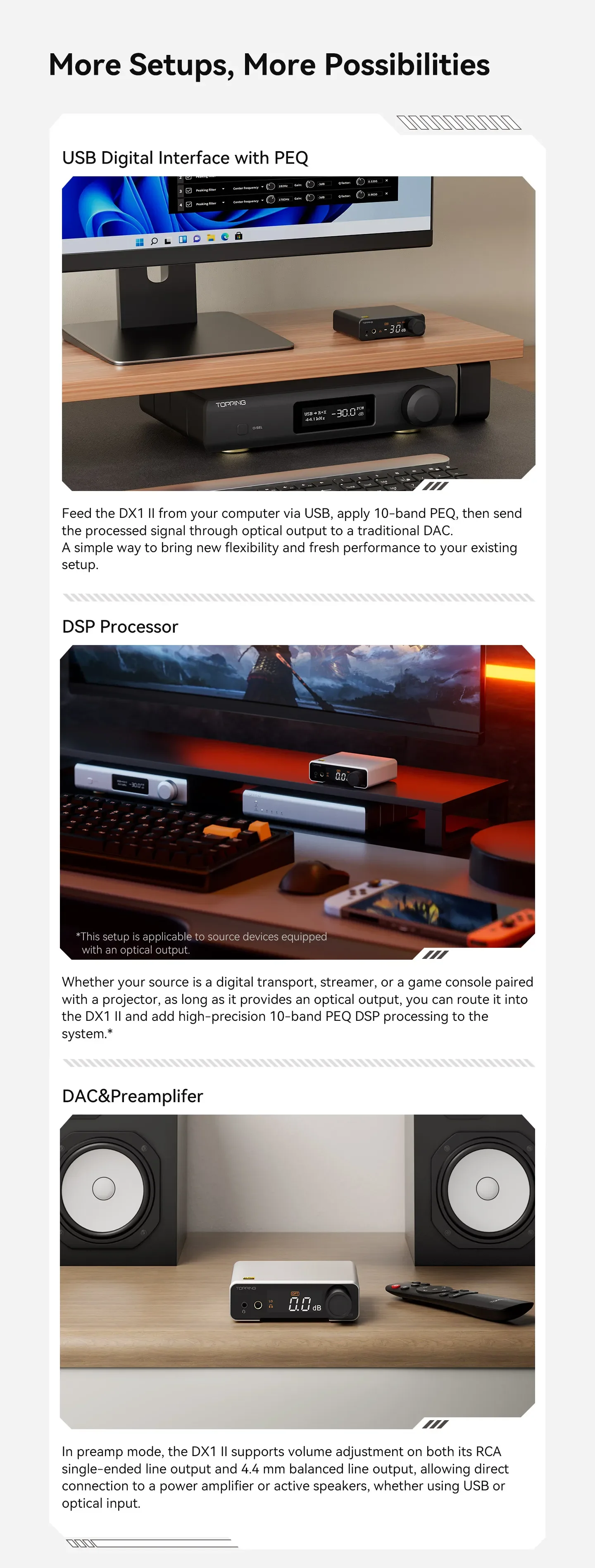

More Than a DAC & Amp — A Compact DSP Hub

  • USB → PEQ → Optical Out: Apply 10-band PEQ from your computer, then send the processed signal to a downstream DAC or amplifier.
  • Optical In → PEQ → Output: Route a CD player, TV, or game console through the DX1 II for DSP processing.
  • DAC + Preamp Mode: Volume-controlled RCA and 4.4mm balanced line outputs for direct connection to power amplifiers or active speakers.

Gaming Features

  • 10-Band PEQ profiles — tune footsteps and positional cues for competitive advantage; save multiple profiles for quick switching.

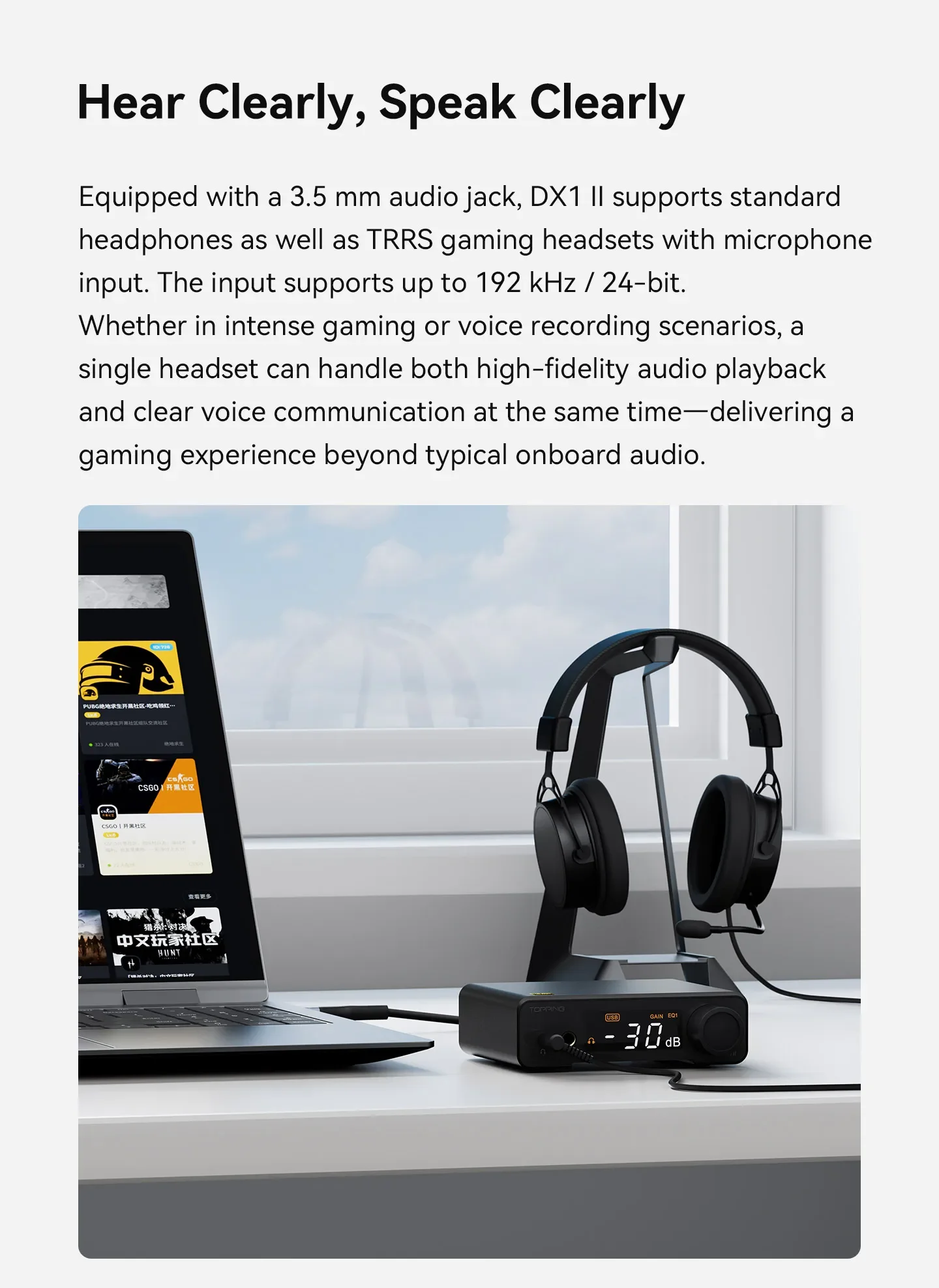

  • TRRS 3.5mm jack — supports gaming headsets with microphone input (up to 192kHz/24-bit).

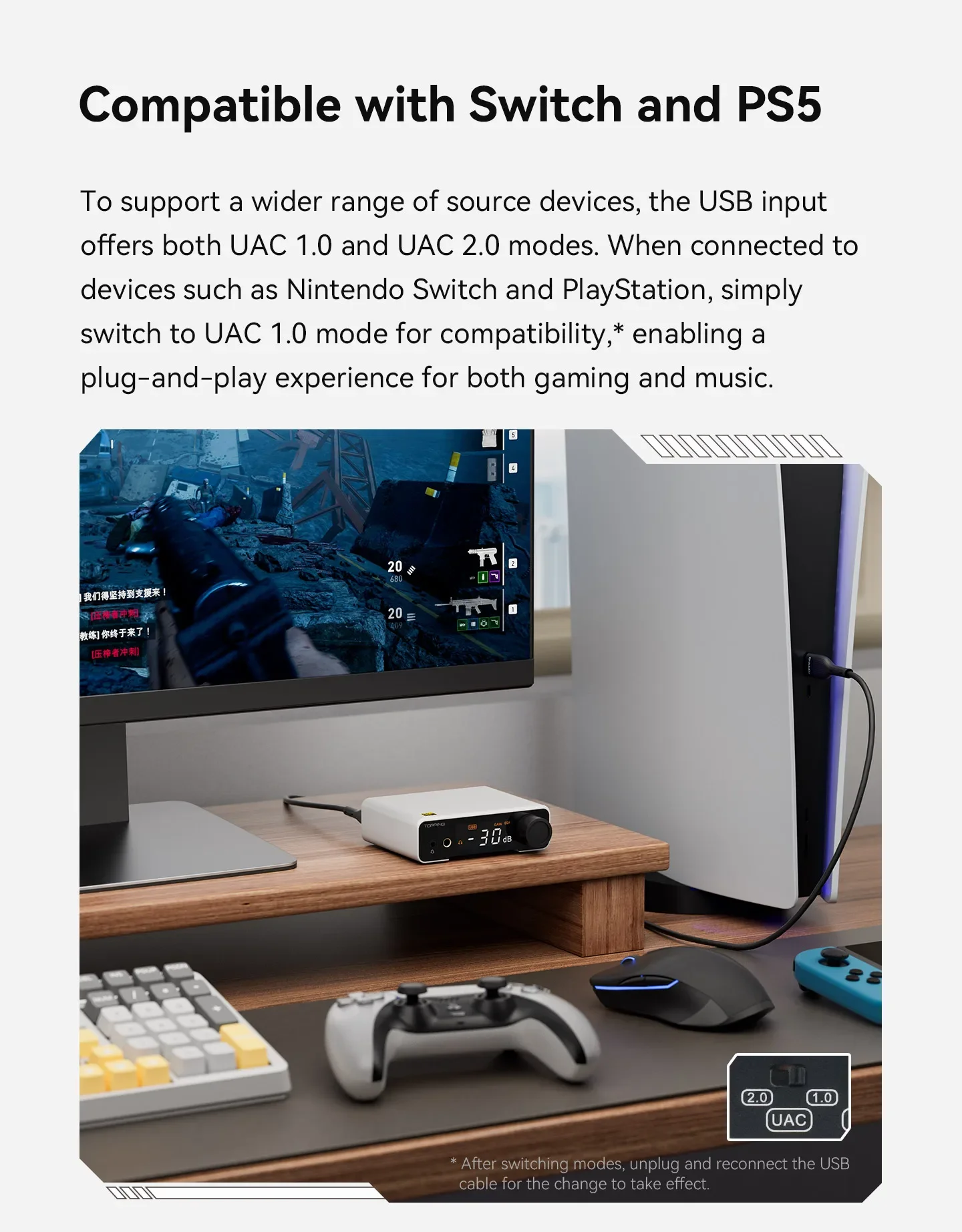

  • UAC 1.0 / UAC 2.0 switchable — plug-and-play with Nintendo Switch and PlayStation 5.

Key Features

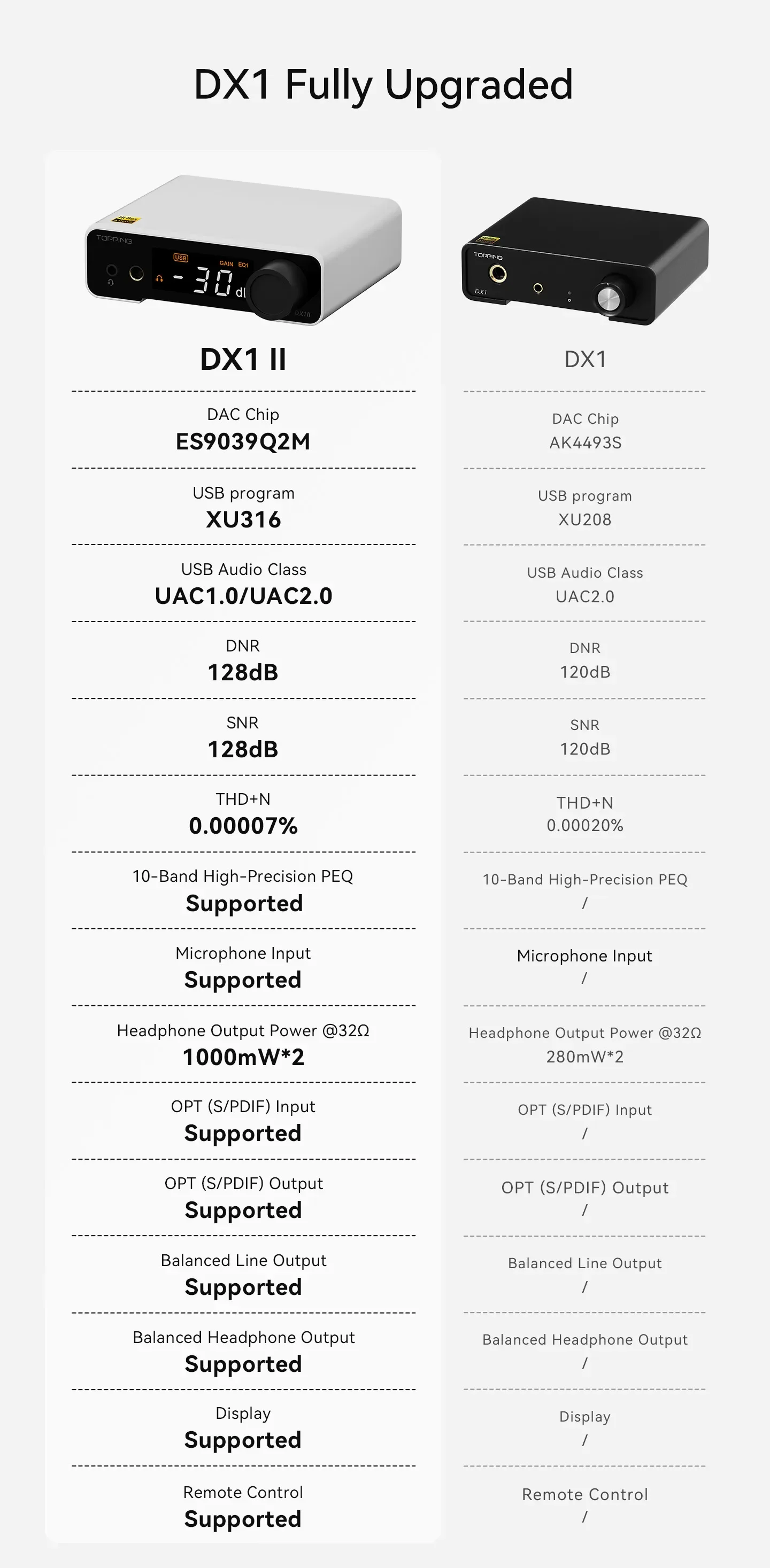

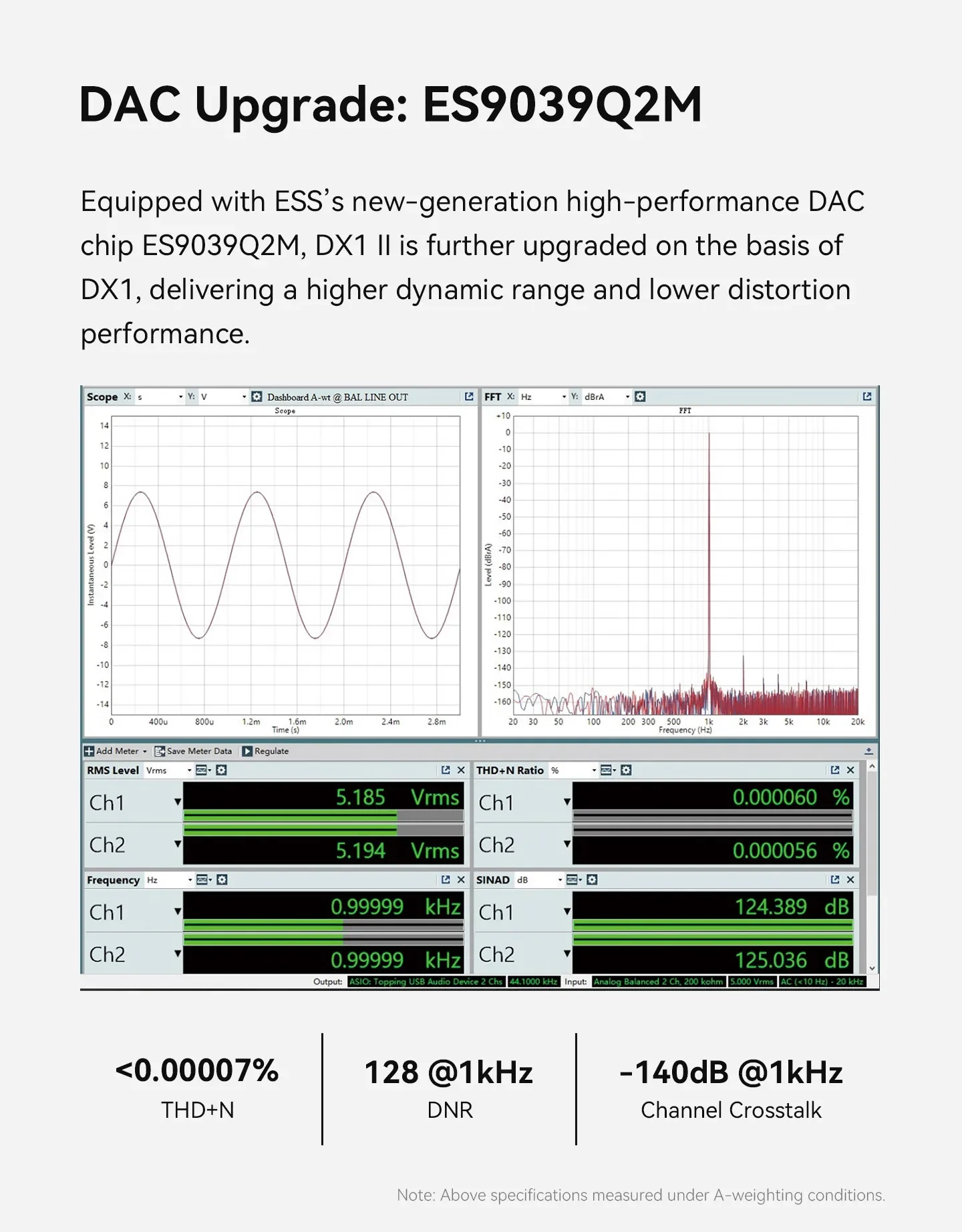

  • ES9039Q2M DAC: Higher dynamic range and lower distortion than its predecessor.

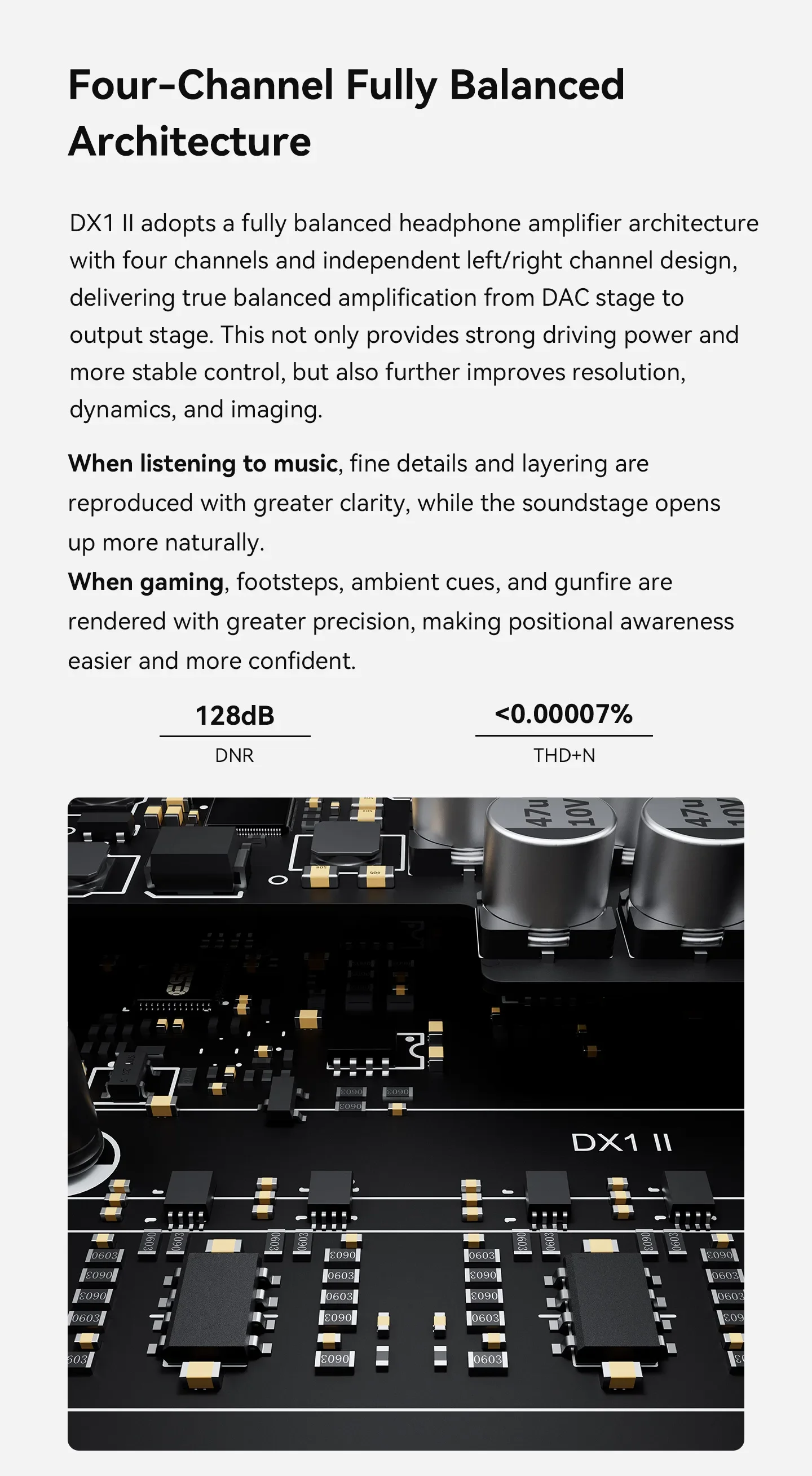

  • Four-Channel Fully Balanced Architecture: Independent L/R from DAC to output — better imaging, dynamics, and control.

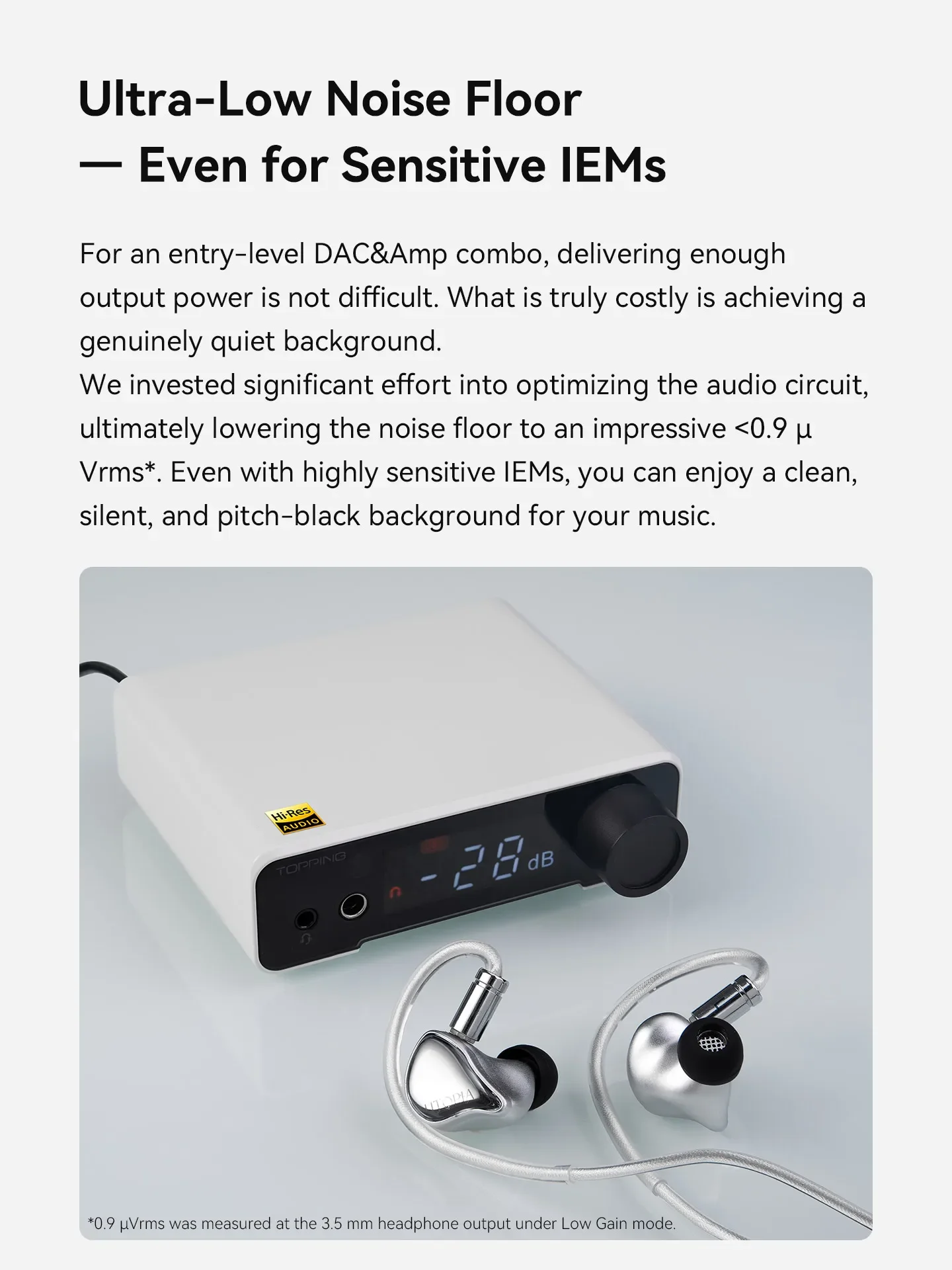

  • Ultra-Low Noise Floor (<0.9 µVrms): Pitch-black background even with sensitive IEMs.

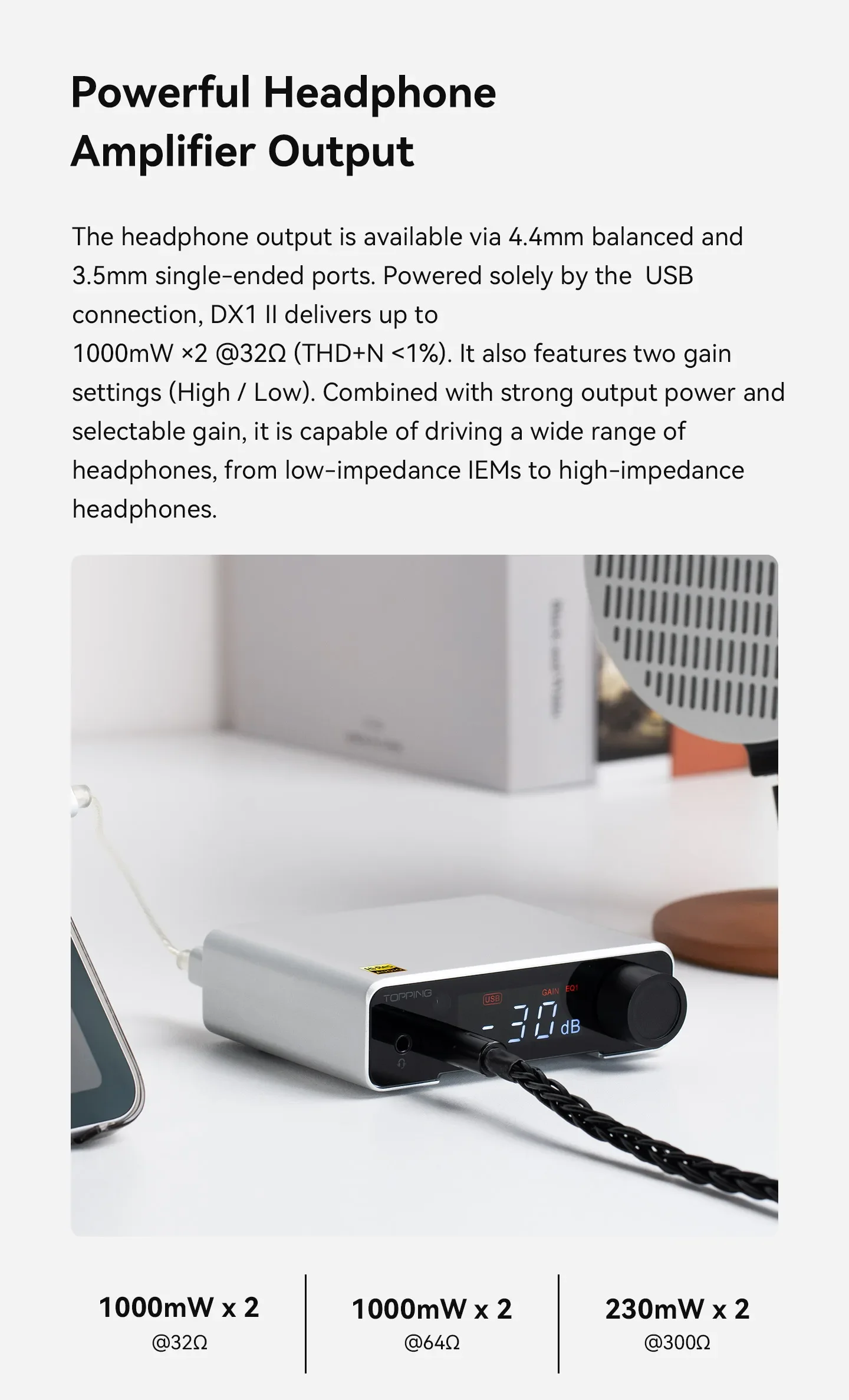

  • 1000mW × 2 @ 32Ω/64Ω; 230mW × 2 @ 300Ω: Drives IEMs to high-impedance full-size headphones.
  • High / Low Gain: Two gain settings for flexible headphone matching.

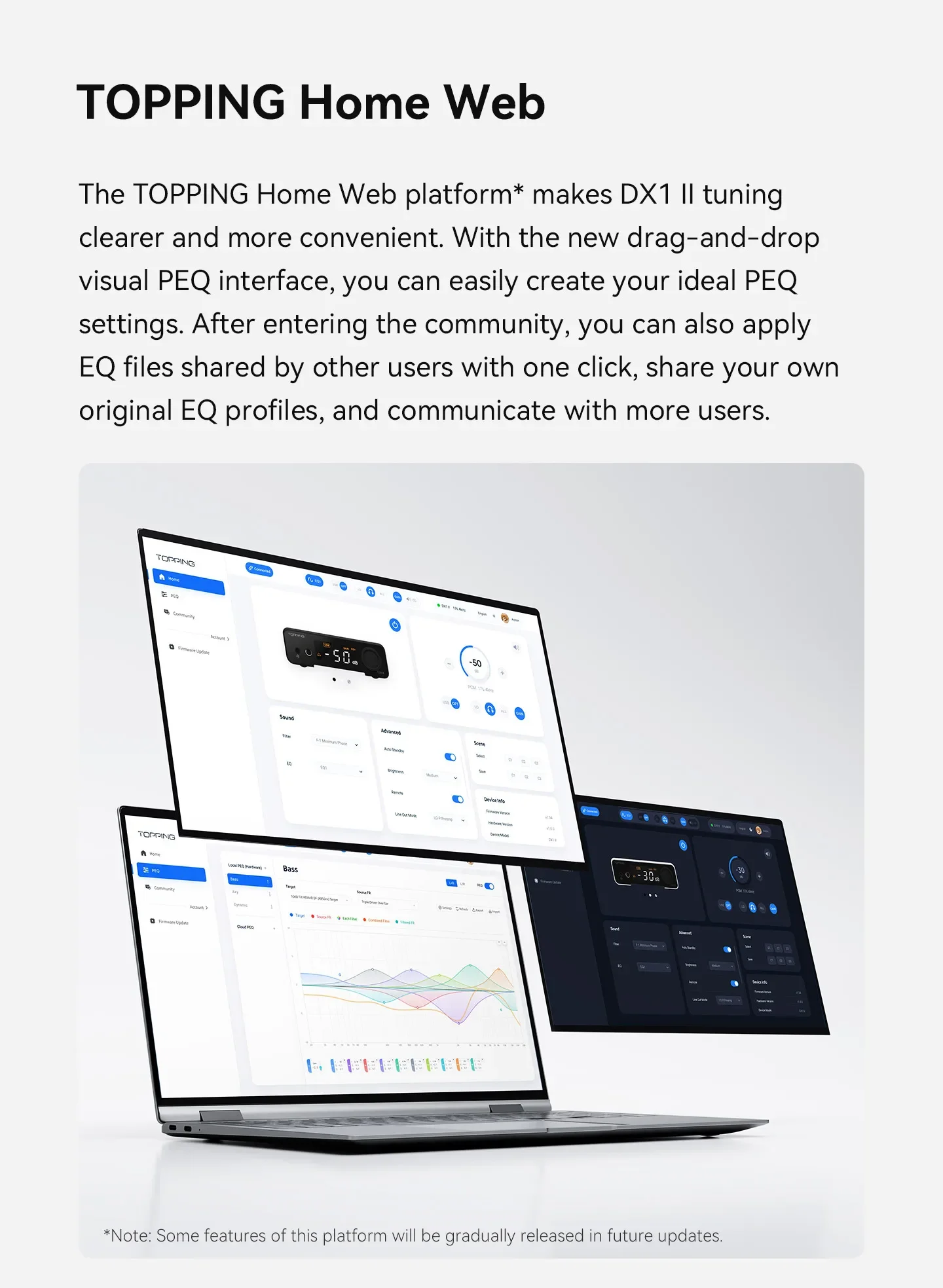

  • TOPPING Home Web PEQ: Drag-and-drop visual EQ; import and share community profiles.

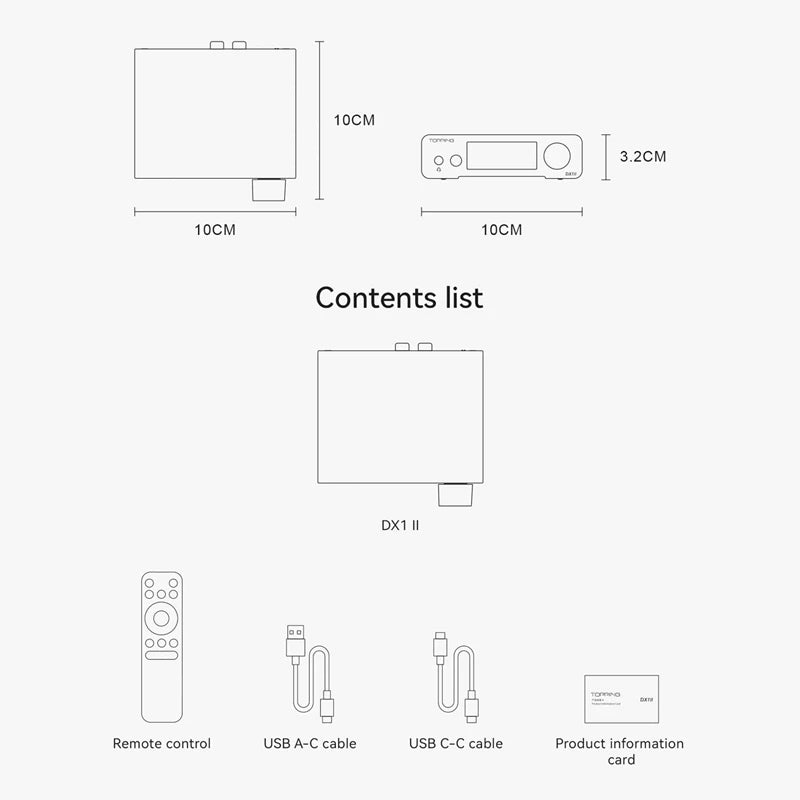

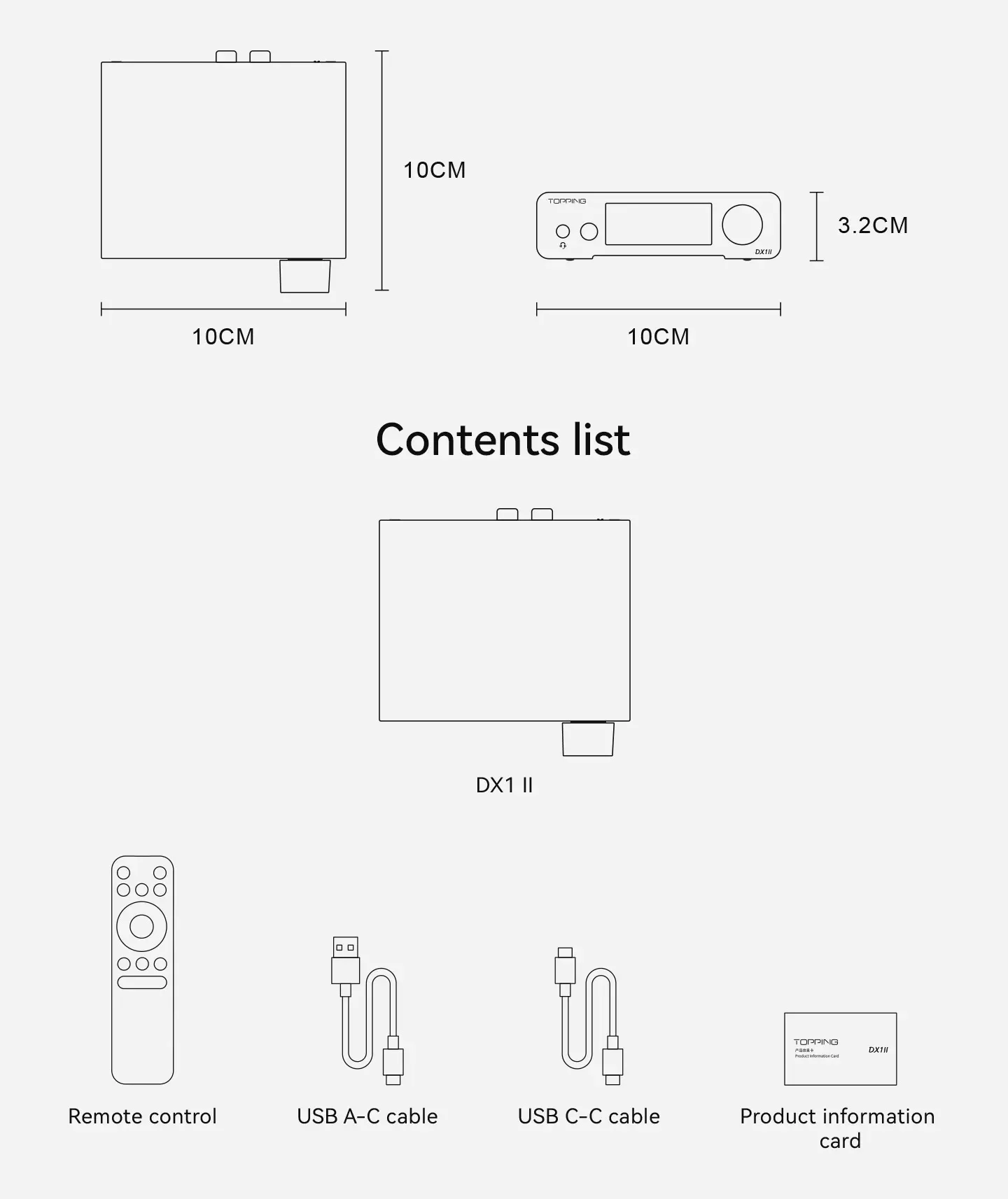

What’s in the Box

  • DX1 II unit

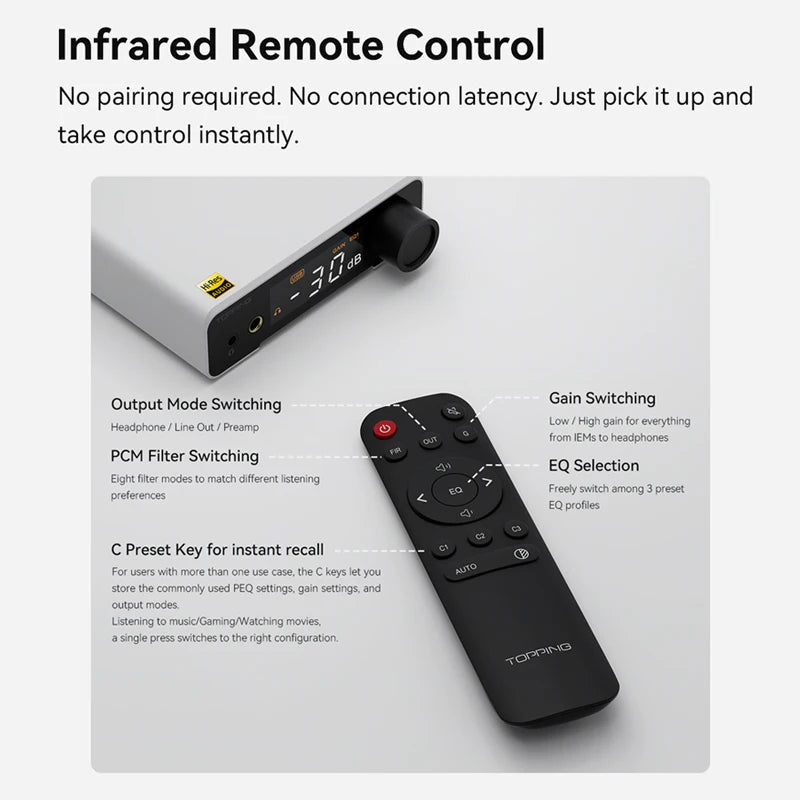

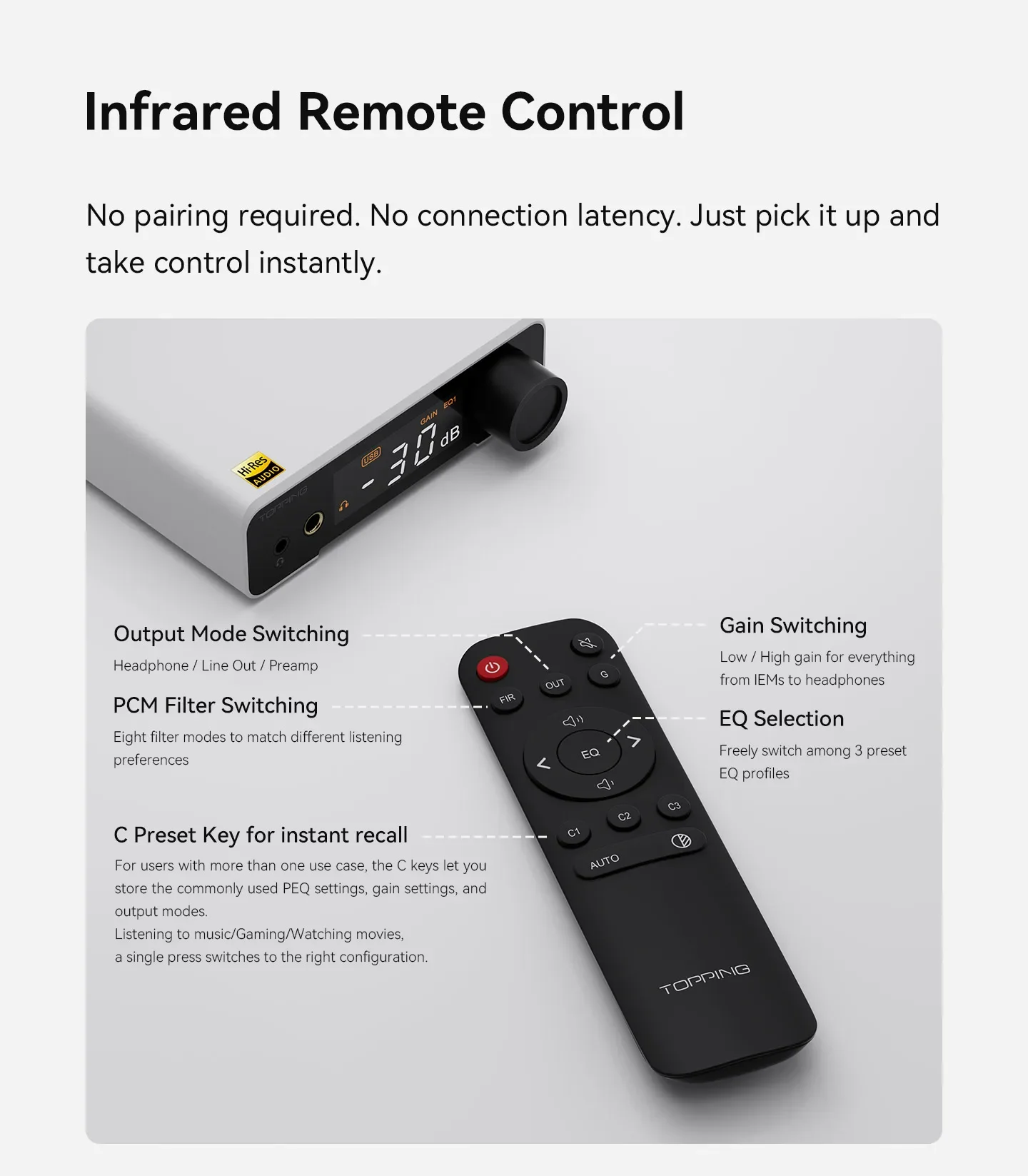

  • Remote control
  • USB Type-A to Type-C cable
  • USB Type-C to Type-C cable
  • Product information card

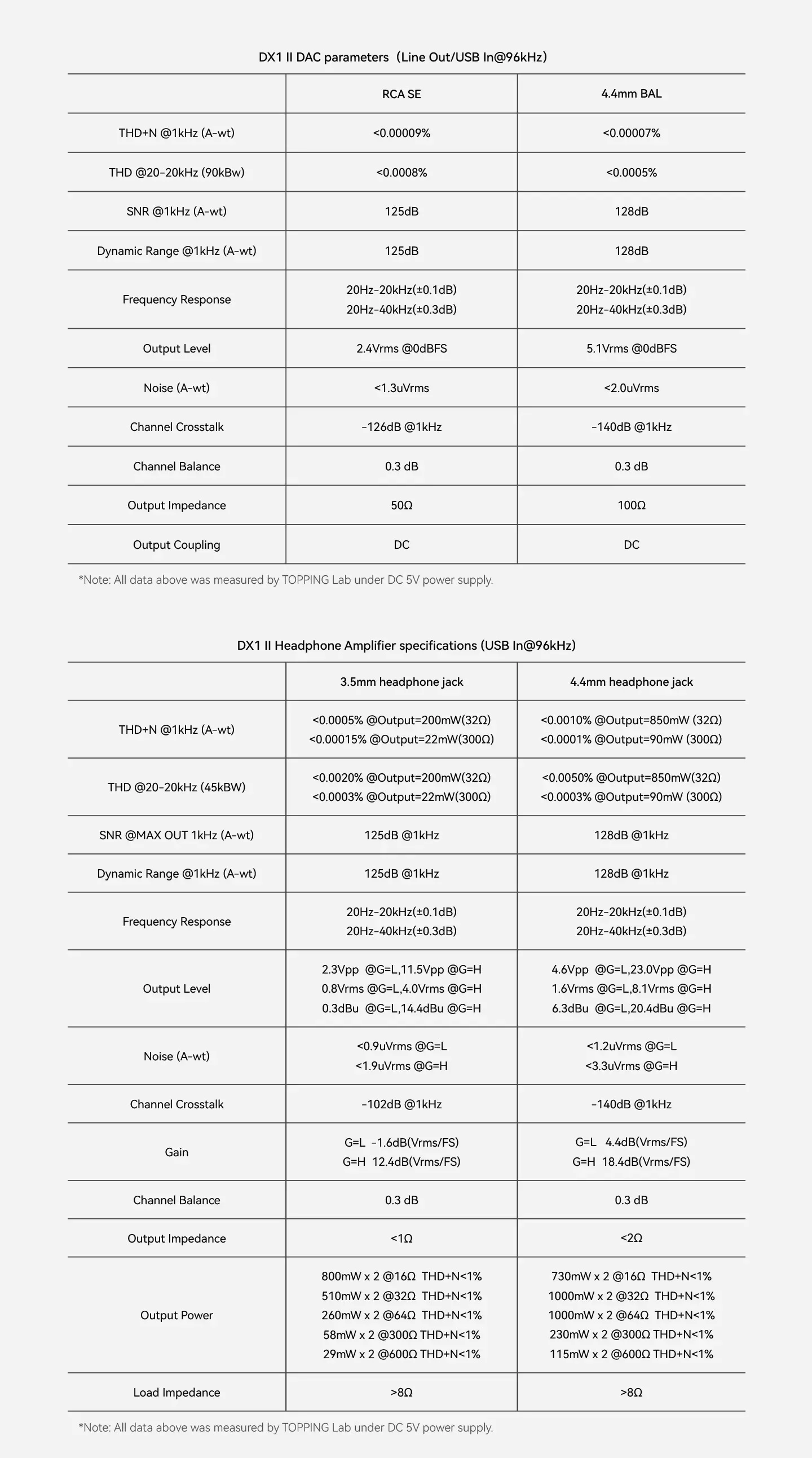

Specifications

DAC Chip ESS ES9039Q2M
Amplifier Architecture Four-channel fully balanced, independent L/R

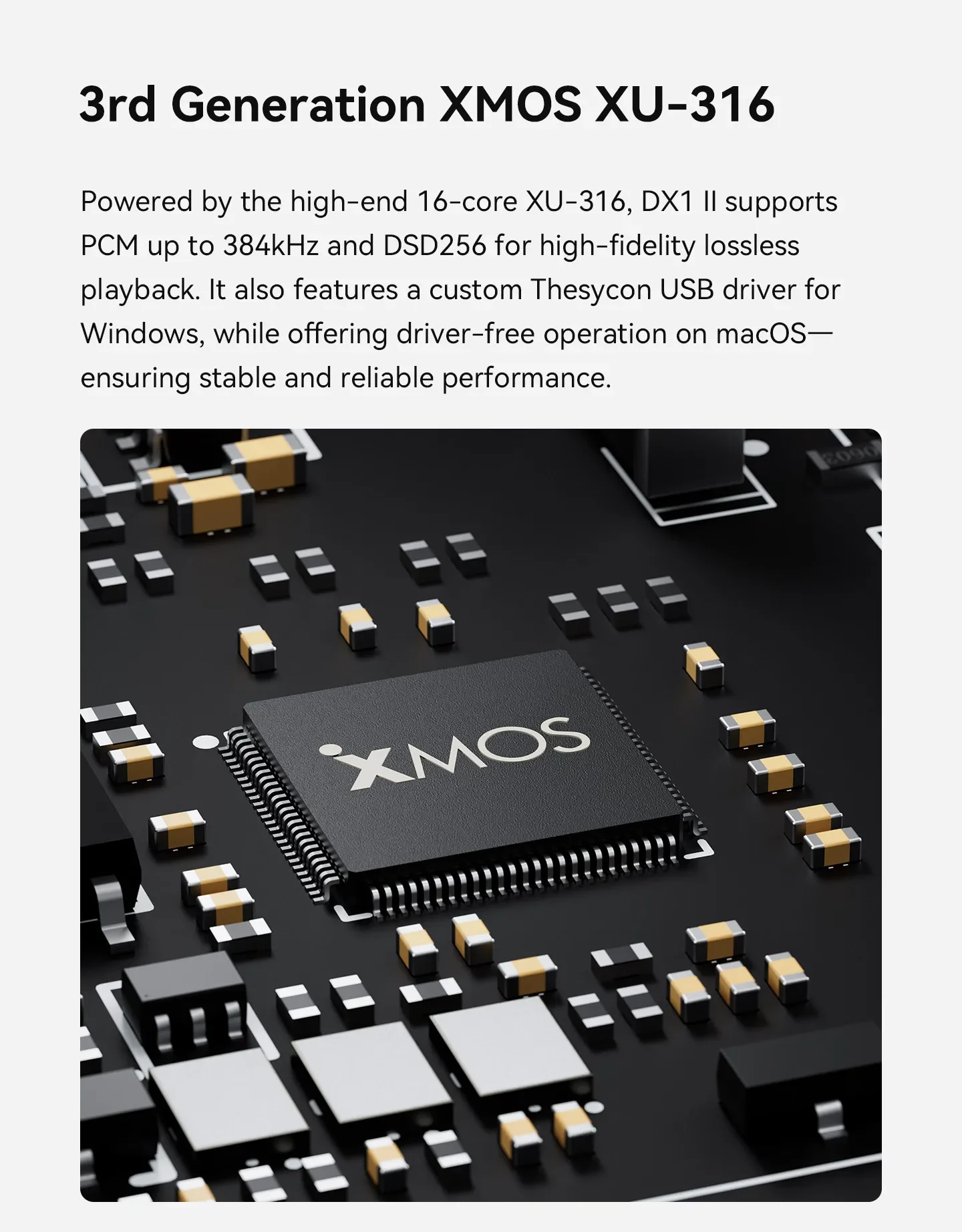

PCM Support (USB) 16–32-bit / 44.1–384kHz
PCM Support (Optical) Up to 24-bit / 192kHz
DSD Support DSD64–DSD256 (USB); DSD64 DoP (Optical)

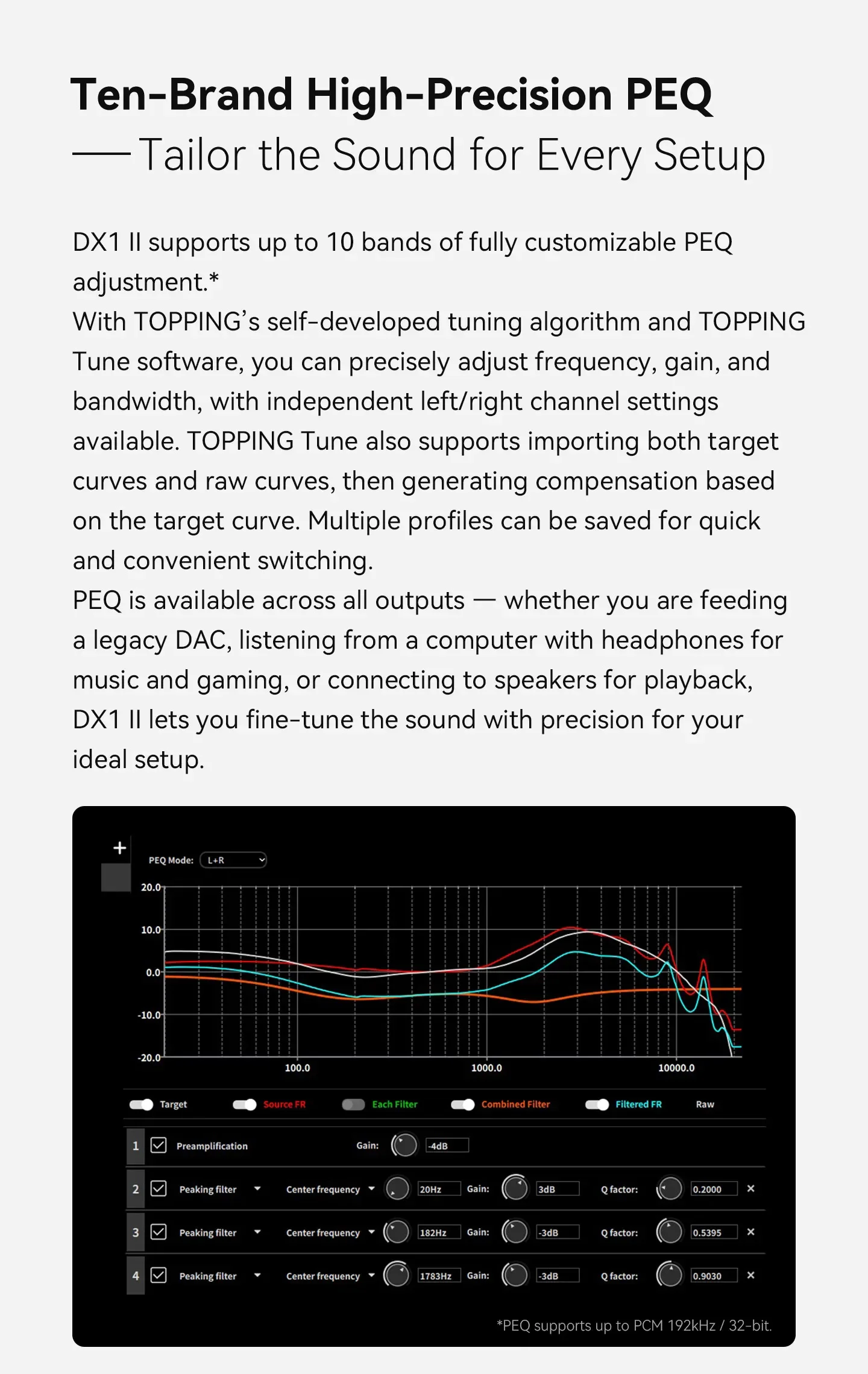

PEQ 10-band, independent L/R, TOPPING Home Web + TOPPING Tune

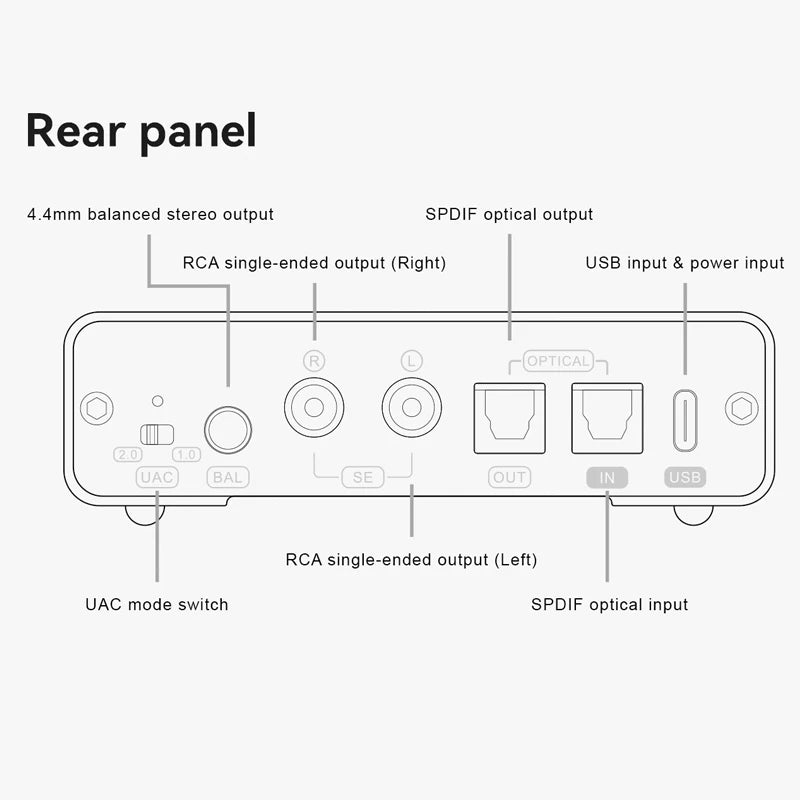

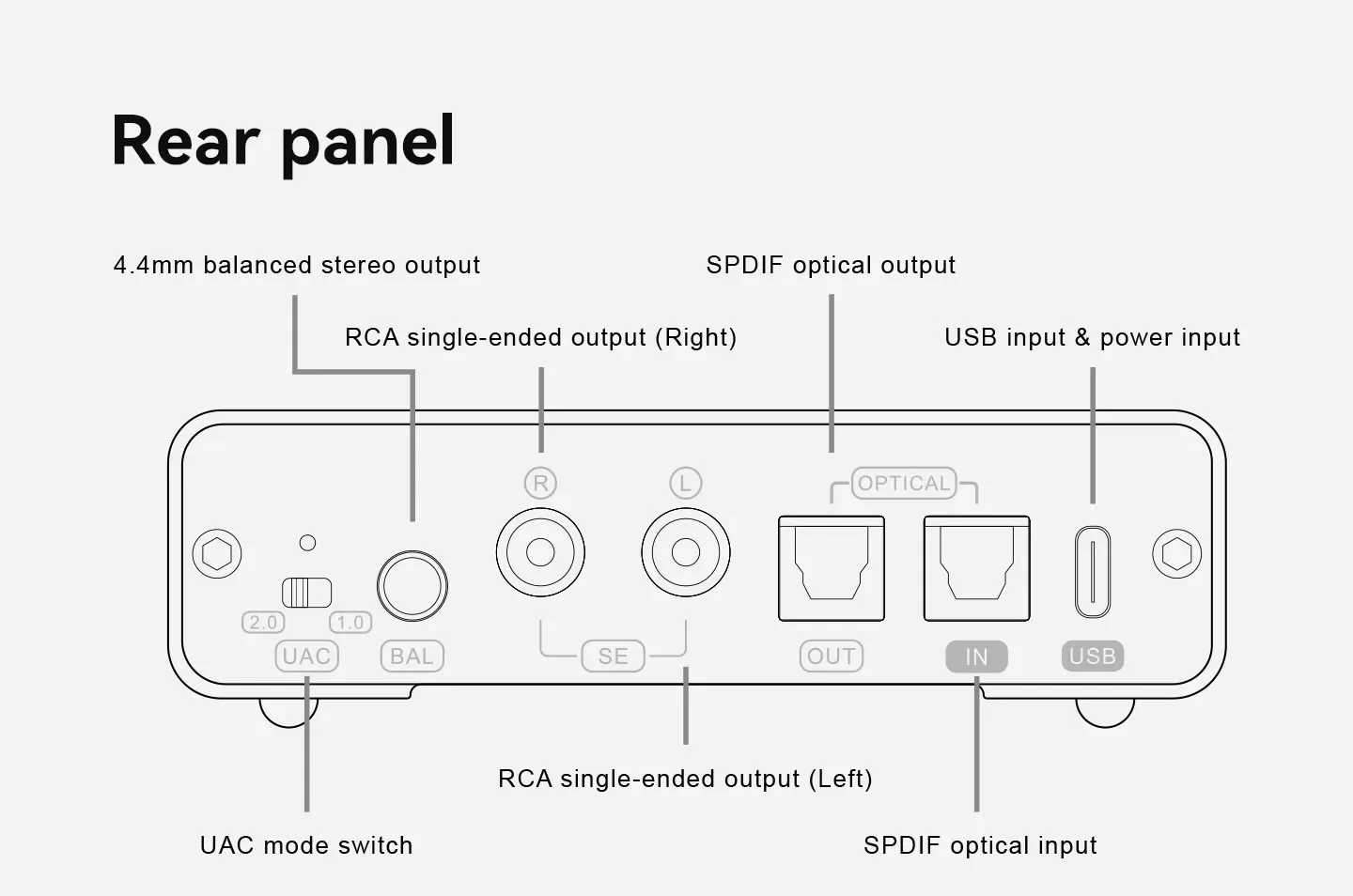

Headphone Outputs 4.4mm balanced + 3.5mm single-ended (TRRS mic supported)
Line Outputs RCA + 4.4mm balanced (preamp mode, volume controlled)
Digital Output Optical S/PDIF up to PCM 192kHz / DSD64 DoP
Output Power (Balanced) 1000mW × 2 @ 32Ω; 1000mW × 2 @ 64Ω; 230mW × 2 @ 300Ω

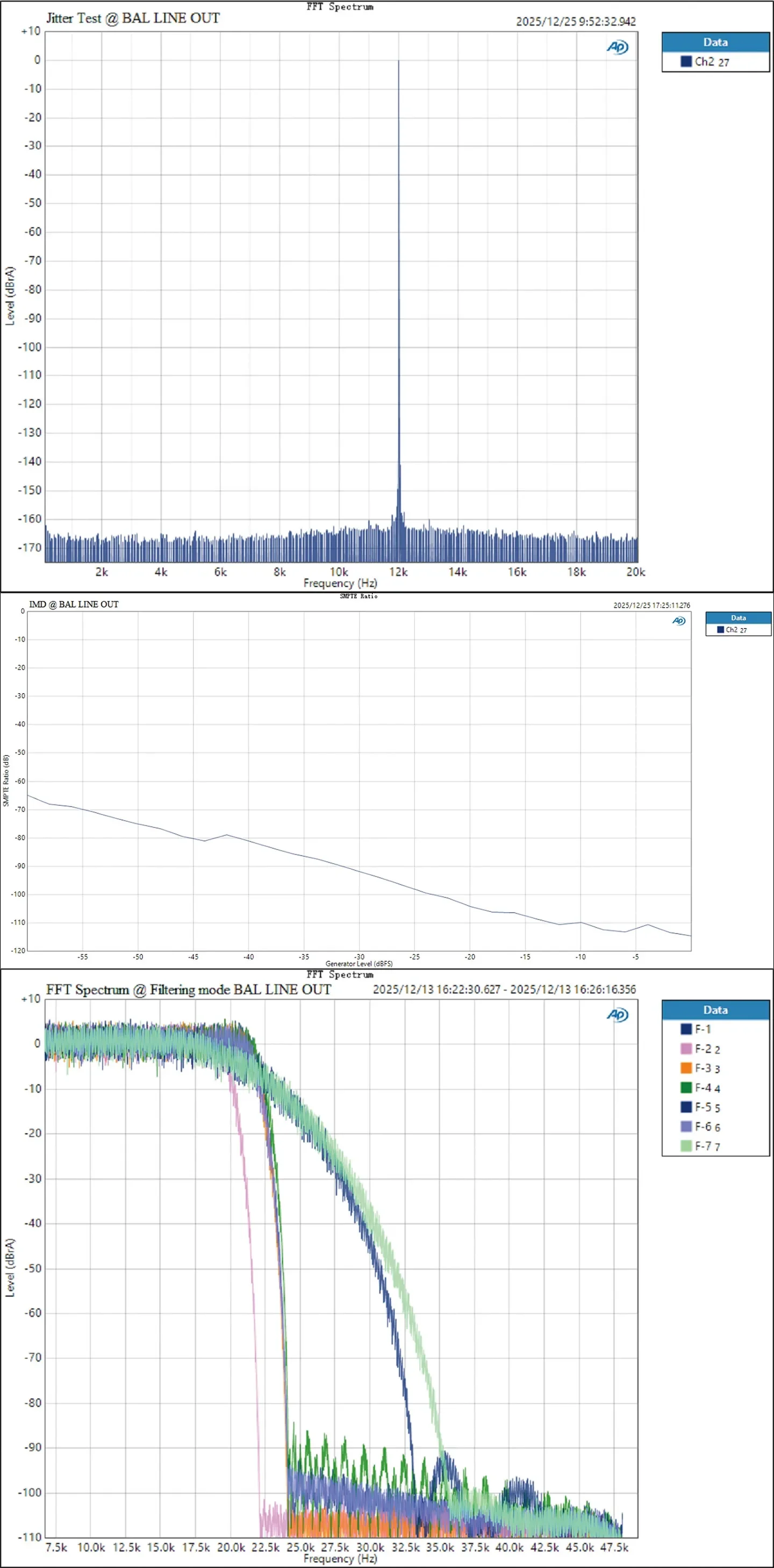

Noise Floor <0.9 µVrms

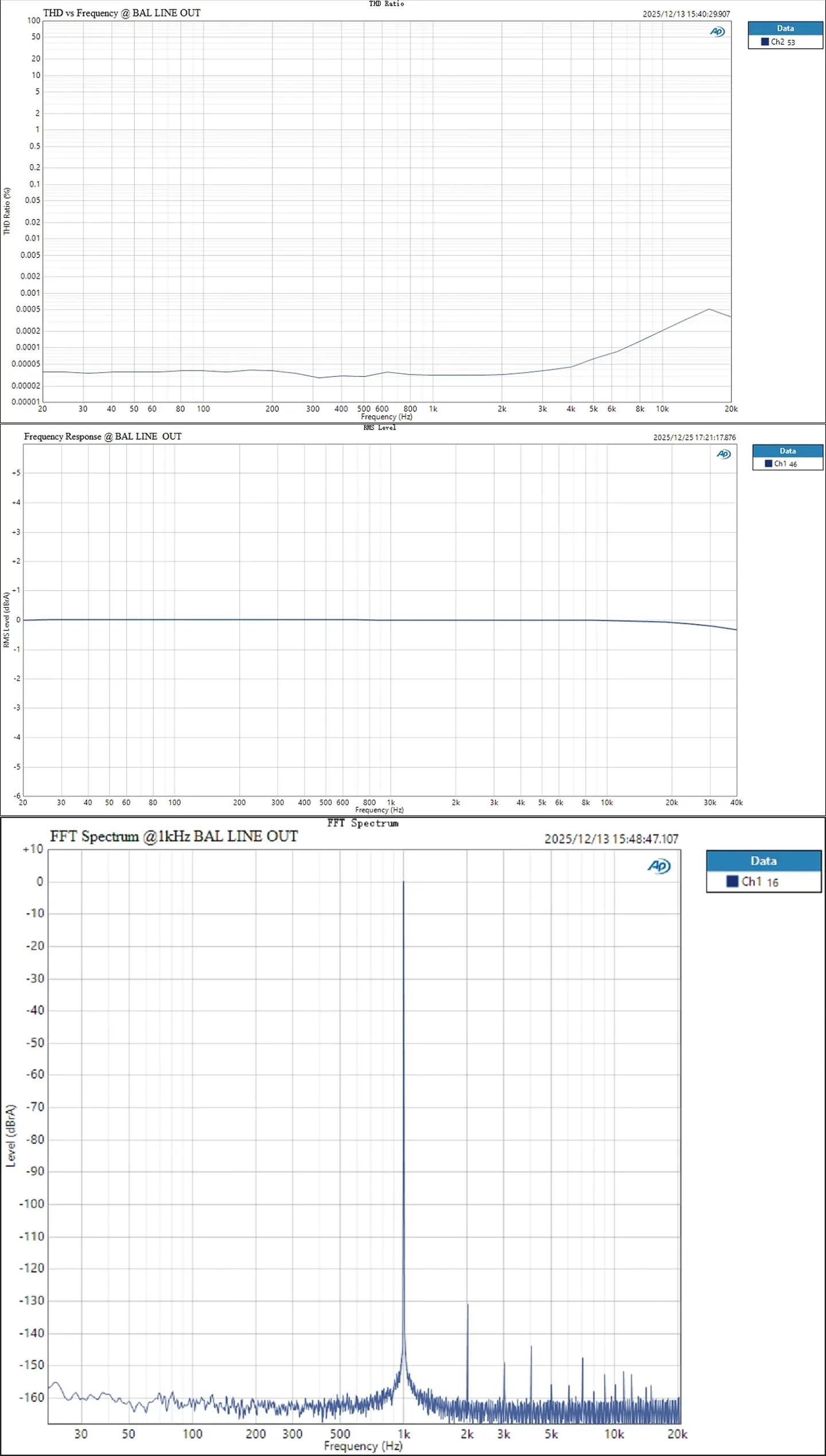

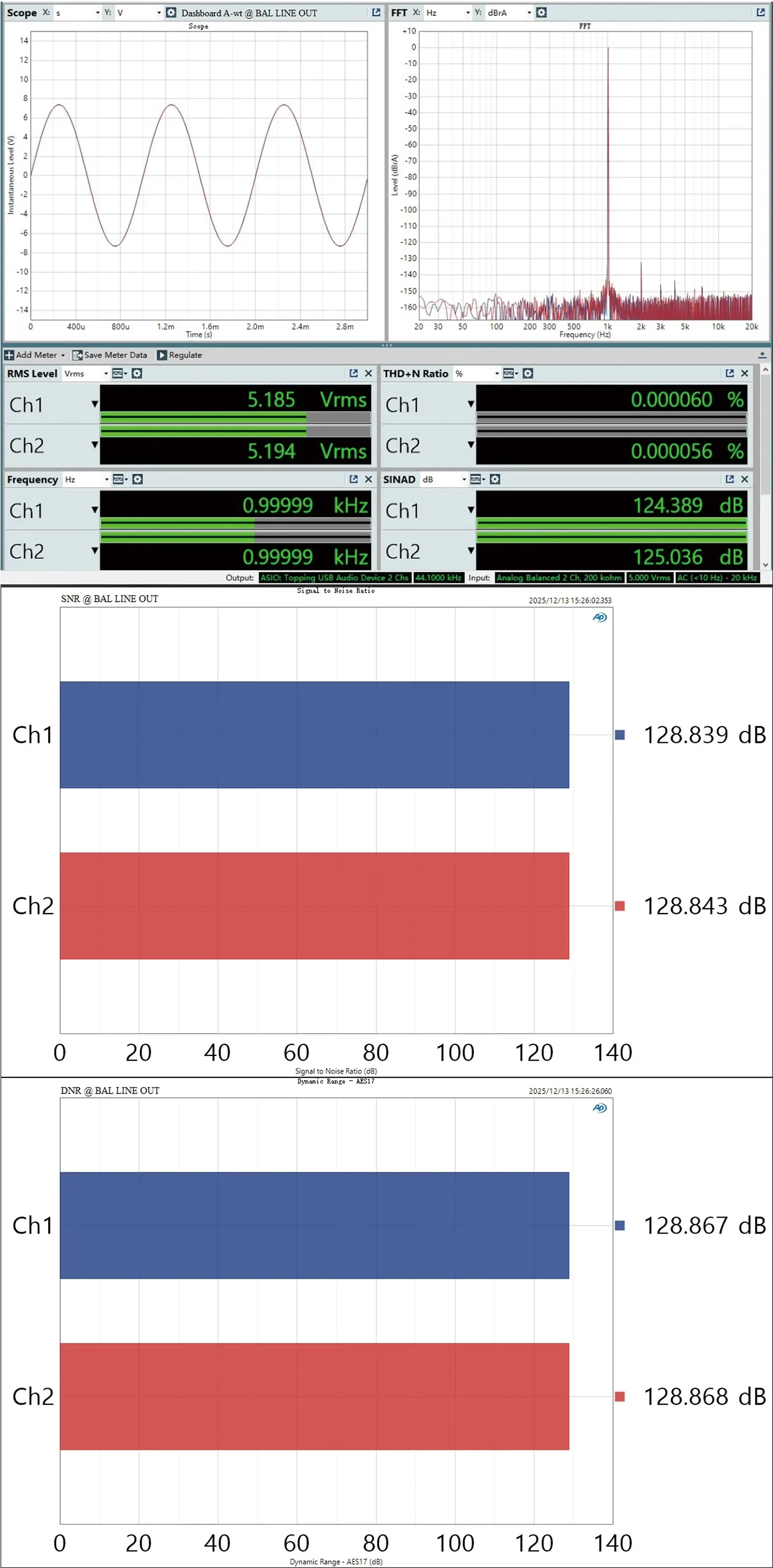

Dynamic Range 128 dB

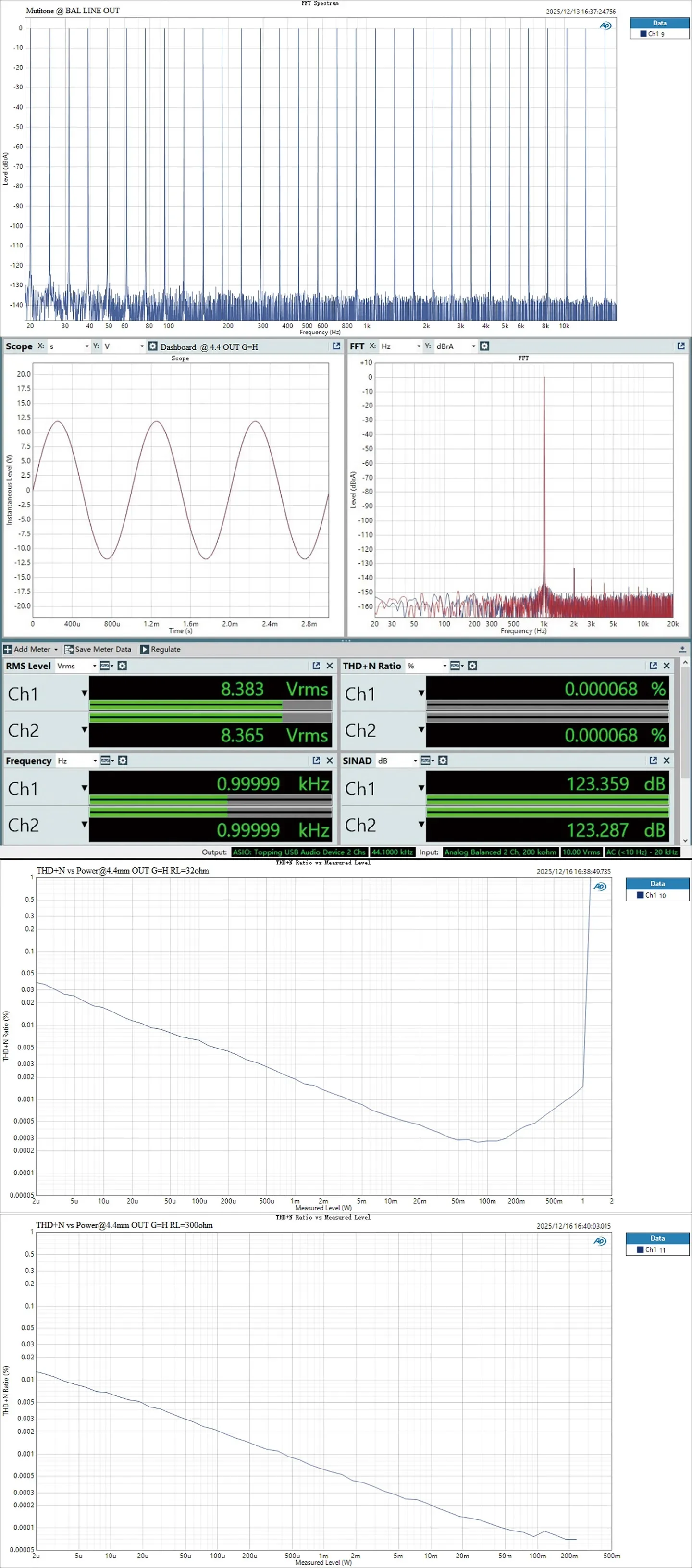

THD+N <0.00007%
USB Compatibility UAC 1.0 & UAC 2.0 (Switch & PS5 compatible)

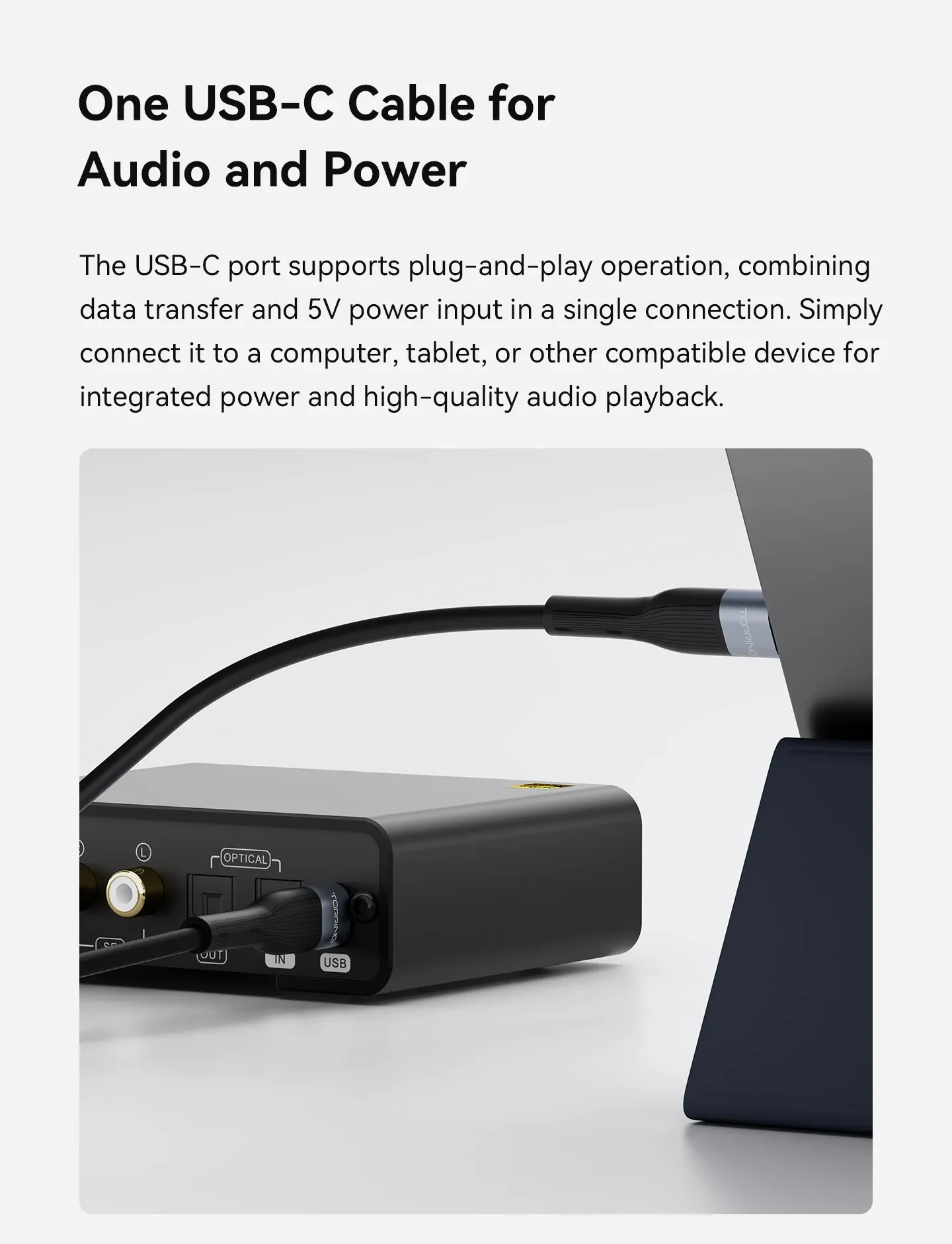

Power USB bus-powered

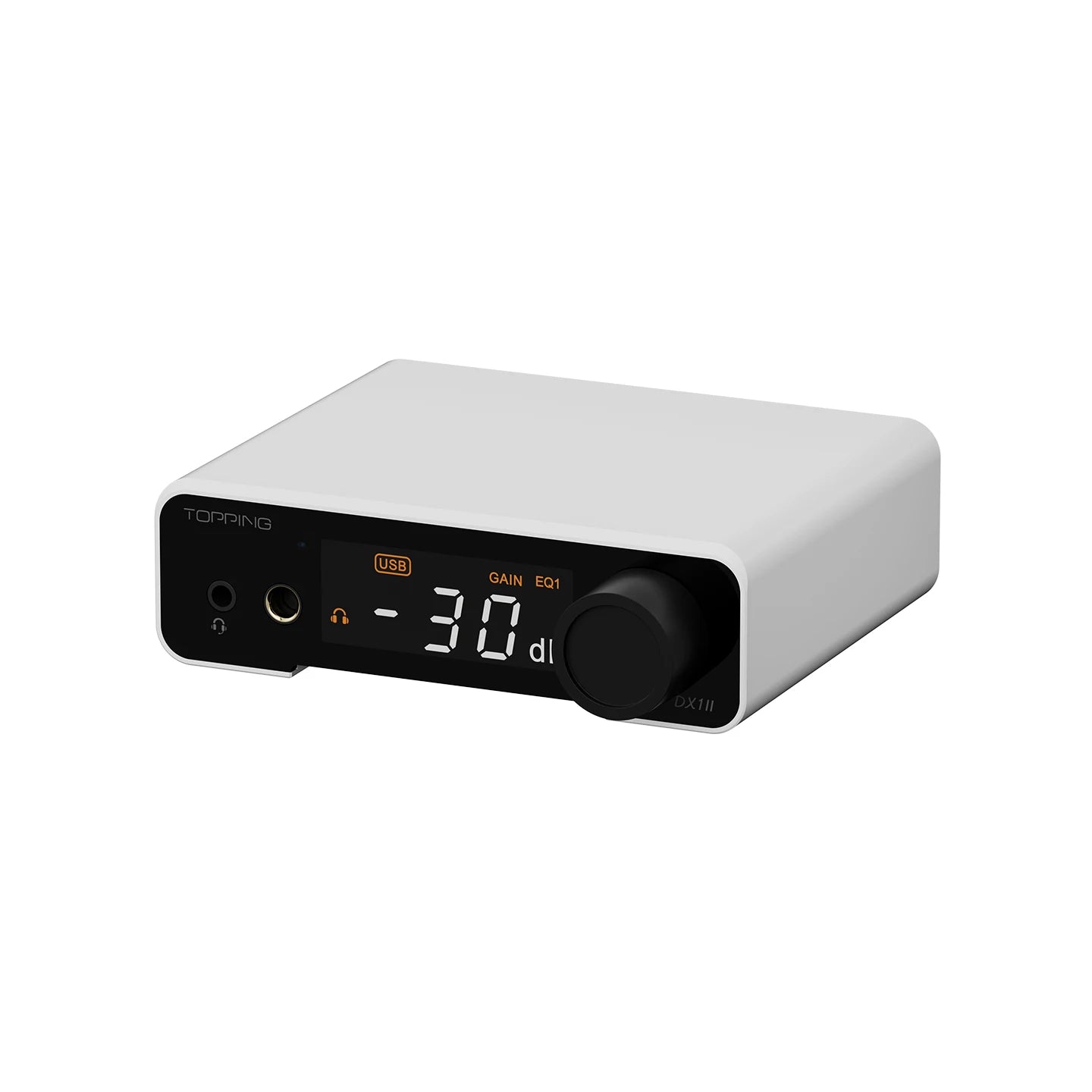

Colors Silver / Black / White
Notes: PEQ applies across all outputs. UAC 1.0 mode required for Nintendo Switch and PlayStation compatibility. TOPPING Home Web is browser-based and free. Optical input and output operate independently.
